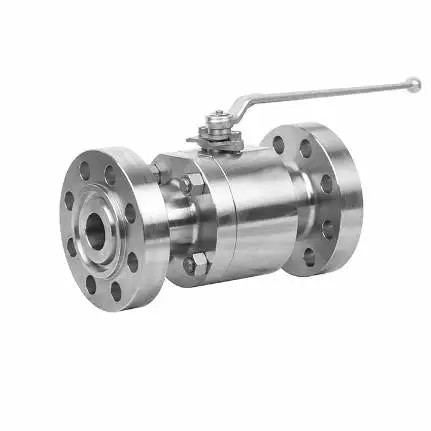

Two-pieces Floating Ball Valve, ASTM A182 F316, 1 IN, 600 LB

Two-pieces Floating Ball Valve, ASTM A182 F316, 1 IN, 600 LB

Key Specifications / Features

Model No.: WV-231220-FBV-01 Hits: 3

As a dedicated Two-pieces Floating Ball Valve Producer, we specialize in precision-engineered solutions for your fluid control needs. Our 1-inch valves, forged from high-quality Stainless Steel ASTM A182 F316, comply with API 608 standards and boast a Class 600 LB rating. Designed for DN25 and PN100 applications, these ball valves feature a Full Bore for optimal flow. Equipped with a Lever Operation mechanism for user-friendly control, our valves cater to diverse industrial applications.

Request a quote

Detail Information

On this page

Detail Infomation

Valve description:
Ball valve, Stainless steel, Floating ball, two-pieces.
Design: API 608.
Body: ASTM A182 F316
Nominal size: 1 Inch.
Nominal class: 600 LB.
End Connection: RF.
OPERATION: LEVER
Test and inspection: API 598.

Product Range:
Body material: Stainless Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: Flange (RTJ, RF), BW, SW, NPT.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -40℃ - +180℃.

Technical parameters and characteristics
Product Ball valve.
Nominal diameter 1/2 - 2 Inch.
Design temp. Down to -40℃.
Design pressure Class 150 - 2500 LB.
Material Stainless Steel.
Design standard API608.
OPERATION LEVER.
Connection end Flange (RTJ, RF), BW, SW, NPT.
Test standard API 598.
Package Plywood
Application The oil and gas industry
