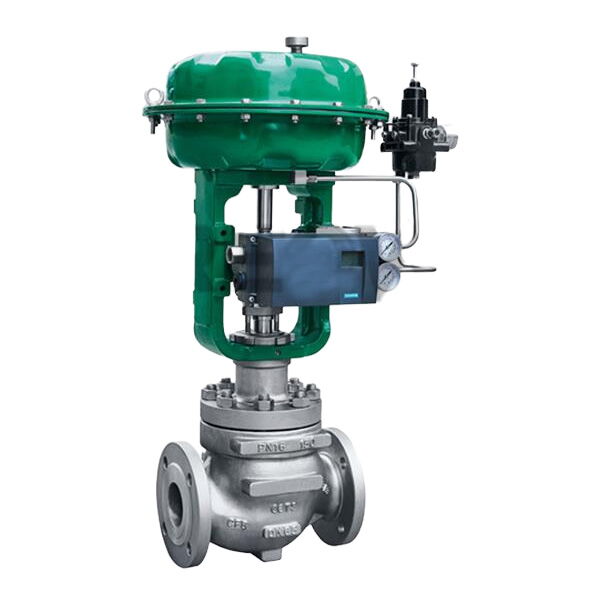

Top Guided Control Valve, Carbon Steel, 1/2-8 IN, 150-600 LB
Key Specifications / Features
Model No.: WV-240820-CTV-02 Hits: 3
This top-guided control valve producer offers a wide range of valves in sizes from 1/2 to 8 inches, with pressure classes from 150 to 600 LB. The valves are made from carbon, stainless, and alloy steel, featuring fluid pressure unbalanced trim. Available in sizes DN15 to DN200 and pressure ratings PN16 to PN100, these valves are designed for versatile industrial applications.
Request a quoteTags
Detail Information
Size: 1/2 Inch, 3/4 Inch, 1 Inch, 2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch
Pressure Rating: Class 150 LB, 300 LB, 600 LB
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
Temperature Range: -196°C-540°C
Seat Leakage：ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type：Standard,Fin-Extension,Long-Extension,Bellows,Steam Jacket
Features:
• Unbalanced Trim Design: The valve utilizes a fluid pressure unbalanced trim structure, which is top-guided for enhanced performance.
• Dynamic Stability: The design incorporates a cage-like guide sleeve that not only offers single-seated control valve characteristics but also provides the dynamic stability typical of cage-type control valves.
• Anti-Brushing and Anti-Cavitation: The guide sleeve is engineered to prevent brushing and cavitation, ensuring smooth operation and extending the valve's lifespan.
• Easy Maintenance: The quick-release trim combination facilitates easy and convenient replacement of the trims, reducing downtime and maintenance efforts.
• Robust for Challenging Conditions: Ideal for applications with small valve sizes, high pressure differentials, and high temperatures, making it suitable for handling various slurries, polymers, and high-temperature media.
Pressure Rating: Class 150 LB, 300 LB, 600 LB
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
Temperature Range: -196°C-540°C
Seat Leakage：ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type：Standard,Fin-Extension,Long-Extension,Bellows,Steam Jacket
Features:
• Unbalanced Trim Design: The valve utilizes a fluid pressure unbalanced trim structure, which is top-guided for enhanced performance.
• Dynamic Stability: The design incorporates a cage-like guide sleeve that not only offers single-seated control valve characteristics but also provides the dynamic stability typical of cage-type control valves.
• Anti-Brushing and Anti-Cavitation: The guide sleeve is engineered to prevent brushing and cavitation, ensuring smooth operation and extending the valve's lifespan.
• Easy Maintenance: The quick-release trim combination facilitates easy and convenient replacement of the trims, reducing downtime and maintenance efforts.
• Robust for Challenging Conditions: Ideal for applications with small valve sizes, high pressure differentials, and high temperatures, making it suitable for handling various slurries, polymers, and high-temperature media.
