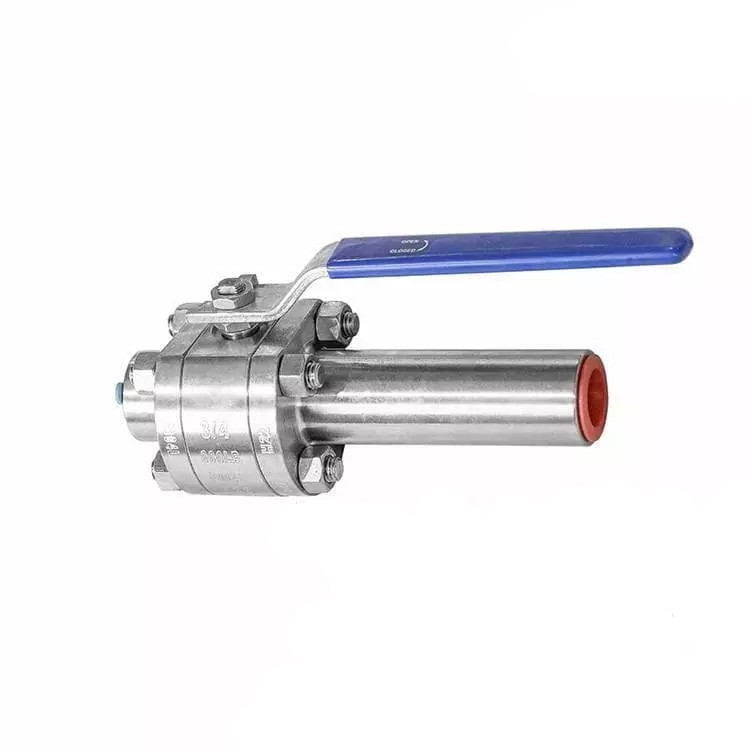

Three-piece Ball Valve, ASTM A182 F304L, 3/4 Inch, 600 LB
Key Specifications / Features
Model No.: WV-231226-FSBV-04 Hits: 13
As a reputable Three-piece Ball Valve Fabricator, we take pride in presenting a premium solution for fluid control. Crafted with precision and adherence to industry standards, our valve is engineered for excellence. As a testament to quality, the valve is constructed from ASTM A182 F304L stainless steel, ensuring corrosion resistance and durability.
Request a quoteTags
Detail Information
Size: 3/4 Inch, DN20
Pressure: Class 600 LB, PN100
Material: Stainless Steel ASTM A182 F304L
Standard: API 6D, ASME B16.34
Temperature Of Media: -29℃ To 120℃
Feature: Threaded Stainless Steel Ball Valve
Product Range
Size: 1/4 -4 Inch, DN8-DN100
Standard: API 608, GOST, DIN
Pressure: Class 150, 300, 600, 900, 1500, 2500 LB
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Connection: Thread BSP NPT, Female Thread/OD Size, threaded, Female, RF, RTJ, SW
| Technical data | |||||||
| Design | API 6D, ASME B16.34, ISO 14313, ISO 10423, ISO 17292 | ||||||
| Pressures range | ANSI 150-ANSI 2500, PN10-PN420 | ||||||
| Size range | DN15 (1/2")-DN1200 (48") | ||||||
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, etc. | ||||||
| NACE MR-01-75/NACE MR-01-03 Special Requirements | |||||||
| Face to face | API 6D, ASME B 16.10, EN 558, DIN3202 | ||||||
| Fanged RF, FF, RTJ Ends | ASME B16.5 ≤ DN600 (24") ASME B16.47 A ≥ DN650 (26") | ||||||
| BS 4504, DIN 2543-2545, EN1092 | |||||||
| Butt-Weld BW Ends | ASME B16.25, DIN 3239, BS 2080, EN 12627 | ||||||
| Temperature range | -29°C-425°C | ||||||
| Design feature | |||||||
| Construction | One, Two or Three piece body and Welded body | ||||||
| Port | Full bore and Reduced bore | ||||||
| Ball Type | Floating ball and fixed ball | ||||||
| Stem | Blowout-proof stem | ||||||
| Seat Sealing | Front-seat sealing, Back-seat sealing, bi-directional sealing | ||||||
| Valve Operation | Gear,pneumatic,Hydraulic,Electric actuators. | ||||||
| Bypasses, locking devices, extended stem, etc | |||||||
| Fire Safe | API 607, BS 6755, ISO 10497-5 | ||||||
| Other design | Anti-static design, automatic pressure relief design, emergency grease injection design, drain valve, anti-corrosion design, anti-sulfur design, etc | ||||||
| Inspection and Test | |||||||
| Visual Inspection | MSS SP-55 | ||||||
| Material Inspection |
|
||||||
| Dimension inspection | According to drawings | ||||||
| Valve Inspection and Test | API 598,DIN 3230,EN 12266,BS 5146 | ||||||
