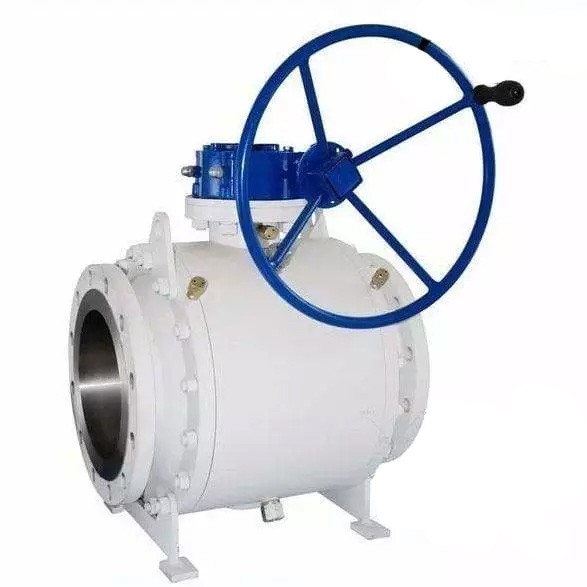

ASTM A105N Trunnion Ball Valve, API 6D, 20 Inch, 600 LB, RTJ
ASTM A105N Trunnion Ball Valve, API 6D, 20 Inch, 600 LB, RTJ

Key Specifications / Features

Model No.: WV-240108-TMBV-02
Hits: 236
Discover unparalleled fluid control capabilities with our cutting-edge ASTM A105N Trunnion Ball Valve Mill. Meticulously engineered to meet API 6D standards, this valve commands attention with a substantial 20-inch size, DN500 specifications, and a robust Class 600 LB rating, ensuring superior performance in the most demanding applications.
$0.01In stock(Price depends upon negotiation)
Request a quote

Detail Information

Design Standard: API 6D
Body Material: ASTM A105N
Nominal Diameter: 20 Inch, 500MM, DN500
Pressure: Class 600 LB, CL600, PN100
End Connection.: RTJ Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
High Light: Worm Operated, Full Bore, 2 PC side entry, 3 PC side entry, welded body and top entry design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials.

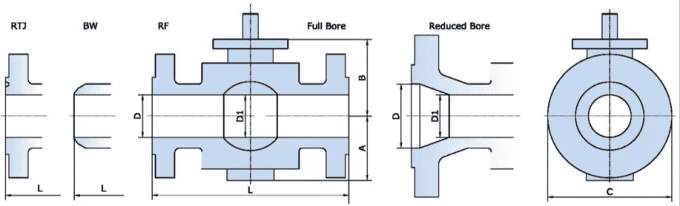

ASTM A105N Trunnion Ball Valve, API 6D, 20 Inch, 600 LB, RTJ

Size

in/mm



D



D1

 L Casting Forging Weight
RF RTJ BW A B C A B C

RF/RTJ

(lb/kg)

BW

(lb/kg)

2

50

1.93

49

1.93

49

11.5

292

11.63

295

11.5

292

3.7

95

5.7

145

6.5

165

3.3

83

5

126

6.5

165

62

28

57

26

2 ½

65

2.44

62

2.44

62

13

330

13.13

333

13

330

3.9

100

6.3

160

7.7

195

3.7

95

5.9

150

7.4

188

119

54

106

48

3

80

2.94

74

2.94

74

14

356

14.13

359

14

356

5

128

7.2

184

8.3

210

4.6

117

6.1

155

8.3

210

165

75

159

72

4

100

3.94

100

3.94

100

17

432

17.13

435

17

432

5.8

148

8.2

209

11.6

295

5.4

138

7

177

10.8

275

242

110

209

95

5

125

5

127

5

125

20

508

2012

511

20

508

6.7

170

8.2

208

13.4

340

6.5

165

8

202

13

330

407

185

352

160

6

150

5.94

150

5.94

150

22

559

22.13

562

22

559

7.7

195

9.8

250

14

355

7

178

9

228

14

355

551

250

511

232

8

200

7.91

201

7.91

201

26

660

26.13

663

26

660

9.6

245

11.1

283

16.5

420

9.6

245

10.5

267

16.5

420

914

415

727

330

10

250

9.92

252

9.92

252

31

787

31.13

790

31

787

11.4

290

12.6

320

20

510

11.9

302

12.3

312

20

510

1652

750

1564

710

12

300

11.94

303

11.94

303

33

838

33.13

841

33

635

14.2

360

15.3

390

22.8

580

13.8

350

14.5

368

22.6

573

2024

919

1808

820

14

350

13.19

334

13.19

334

35

889

35.12

891

35

889

15.6

395

16.1

410

25

635

15

380

15.6

396

24.8

630

2863

1300

2445

1110

16

400

15.19

385

15.19

385

39

991

39.13

994

39

991

16.7

425

17.2

436

28.3

720

17.3

440

17.5

444

16.7

423

3722

1690

33304

1500

18

450

17.19

436

17.19

435

43

1092

43.13

1095

430

1092

19.3

490

20.3

515

32.3

820

18.9

480

20

510

31.9

810

5176

2350

4670

2120

20

500

19.17

487

19.17

487

47

1194

47.25

1200

47

1194

22.6

575

22.7

576

36.2

920

20.6

522

20.7

525

34.4

875

6500

2950

6013

2730

22

550

21.19

538

21.19

538

51

1295

51.38

1305

51

1295

20.5

520

22

560

37.8

960

20.3

515

26.7

550

37.4

950

6938

3150

6432

2920

24

600

23.19

589

23.19

589

55

1397

55.38

1407

55

1397

23.8

605

25.2

640

41

1043

24.4

619

25.2

641

41.3

1050

10573

4800

9692

4400

26

650

24.94

633

24.94

633

57

1448

57.5

1461

57

1448

25.6

650

26.4

670

43.9

1115

25.5

640

26.2

665

43.3

1100

11718

5320

10683

4850

28

700

26.94

684

26.94

684

61

1549

61.5

1562

61

1594

26.8

680

23.3

720

48

1220

26.6

675

28.1

715

47.6

1210

17400

7900

16410

7450

30

750

28.94

735

28.94

735

65

1651

65.5

1664

65

1651

29.9

760

30.6

777

51.8

1315

29.1

740

30.6

776

51

1295

19600

8900

18612

8450

32

800

30.69

779

30.69

779

70

1778

70

1778

70.63

1794

31.1

790

31.5

790

55.5

1410

30.9

785

31.3

794

53.9

1370

20240

9200

18260

8300

34

850

32.69

830

32.69

830

76

1930

76.61

1946

76

1930

33.1

840

33.9

860

56.3

1480

32.7

830

33.5

850

57.5

1460

29295

13300

25300

11500

36

900

34.41

874

34.41

874

82

2083

82.63

2099

82

2083

35

890

36.6

930

60.9

1546

35.4

900

36.2

920

60.9

1548

30176

13700

27533

12500

40

1000

38.44

976

38.44

976

80.71

2050

 (1)

80.71

2050

37.8

960

38

965

65.6

1665

37.4

950

37.6

955

65.2

1655

31460

14300

29172

13260

42

1050

40.19

1020

40.19

1020

82.68

2100

 (1)

82.68

2100

40.9

1040

41.7

1060

72.8

1850

40.6

1030

41.3

1050

71.7

1820

36080

16400

33660

15300

48

1200

45.94

1166

45.94

1166

94.49

2400

 (1)

94.49

2400

46.9

1190

46.3

1175

78.3

1990

46.5

1180

45.9

1165

77.6

1970

49940

22700

46200

21000

56

1400

53.56

1360

53.56

1360

106.3

2700

 (1)

106.3

2700

54.5

1385

54.3

1380

93.5

2375

54.2

1376

53.5

1360

92.6

2352

81400

37000

30800

14000



ASME CLASS 600 (PN 100) REDUCE BORE

Size

in/mm



D



D1

 L Casting Forging Weight
RF RTJ BW A B C A B C

RF/RTJ

(lb/kg)

BW

(lb/kg)

2x1 ½

50x40

1.93

49

1.5

38

11.5

292

11.62

295

11.5

292

3.7

94

5.28

134

6.5

165

3.3

83

4.5

115

6.5

165

53

24

46

21

2 ½x2

65x50

2.44

62

1.93

49

13

330

13.13

333

13

330

3.7

95

5.7

145

7.5

190

3.3

83

5

126

7.5

190

95

43

64

29

3x2

80x50

2.94

74

1.93

49

14

356

14.13

359

14

356

3.7

95

5.7

145

8.3

210

3.3

83

5

126

8.3

210

93

42

86

39

4x3

100x80

3.94

100

2.94

74

17

432

17.13

435

17

432

5.4

138

7.2

184

10.8

275

5.5

138

6.1

155

10.8

275

187

85

150

68

6x4

150x100

5.94

150

3.94

100

22

559

22.13

562

22

559

7

178

8.2

208

14

355

7

178

7

177

14

355

330

150

187

85

8x6

200x150

7.94

201

5.94

150

26

660

26.13

663

26

660

8.3

210

9.8

250

16.5

420

8.3

210

9

228

16.5

420

638

290

528

240

10x8

250x200

9.94

252

7.94

201

31

787

31.13

790

31

787

9.6

245

11.1

283

20

510

9.6

245

10.5

267

20

510

1256

570

1167

530

12x10

300x250

11.94

303

9.94

252

33

838

33.13

841

33

838

11.4

290

12.6

320

22

560

11.9

302

12.3

312

22

560

1762

800

1608

730

14x10

350x250

13.19

334

9.94

252

35

889

35.13

892

35

889

11.4

290

12.6

320

23.8

605

11.9

302

12.3

312

23.8

605

2489

1130

2247

1020

16x12

400x300

15.19

385

11.94

303

39

991

39.13

994

39

991

14.1

360

15.4

390

27

685

13.8

350

14.5

368

27

685

3414

1550

2930

1330

18x14

450x350

17.19

436

13.19

334

43

1092

43.13

1095

43

1092

15.6

395

16.1

410

29.3

745

15.2

385

15.6

396

29.3

745

4405

2000

3965

1800

20x16

500x400

19.19

487

15.19

385

47

1194

47.25

1200

47

1194

16.7

425

17.2

436

32

815

17.3

440

17.5

444

32.1

815

5727

2600

5286

2400

24x20

600x500

23.19

589

19.19

487

55

1397

55.38

1407

55

1397

22.6

575

22.7

576

37

940

20.6

522

20.7

525

37

940

6500

3950

7819

3550

30x24

750x600

28.94

735

23.19

589

61

1651

65.5

1664

65

1651

23.8

605

25.2

640

42.9

1090

24.4

619

25.2

641

42.9

1090

18722

8500

17621

8000

36x30

900x750

34.41

874

28.94

735

82

2083

82.63

2099

82

2083

35

890

36.6

930

60.9

1546

35.4

900

36.2

920

60.9

1548

23965

10880

20925

9500
