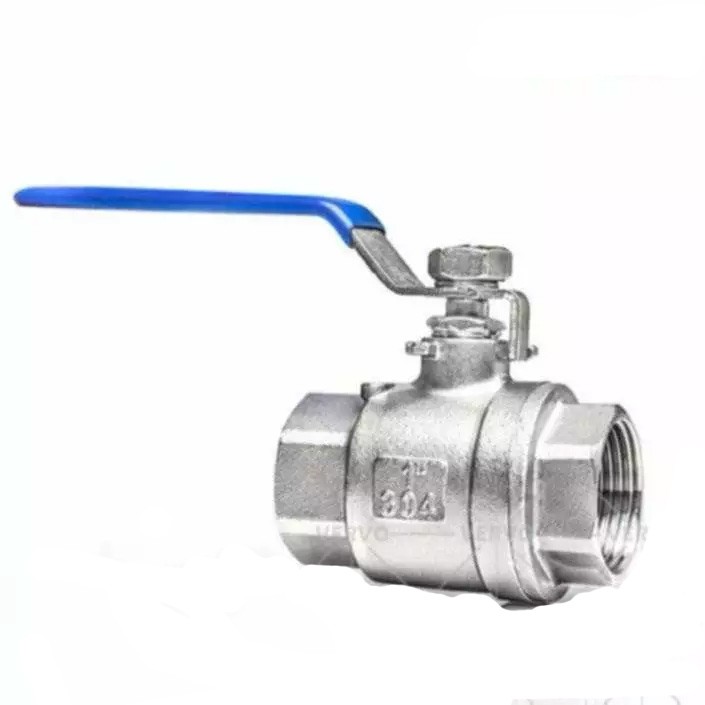

Side Entry Float Ball Valve, ASTM A182 304, 1 Inch, 600 LB
Key Specifications / Features
Model No.: WV-231226-FBV-11 Hits: 0
Welcome to our premier Side Entry Floating Ball Valve production facility, where precision engineering meets top-tier performance in fluid control. Meticulously crafted with excellence, our valve is designed to enhance your industrial processes with reliability and efficiency. Our Side Entry Floating Ball Valve, constructed from high-quality ASTM A182 304 stainless steel, ensures corrosion resistance and durability.
Request a quoteTags:
Detail Information
Name: 2 Piece Ball Valve
Size: 1 Inch, DN25
Pressure: Class 150 LB, 300 LB, 600 LB
Material: SS 304
Standard: API 608, GOST, DIN
Temperature Of Media: -29℃ To 120℃
Feature: Side Entry Floating Ball Valve, Fire Safe, internal thread ball valve
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure Rating: 1000 WOG, 2000 WOG
Main Materials: SS 201, SS 304, SS 316, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M
Applicable Medium: Water, Oil, Gas, Causticity Medium
Applicable Temperature: -20℃ - 150℃
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Connection: Thread BSP NPT, Female Thread, OD Size, threaded, Female, RF, RTJ, SW
Main Material
Size: 1 Inch, DN25
Pressure: Class 150 LB, 300 LB, 600 LB
Material: SS 304
Standard: API 608, GOST, DIN
Temperature Of Media: -29℃ To 120℃
Feature: Side Entry Floating Ball Valve, Fire Safe, internal thread ball valve
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure Rating: 1000 WOG, 2000 WOG
Main Materials: SS 201, SS 304, SS 316, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M
Applicable Medium: Water, Oil, Gas, Causticity Medium
Applicable Temperature: -20℃ - 150℃
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Connection: Thread BSP NPT, Female Thread, OD Size, threaded, Female, RF, RTJ, SW
Main Material
| ITEM | PART | MATERIAL | ||
| 1 | Body | CF8M | CF8 | WCB |
| 2 | Ball Seat | PTFE/RPTFE/PPL | ||
| 3 | Ball | 316 | 304 | 201 |
| 4 | Body Gasket | PTFE | ||
| 5 | Cap | CF8M | CF8 | WCB |
| 6 | Stem | 316 | 304 | 201 |
| 7 | Thrust Washer | PTFE | ||
| 8 | Stem Packing | PTFE | ||
| 9 | Gland Nut | 304 | ||
| 10 | Handle | 201 | ||
| 11 | Spring Washer | 304 | ||
| 12 | Nut | 304 | ||
| 13 | Locking Device | 201 | ||
| 14 | Handle Cover | Plastic | ||
