Electric control valves are automated devices designed to regulate liquid and gas flow in a wide range of industrial applications. By using electrical current to open or close ports, these valves can precisely and automatically control material flow in pipes, boilers, cooling systems, and other processes. This article delves into the functions, types, advantages and disadvantages of electric control valves, providing valuable insights into how to select the best valve for your specific needs.

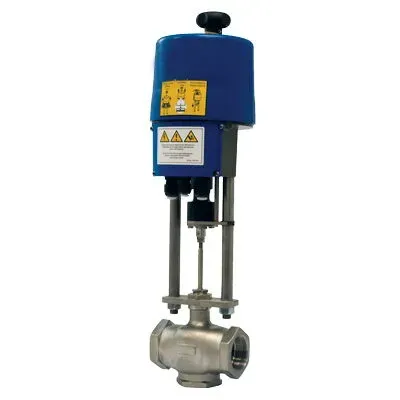

What is an Electric Control Valve?
An electric control valve is a valve that uses electrical signals to control the opening and closing of the valve. These valves are used in a variety of industries, including oil and gas, chemical processing, food and beverage production, power generation and water treatment. The electric control valve can be used as an on/off valve or a regulating valve upon request. The on/off electric control valve operates in a fully open or fully closed state, while the modulated electric control valve can be adjusted to a variety of positions to achieve precise control of the flow rate.
How Does the Electric Control Valve Work?
Electric control valves are equipped with electric actuators that respond to electrical signals from the controller. Controllers can range from simple on/off switches to complex devices using algorithms for fluid flow management. These valves control the flow of various fluids, such as water, air, steam, and oil. An actuator driven by an electrical signal operates the valve position to regulate the flow rate, providing precise and automated control of the process.
Type of Electric Control Valve
Solenoid Valve
The solenoid valve controls the opening and closing of the valve through the magnetic field generated by the solenoid coil. When the current passes through the coil, the magnetic field attracts the iron core of the valve, which opens or closes the valve. Solenoid valves are often used in applications requiring quick on-off control, such as automatic doors, pneumatic systems, water treatment systems, etc. It is fast in response, simple in structure, and low in maintenance costs, but may be limited in high-pressure or high-flow applications.
Proportional Valve
The proportional valve controls the opening of the valve through electronic signals to achieve continuous flow regulation. The opening of the valve is proportional to the input signal, providing precise flow control. It is suitable for applications where flow regulation is required, such as chemical process control, medical equipment, food processing, etc. Proportional valves can provide smooth flow changes, but may require more complex control systems and higher costs.
Electric Ball Valve and Electric Butterfly Valve
These valves open and close by controlling the rotation of the valve through an electric actuator. The electric ball valve controls the flow channel by rotating the ball, while the electric butterfly valve is controlled by rotating the butterfly plate. Suitable for large flow control applications, such as oil and gas transmission, water treatment, heating systems, etc. Electric ball valves and butterfly valves are easy to install and maintain, suitable for high-flow applications, but may not be as good as other types of valves in low-flow or high-precision control situations.
Advantages of Electric Control Valve
High Accuracy and Repeatability
Electric control valves enable precise flow control, which is important for applications that require tight control of process parameters. Repeatability ensures the consistency of each operation, which allows the experimental and production process to remain stable.
Security
By reducing manual intervention, electric control valves reduce operating risks, especially in hazardous or toxic environments. The electric control valve can be equipped with a complete safety system, such as an emergency shutdown function, to further improve safety.
Maintenance
Electric control valves have fewer moving parts, reducing the possibility of wear and failure, thereby reducing maintenance needs and costs. Some electric control valves also have self-diagnostic functions to detect and report potential problems for timely maintenance.
Lower Operating Costs
Electric control valves are generally more energy efficient, especially in applications that require frequent switching or flow regulation. By reducing maintenance and increasing efficiency, electric control valves help reduce overall operating costs.
Disadvantages of Electric Control Valve
Sensitivity to Electrical Interference
Electric control valves may be subject to electromagnetic interference, affecting their normal work, especially in an environment with dense electrical equipment, shielding and grounding measures need to be taken to reduce interference.
Voltage Sensitivity
Fluctuations in voltage can affect the performance of the electric control valve, especially in areas with unstable voltage, and it may be necessary to install a regulator or use voltage protection equipment to ensure the stable operation of the valve.
Pressure Requirements
Electric control valves may require a certain amount of pressure to work effectively, which can be a limiting factor in low-pressure systems. It is necessary to consider the working pressure of the system and the working pressure requirements of the valve to ensure a match.
High Initial Cost
The initial investment in electric control valves can be higher than manual or pneumatic valves, especially where complex control systems are required. Despite the higher initial cost, electric control valves may be more cost-effective in some applications when considering long-term operating costs and maintenance costs.
Conclusion
Electric control valves are important components in systems that require accurate and automatic flow regulation. They are used in a variety of industries, from industrial operations and manufacturing plants to power plants and water treatment facilities. By providing reliable and accurate performance, electric control valves ensure the consistent operation of various processes. When choosing to use an electric control valve, consider factors such as the required accuracy, potential electrical interference, voltage stability, and pressure conditions to choose the valve that best suits your specific application.
