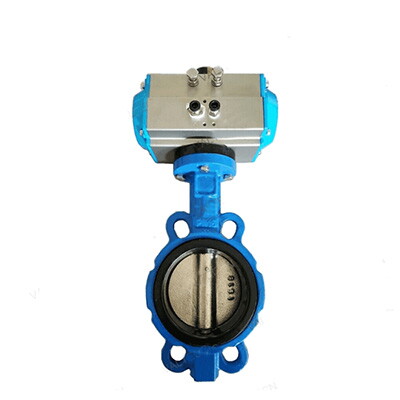

Pneumatic Actuated Butterfly Valve, ASTM A216 WCB, 2-24 Inch
Key Specifications / Features
Model No.: WV-240229-CBTV-05 Hits: 10
Leading provider of pneumatic actuated butterfly valves crafted from carbon steel ASTM A216 WCB. Available in sizes ranging from 2 to 24 inches (DN50 to DN600), with Class 150-300 LB rating and PN20-PN50 pressure rating. Designed with wafer ends for easy installation, featuring EPDM and NBR seats for reliable sealing performance.
Request a quoteTags
Detail Information
Design: API 609
Body material: Cast ASTM A216 WCB
Disc material: Ductile iron, Stainless steel, Duplex steel, Aluminum bronze
Seat material: EPDM, NBR, PTFE, FKM (Offering Resilient Replaceable Seat)
Size: 2-24 Inch, DN50-DN600
Operated: Pneumatic Actuator, Hand Lever, Worm Gear, Electric actuator, Chainwheel
Conection end: Wafer type
Working pressure: PN16, Class 150 LB
Body material: Cast ASTM A216 WCB
Disc material: Ductile iron, Stainless steel, Duplex steel, Aluminum bronze
Seat material: EPDM, NBR, PTFE, FKM (Offering Resilient Replaceable Seat)
Size: 2-24 Inch, DN50-DN600
Operated: Pneumatic Actuator, Hand Lever, Worm Gear, Electric actuator, Chainwheel
Conection end: Wafer type
Working pressure: PN16, Class 150 LB
