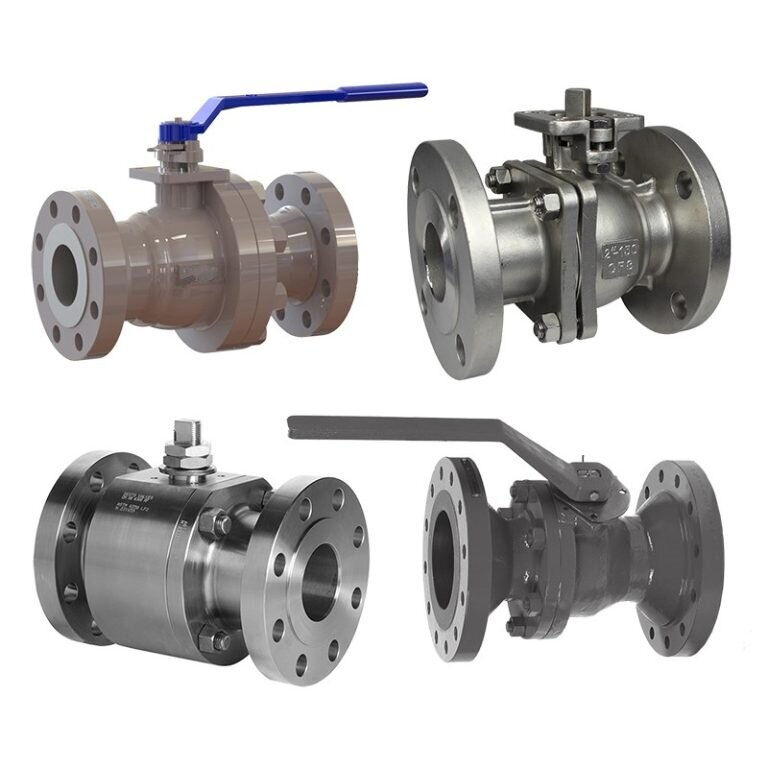

In the realm of industrial fluid handling, controlling the flow of liquids, gases, or slurries is critical for efficiency, safety, and reliability. Among the wide range of valves used in pipelines, floating ball valves stand out for their simplicity, versatility, and effective sealing capabilities. These valves are a type of quarter-turn valve, meaning the handle or actuator only needs to rotate 90 degrees to either fully open or fully close the flow path.

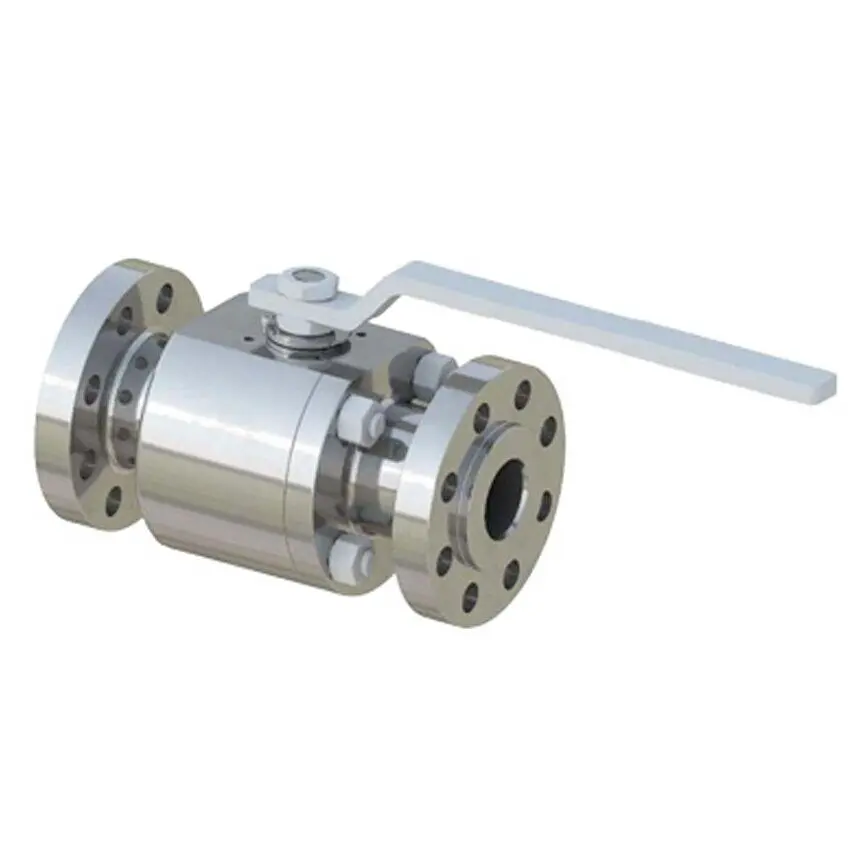

At the heart of a floating ball valve is a hollow, spherical ball with a hole through its center. This ball sits between two seats, and the pressure of the fluid itself helps press the ball against the downstream seat, creating a tight seal. When the valve’s handle or actuator is turned, the ball rotates, either aligning its hollow section with the pipeline for fluid flow or turning perpendicular to block flow entirely.
Floating ball valves are valued not only for their flow control capabilities, but also for their ability to provide reliable sealing, minimize leaks, and ensure a tight shutoff. These valves are particularly well-suited for low to medium-pressure applications but are designed to operate in a variety of industrial conditions.
The popularity of floating ball valves stems from a combination of mechanical simplicity, affordability, and reliable performance. Some of the most notable features include:
Simple Construction – Floating ball valves have fewer moving parts than many other valve types. This simplicity reduces manufacturing complexity, lowers maintenance needs, and decreases the likelihood of mechanical failure.
Self-Sealing Mechanism – As fluid pressure increases, the force pushes the ball against the downstream seat, enhancing the valve’s sealing performance. This makes the floating ball valve ideal for applications requiring tight shutoff under varying pressures.
Cost-Effective Design – Compared with trunnion-mounted ball valves, floating ball valves are generally 30–50% less expensive, making them a practical choice for many industrial and commercial applications.
Compact and Lightweight – Their design allows for easy installation in tight spaces or compact piping systems, without requiring extensive structural support.
Optimal Performance Range – Most floating ball valves perform best in sizes up to 6 inches in diameter and pressure ratings up to 1,480 PSI (Class 600), though larger designs are available for specific industrial requirements.
Floating ball valves are versatile and find use across multiple industries due to their ability to efficiently control, isolate, and regulate fluid flow.
Floating ball valves are a common choice in industrial piping systems, where controlling the flow of water, oil, chemicals, or gases is crucial. Their compact size and reliable sealing make them ideal for pipelines where space is limited, or where frequent valve operation is necessary.
Despite their relatively simple design, floating ball valves can handle high-pressure fluids, provided they are sized and specified correctly. The self-sealing nature of the valve ensures that even under high-pressure conditions, fluid leakage is minimized.
Floating ball valves can be constructed from steel, iron, bronze, PVC, and other materials. This allows them to be used in diverse environments, ranging from corrosive chemical plants to water treatment systems.
Floating ball valves can be operated manually via lever handles, or automatically through gear, pneumatic, or hydraulic actuators. Some systems use a combination of these methods for precise flow control or remote operation, making floating ball valves suitable for automated industrial processes.
One of the advantages of floating ball valves is their small footprint. Their compact design allows them to fit in tight spaces or areas with limited flow volume. They are often preferred where pipeline layouts are complex or where space constraints exist.
Floating ball valves are relatively easy to maintain, especially in smaller pipelines. The simplicity of their construction allows for straightforward disassembly and cleaning. Their one-piece ball and stem design further contributes to easy installation, lower cost, and minimal maintenance requirements.
The materials used in manufacturing floating ball valves directly influence their durability, corrosion resistance, and performance under extreme conditions. Choosing the correct materials is essential for ensuring a valve’s long-term functionality and safety.
The ball and seat are the primary sealing components in a floating ball valve. High-quality materials are critical because these components endure constant contact with fluid flow and pressure. Common materials include:
Stainless Steel – Offers excellent corrosion resistance and durability, ideal for water, oil, and chemical applications.
Alloy Steel – Provides enhanced strength for high-pressure or high-temperature applications.
Special Alloys (Hastelloy, Inconel) – Designed for highly corrosive or aggressive fluids, ensuring long-term performance.
The combination of hardness, dimensional stability, and chemical resistance ensures a reliable seal and minimizes wear over time.
The body and bonnet house the internal components of the valve and provide structural integrity. Common materials include:
Carbon Steel – Suitable for general industrial applications with moderate pressure and temperature.
Stainless Steel – Offers superior corrosion resistance, ideal for aggressive environments or high-purity applications.
Cast Iron – Often used for lower-pressure water or gas pipelines where cost savings are important.
The choice of material depends on the application’s pressure, temperature, and chemical exposure requirements.
Gaskets and packing prevent leakage around the valve stem and between the body and bonnet. Popular choices include:
Graphite – Provides excellent temperature resistance and durability.
PTFE (Polytetrafluoroethylene) – Chemically inert and resistant to most corrosive substances.
Elastomers – Used in applications requiring flexibility and resilience under varying temperatures and pressures.
Selecting the correct gasket and packing material is crucial to maintaining a leak-free operation throughout the valve’s service life.
Floating ball valves offer several advantages over other valve types, particularly in specific industrial applications:
Tight Shutoff – The self-sealing mechanism ensures minimal leakage, even in high-pressure systems.
Cost Efficiency – Fewer parts and simpler construction reduce manufacturing and maintenance costs.
Compact Design – Lightweight and small footprint allows installation in confined spaces, reducing overall pipeline infrastructure requirements.
Versatility – Suitable for a wide range of fluids, pressures, and temperatures, as well as various actuation methods.
Ease of Maintenance – The straightforward construction allows for quick disassembly, inspection, and replacement of internal components.
Reliability in Automation – Compatible with manual, pneumatic, hydraulic, and electric actuators, making them ideal for automated control systems in industrial pipelines.
While floating ball valves offer many benefits, they also have some limitations:
Size and Pressure Limitations – Most floating ball valves are ideal for diameters up to 6 inches and pressures up to Class 600 (1,480 PSI). Larger or higher-pressure applications may require trunnion-mounted ball valves.
High Torque at Larger Sizes – As valve size and pressure increase, more torque is required to operate the valve due to the fluid pressure acting on the ball.
Not Ideal for Abrasive Fluids – Floating ball valves may experience accelerated wear if used with abrasive or slurry-type fluids.
Despite these limitations, floating ball valves remain a cost-effective and reliable solution for many industrial and commercial fluid control applications.
When choosing a floating ball valve, several factors must be evaluated to ensure optimal performance:
Fluid Type and Compatibility – The materials of the ball, seat, body, and packing must be compatible with the fluid’s chemical composition.
Pressure and Temperature Ratings – Ensure that the valve’s rating matches or exceeds the system’s operating conditions.
Valve Size – Select a valve diameter suitable for the desired flow rate and pipeline size.
Actuation Method – Consider whether manual, pneumatic, hydraulic, or electric actuation is required based on system automation needs.
Maintenance Requirements – Evaluate how often the valve may need servicing and whether ease of disassembly is important for the application.
Installation Space – Confirm that the valve’s compact design fits the available space in the piping system.
Floating ball valves are a fundamental component in modern piping systems, offering a unique combination of simplicity, reliability, and cost-effectiveness. Their self-sealing design, compact construction, and versatile material options make them suitable for a wide range of applications, from industrial pipelines to chemical processing systems.
By carefully selecting the correct material, size, and actuation method, floating ball valves can provide long-lasting, leak-free service even under challenging operating conditions. While they have limitations in terms of size and pressure, their affordability, ease of installation, and reliable performance make them an excellent choice for many fluid control applications.
As industries continue to prioritize efficiency, safety, and compact system design, floating ball valves will remain a trusted solution for engineers, operators, and maintenance professionals seeking robust and cost-effective pipeline control.
