Understanding Globe Check Valves: Dual Functionality for Critical Flow Control

In the complex world of fluid control systems, ensuring unidirectional flow while maintaining precise regulation is crucial to operational safety and efficiency. Enter the globe check valve—a hybrid valve that masterfully combines the core functions of a globe valve and a check valve. This innovative solution not only prevents backflow but also offers excellent flow modulation capabilities, making it indispensable across a range of demanding industries.

Globe check valves are particularly valued in sectors such as power generation, oil and gas, water and wastewater treatment, and HVAC systems, where systems frequently operate under high pressure and require dependable backflow protection and controllable flow characteristics. Their design makes them ideal for situations where fluid flow direction must be enforced, and where delicate throttling or fine flow adjustments are required without compromising safety.

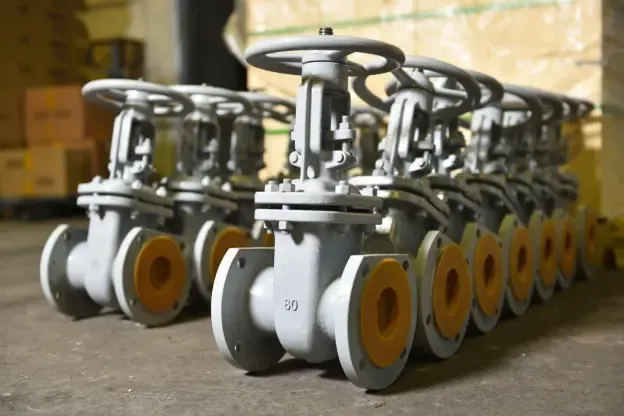

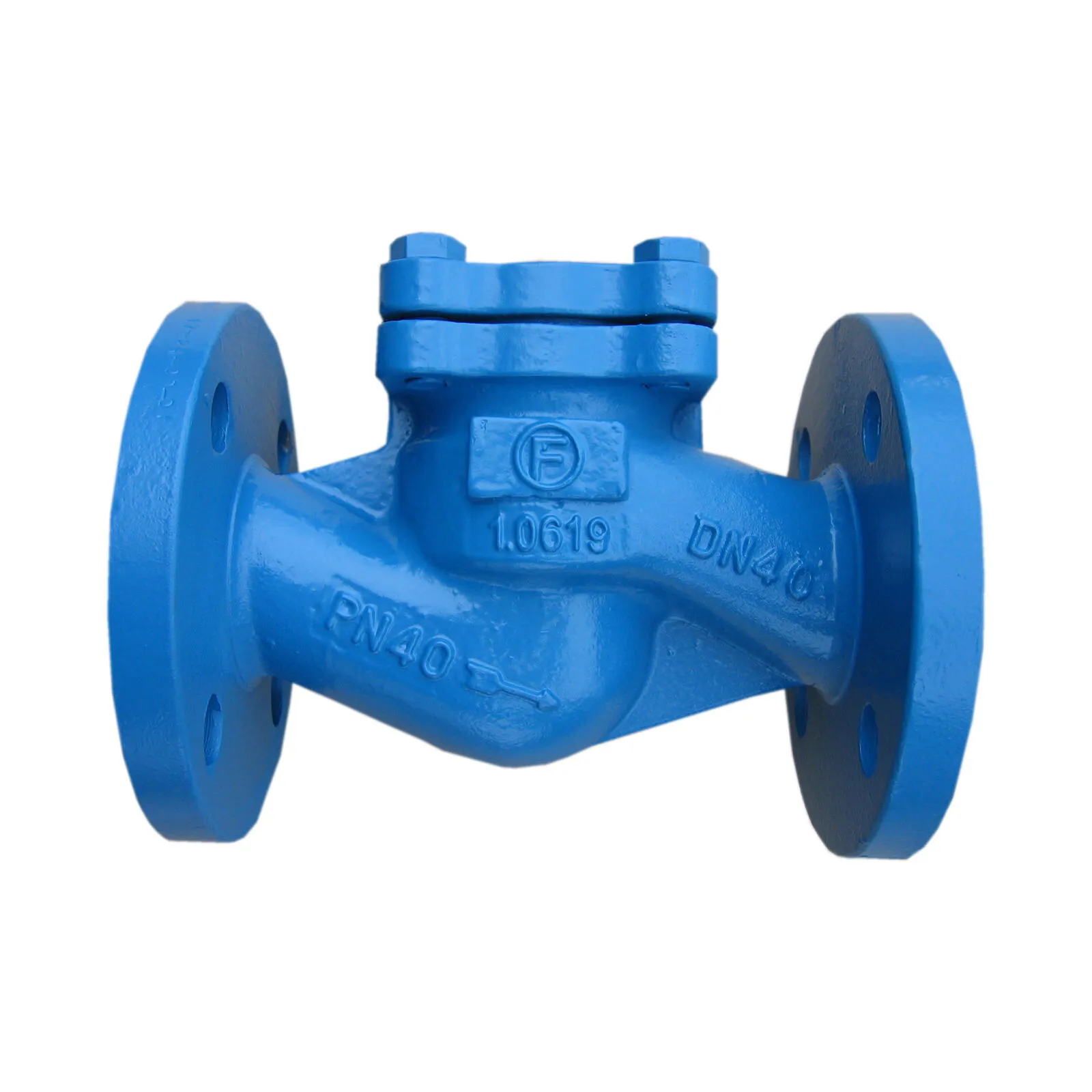

At the heart of the globe check valve's function lies a globe-shaped body containing a movable disc. Unlike conventional check valves that may use a swing or lift mechanism without throttling ability, globe check valves use a spring-loaded or gravity-assisted disc that moves in response to the fluid's pressure direction.

When the fluid flows in the intended direction, pressure from the fluid lifts the disc off the valve seat, creating a clear path for flow. However, when the flow reverses or stops, the disc automatically reseats, closing the valve and halting any potential backflow.

This self-activating feature means no manual operation is needed, and the valve provides an automatic line of defense against reverse flow, which can cause contamination, equipment damage, or system malfunction.

The globe valve component adds another layer of functionality—flow regulation. By partially opening or closing the valve, operators can precisely control flow rates. This is particularly useful in systems where maintaining consistent pressure or flow volume is critical, such as in chemical dosing, thermal systems, or turbine cooling loops.

Globe check valves offer several operational advantages over standard check valves or globe valves alone:

Dual Functionality: They serve both as a check valve and a throttling valve, reducing the need for multiple components in a system.

Improved Flow Control: Their design allows for finer regulation of flow compared to swing or lift check valves, which are typically binary (open/closed).

Reduced Water Hammer: The controlled closing of the disc helps minimize pressure spikes caused by sudden valve closure—a phenomenon known as water hammer.

Compact Design: Integrating two functions into one valve saves space and simplifies pipeline layout and maintenance.

Extended Equipment Life: By preventing backflow and regulating flow, globe check valves protect pumps, compressors, and upstream components from stress and potential damage.

The performance and longevity of globe check valves are highly dependent on the materials used in their construction. Selecting the appropriate materials requires a thorough understanding of the application, operating pressures, temperatures, and the nature of the fluid being handled.

Here are the most common materials and their typical applications:

Carbon Steel: Suitable for non-corrosive fluids and high-pressure steam applications. Commonly used in power plants and industrial process lines.

Stainless Steel (304, 316, CF8M): Ideal for corrosive environments or food-grade applications due to their excellent resistance to rust and chemical attack. Frequently used in chemical processing, pharmaceuticals, and water treatment.

Bronze/Brass: Often found in HVAC and marine systems for their resistance to saltwater and smooth operation.

Cast Iron or Ductile Iron: Economical choices for low-pressure water systems or general-purpose fluid handling. However, these are not recommended for corrosive or high-temperature environments.

Alloy Steels (WC6, WC9, C5, C12): Designed for high-temperature and high-pressure service, particularly in petrochemical and power generation systems.

In addition to body materials, the seat and disc materials must also be chosen carefully. For example, hard-faced discs and seats (e.g., with Stellite or tungsten carbide) improve wear resistance in abrasive service, while elastomer-lined discs may be used for better sealing in low-pressure applications.

Globe check valves come in various designs to suit different installation and operating conditions:

Straight Pattern (T-body): Provides minimal pressure loss and is easy to clean, making it a common choice for clean fluids and general-purpose use.

Angle Pattern: Designed for 90-degree changes in direction, useful in tight installations and where pressure drop must be minimized.

Y-pattern (Oblique): Offers a smoother flow path, resulting in lower pressure drops than straight-pattern valves. Often used in steam lines or systems with minimal flow resistance requirements.

Flanged, Threaded, or Welded Ends: Connection type depends on system requirements—flanged for easy maintenance, threaded for smaller sizes, and welded for high-pressure, leak-proof installations.

Some advanced models also include features such as:

Spring-loaded Discs for faster closure

Soft Seats for bubble-tight sealing

Position Indicators to show disc position

Drain Plugs for maintenance

Proper installation of a globe check valve is critical for ensuring long-term performance and avoiding operational issues. Here are some best practices:

Flow Direction: Always install the valve with the arrow pointing in the direction of desired flow. Incorrect orientation can render the valve ineffective.

Support: Larger valves should be adequately supported to prevent strain on piping and valve body.

Clean Piping: Ensure the pipeline is free of debris before installation to prevent seat damage and sealing issues.

Accessibility: Install valves where they can be easily inspected or serviced, especially in critical applications.

Horizontal vs. Vertical Orientation: While many globe check valves are designed for horizontal installation, some are rated for vertical use with upward flow. Always check the manufacturer’s specifications.

The globe check valve’s unique combination of throttling and backflow prevention makes it invaluable across a wide array of industries:

Used to regulate and protect high-pressure steam and condensate systems, where controlled flow and backflow prevention are both mission-critical.

Essential for pipeline systems, compressor stations, and refining processes where fluid integrity and flow control are crucial.

Utilized in pump stations and treatment plants to prevent reverse flow and reduce shock loading during pump shutdown.

Helps maintain directional flow in chilled or heated water loops while also allowing fine adjustment of flow rates.

Used in dosing and mixing applications where maintaining precise flow conditions while avoiding back-contamination is necessary.

This comparison shows that while other valves might specialize in one function, the globe check valve offers a versatile, two-in-one solution.

To ensure long-term performance, globe check valves require periodic maintenance. Here are a few maintenance recommendations:

Regular Inspection: Periodically check for seat wear, disc alignment, and leakage.

Debris Removal: Clean the valve internals if there is evidence of clogging or restricted movement.

Seal Replacement: Replace any worn seals to maintain tight shutoff performance.

Test Operation: In systems where flow conditions change often, periodically test the valve to ensure it opens and closes correctly.

Scheduled maintenance not only extends the valve’s life but also helps avoid costly unplanned downtime.

Globe check valves are a high-performance solution for systems where both flow regulation and backflow prevention are essential. Their hybrid design not only reduces the need for multiple valves but also enhances system efficiency, minimizes water hammer, and protects vital components.

With the right material selection, proper installation, and routine maintenance, globe check valves can provide years of reliable service in the most demanding industrial applications. As fluid systems become more complex and integrated, the need for versatile, efficient valves like the globe check valve will only continue to grow.
