Introduction

Globe valves are essential components in various piping systems, known for their effectiveness in regulating flow. Their design and functionality make them suitable for both throttling and on/off applications. However, proper installation and maintenance are crucial to ensure optimal performance and longevity. This guide provides a comprehensive overview of globe valve installation, common issues, and repair strategies, enabling you to maintain efficient and reliable systems.

Correct Configuration for Globe Valve Installation

Flow Direction

Understanding the flow direction is vital when installing a globe valve. These valves are designed to operate in one specific direction, indicated by an arrow on the valve body. Always ensure that the flow enters from below the seat, as this configuration enhances the valve's efficiency. Installing the valve in the wrong direction can lead to operational issues and potential damage to the system.

Orientation

For optimal performance, it is recommended to mount the globe valve horizontally, with the handwheel positioned upright. This orientation allows the disc to fully seat against the valve seat, ensuring a tight seal. If the valve is installed vertically, it may hinder the disc's ability to close completely, leading to potential leaks and inefficient flow regulation. Proper orientation is essential for maintaining the valve's integrity and operational effectiveness.

Piping Stresses

To prevent bending or damaging the valve body, it is crucial to alleviate any weight or side loads applied to the valve. Utilizing pipe hangers and supports can help distribute the weight of the piping system, minimizing stress on the valve. Proper support not only extends the lifespan of the valve but also ensures the overall reliability of the piping system.

Thermal Relief

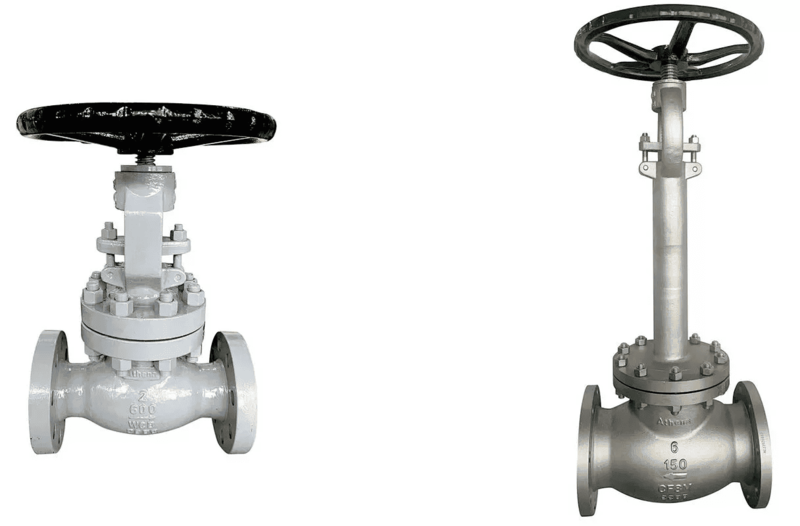

Thermal expansion and contraction can significantly impact globe valves, particularly those with extended bonnets. It is essential to provide adequate space for the valve to expand and contract without coming into contact with adjacent equipment. In some cases, considering bellows seal valves can offer additional flexibility, reducing the risk of thermal-related issues and ensuring smooth operation.

Insulation

While insulating pipes is often necessary for temperature control, caution should be exercised when insulating around globe valves. Never insulate over the bonnet or handwheel, as this can lead to overheating, damaging the packings and stems. Proper insulation practices are vital for maintaining the functionality and longevity of the valve. Ensuring that the valve remains accessible for maintenance is equally important.

Resolving Common Issues with Globe Valves

Despite their robust design, globe valves can experience various issues over time. Recognizing and addressing these problems promptly can help maintain system efficiency and prevent costly downtime.

External Leakage

External leakage is one of the most common issues encountered with globe valves. This problem can arise from several factors, including improper installation, worn seals, or damage to the valve body. Regular inspections should be conducted to identify any signs of leakage, allowing for timely repairs or replacements. If leakage is detected, check the tightness of the valve and inspect the seals for wear. Replacing worn seals or adjusting the valve may resolve the issue.

Internal Leakage

Internal leakage occurs when fluid flows past the valve seat when the valve is closed. This issue can compromise the system's efficiency and control. Internal leakage may be caused by wear on the valve seat, improper installation, or damage to the valve components. To address internal leakage, disassemble the valve and inspect the seat and disc for damage. In many cases, reseating the disc or replacing worn components can restore proper function.

Inspecting Internals and Planning Repairs

When disassembling a globe valve for maintenance or repair, it is crucial to conduct a thorough inspection of each removed component. Key areas to examine include:

Cracks

Inspect the valve body and bonnet for any cracks, especially in threaded areas. Cracks can compromise the valve's structural integrity and may require welding repairs or complete replacement, depending on the severity.

Erosion

Erosion can occur due to various factors, such as cavitation, flashing, or exposure to harsh chemicals. Look for signs of erosion on the internal surfaces, and replace any affected parts to ensure proper sealing and flow control.

Scale/Deposits

Buildup of scale or deposits can impede the valve's operation, leading to inefficient flow control. Identify any such buildup during your inspection, and plan for necessary cleaning to restore the valve's function.

Corrosion

Corrosion can manifest as pitting or rust on the valve surfaces, which can weaken the structure and affect sealing capabilities. Regular inspections can help identify corrosion early, allowing for timely interventions to prevent further damage.

Wear

Examine the internal components for signs of wear, such as scoring, galling, or flattened seats. Loose stem fits can also indicate wear. Addressing these issues promptly can prevent more significant problems in the future.

Leak Points

Identify specific locations where leakage may be occurring. Pinpointing leak points is essential for targeted repairs, reducing the overall impact on system performance. Documenting these findings will aid in planning effective repairs.

Other Defects

During your inspection, check for additional defects such as dents, missing components, misalignments, or other irregularities that may affect the valve's performance. Thorough documentation will assist in planning repairs and ensuring all issues are addressed.

Conclusion

Proper installation and maintenance of globe valves are critical to ensuring their effective operation and longevity. By understanding the correct configuration for installation, addressing common issues, and conducting thorough inspections during repairs, you can optimize the performance of your globe valves and enhance the overall reliability of your systems.

Investing time and resources into the care of your globe valves will pay off in the long run, minimizing downtime and ensuring the safety and efficiency of your operations. Whether you are installing new valves or maintaining existing ones, this guide serves as a valuable resource for achieving optimal performance and reliability in your piping systems. By following best practices and being proactive in maintenance, you can ensure the continued effectiveness of your globe valves in any application.
