Stainless steel ball valves are among the most reliable and versatile flow control devices used across various industries. Engineered from stainless steel — a corrosion-resistant alloy made by combining iron with chromium, nickel, and in some cases, molybdenum — these valves are designed to perform under extreme conditions. Whether dealing with high pressure, elevated temperatures, or corrosive substances, stainless steel ball valves offer long-lasting, leak-tight solutions for fluid shut-off and control.
Especially when made from 316 stainless steel, which contains additional nickel and molybdenum, these valves excel in highly corrosive environments such as marine and chemical applications. This durability and resilience make stainless steel ball valves a preferred choice across multiple sectors.

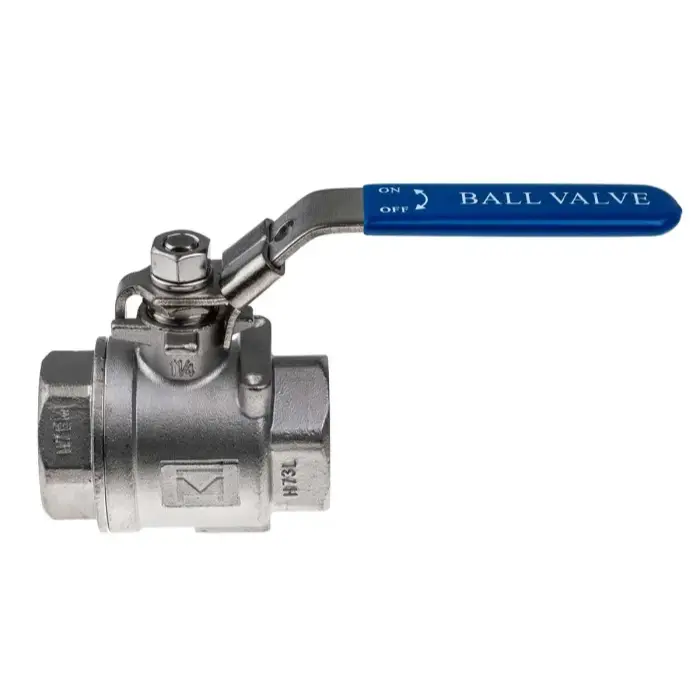

Stainless steel ball valves are mechanical devices used to regulate the flow of liquids or gases through a piping system. At the core of their functionality is a hollow, perforated, and pivoting ball that can rotate within the valve body to control fluid flow. The valve opens or closes when the ball’s bore aligns with or blocks the flow path.
The design and material of stainless steel ball valves make them suitable for rigorous industrial environments. Stainless steel resists corrosion, endures high pressure and temperature extremes, and maintains structural integrity for long-term use.
For demanding applications involving chlorides, saltwater, or other corrosive substances, 316 stainless steel is commonly selected due to its enhanced resistance, thanks to the presence of molybdenum and higher nickel content.
Due to their rugged construction and high performance, stainless steel ball valves are widely used in industries that demand reliable flow control under challenging conditions. Common applications include:
Petroleum and Oil Refining: Withstand high pressure and temperature, handle hydrocarbons safely.
Marine Operations: Excellent resistance to saltwater corrosion, ideal for shipboard systems.
Brewing and Beverage Systems: Maintain sanitary flow control with corrosion-resistant surfaces.
Chemical Processing: Resist aggressive chemical exposure and provide reliable shut-off.
Pharmaceutical Manufacturing: Ensure sterile and leak-free fluid control.
Food and Beverage Processing: Compliant with hygienic standards, easy to clean.
Water Treatment Plants: Control the flow of treated and untreated water efficiently.
The basic principle behind a ball valve is simple yet effective. A round ball with a hole (bore) through the center is placed inside the valve body. The ball is connected to an external lever or actuator. When the lever is turned 90 degrees, the ball rotates, either aligning the bore with the flow path to allow fluid through or turning it perpendicular to block the flow.
This quarter-turn operation makes stainless steel ball valves quick and easy to operate, allowing for fast shut-off during emergencies. Their tight sealing capabilities also minimize leaks, making them ideal for critical processes.
Stainless steel ball valves come in several types and configurations to suit different applications. Here's an overview of the most common types:
Design: The bore diameter of the ball is equal to the pipeline diameter.
Benefit: Offers maximum flow capacity with minimal pressure drop.
Application: Ideal for systems where unrestricted flow is essential.
Design: The bore is smaller than the pipe diameter.
Benefit: More cost-effective but reduces flow efficiency.
Application: Common in systems where minor pressure drops are acceptable.
Structure: Comprises two separate parts—one body and one end connection.
Benefit: Easy to install and maintain, allows for larger ball size for full port flow.
Application: General-purpose use in industrial and commercial systems.
Structure: Made of three parts—two end connections and a central body housing the internal components.
Benefit: Can be disassembled without removing the valve from the pipeline, simplifying maintenance and cleaning.
Application: Suitable for applications requiring frequent maintenance, such as food and chemical processing.
Design: Ends have flanges for easy bolting to the pipe flanges.
Benefit: Offers robust sealing and is ideal for larger pipelines.
Application: Heavy-duty industrial processes and pipelines that need frequent disassembly.
Design: Comes with female (or sometimes male) threads for screwing into threaded pipe ends.
Benefit: Simple installation without welding.
Application: Suitable for low-pressure systems and residential/commercial use.
Design: The ball is supported by trunnions (support shafts) at the top and bottom.
Benefit: Reduces torque and wear, making it ideal for high-pressure and large-diameter applications.
Application: Oil and gas transmission pipelines, high-pressure gas systems.
Design: The ball is held in place by the valve seats and is free to float slightly.
Benefit: Seat loading is created by pressure, enabling tight sealing in low-pressure applications.
Application: Used in low to medium pressure systems requiring bubble-tight shutoff.
Corrosion Resistance: Withstands harsh environments, chemicals, and weather exposure.
Durability: Withstands wear and tear over prolonged periods without significant degradation.
Versatility: Suitable for a wide range of fluids, gases, and operational conditions.
Fast Operation: 90-degree rotation for quick shut-off or activation.
Minimal Pressure Drop: Especially in full port designs, ensures optimal flow.
Low Maintenance: Simple design with fewer moving parts means fewer breakdowns.
Oil & Gas: For wellhead control, transmission lines, and refinery systems.
Pharmaceuticals: For sanitary flow control with high chemical compatibility.
Food & Beverage: To maintain hygiene and prevent contamination.
Pulp & Paper: Handles chemicals and pulp slurries.
HVAC Systems: Regulates water and refrigerant flow in heating and cooling systems.
Fire Protection Systems: Ensures dependable flow control in sprinkler and hydrant systems.
When choosing a stainless steel ball valve, consider the following factors:
Material Grade: 304 for general use; 316 for marine or corrosive environments.
Port Type: Full port for unrestricted flow; reduced port for compact or lower-cost setups.
Pressure Rating: Ensure the valve meets or exceeds system pressure demands.
End Connection: Choose between threaded, flanged, or welded based on pipe configuration.
Number of Pieces: Opt for two-piece or three-piece based on maintenance accessibility.
Valve Size: Match valve diameter with piping system requirements.
Regular Inspection: Check for wear, leaks, or corrosion signs periodically.
Proper Installation: Ensure correct alignment and sealing during installation to prevent operational failure.
Use Correct Torque: Avoid over-tightening, which can damage internal components.
Lubrication: Use manufacturer-approved lubricants for smooth operation if needed.
Handle With Care: Avoid striking or dropping the valve during handling or installation.
Stainless steel ball valves offer a combination of strength, corrosion resistance, and versatility that makes them a go-to choice for critical flow control applications across various industries. Whether you're operating in a marine environment, handling aggressive chemicals, or managing sanitary systems, stainless steel ball valves provide a dependable solution with low maintenance and long service life.
Understanding the different types — from full port to trunnion-mounted — and their specific functions allows for optimal valve selection. By factoring in material grade, pressure needs, and connection types, businesses can ensure efficient and reliable operations in even the most demanding conditions.
