Pneumatic Ball Valve Working Principle: A Complete Guide for Industry Professionals

In today’s industrial landscape, automation and efficiency are at the heart of every production system. Valves, though often overlooked, are central to this evolution. They regulate, direct, and control the movement of fluids and gases in pipelines, ensuring smooth operation across industries as diverse as oil and gas, chemical processing, water treatment, food and beverage, power generation, and pharmaceuticals. Among the many types of valves available, the pneumatic ball valve stands out as a robust, reliable, and versatile option.

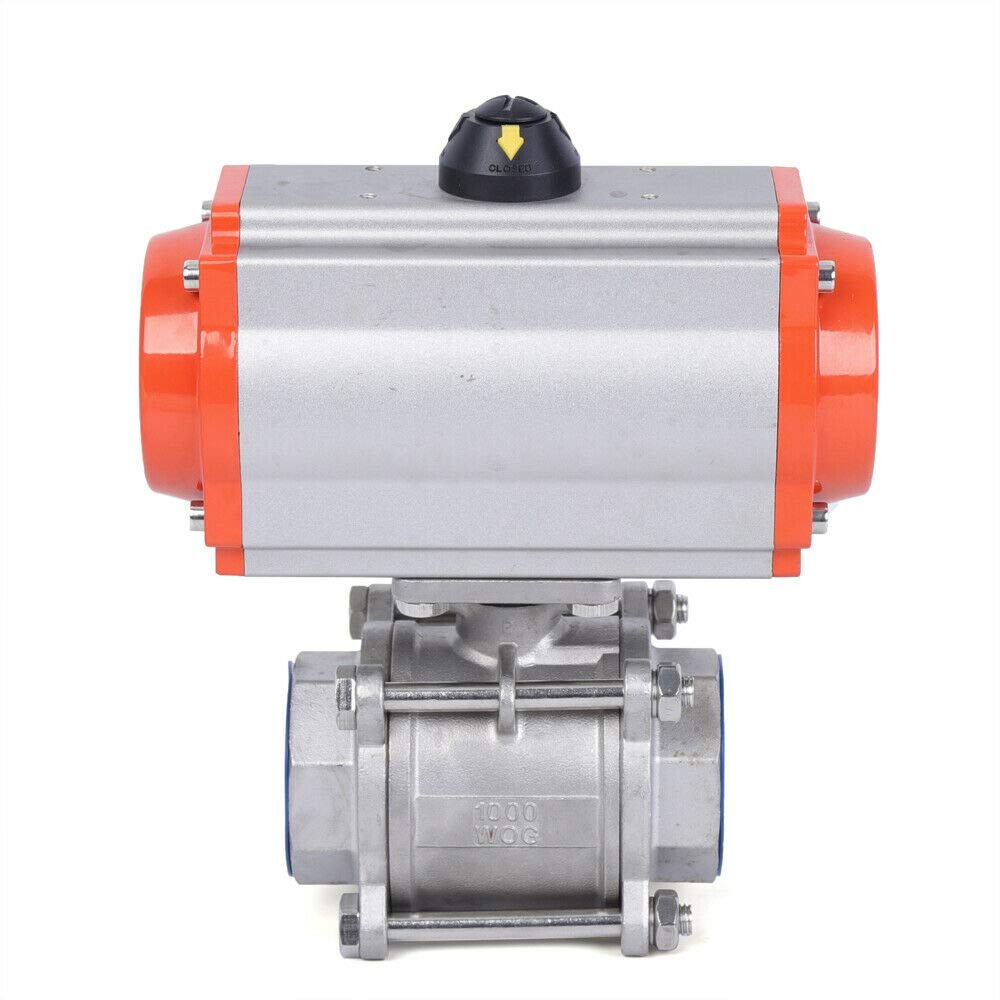

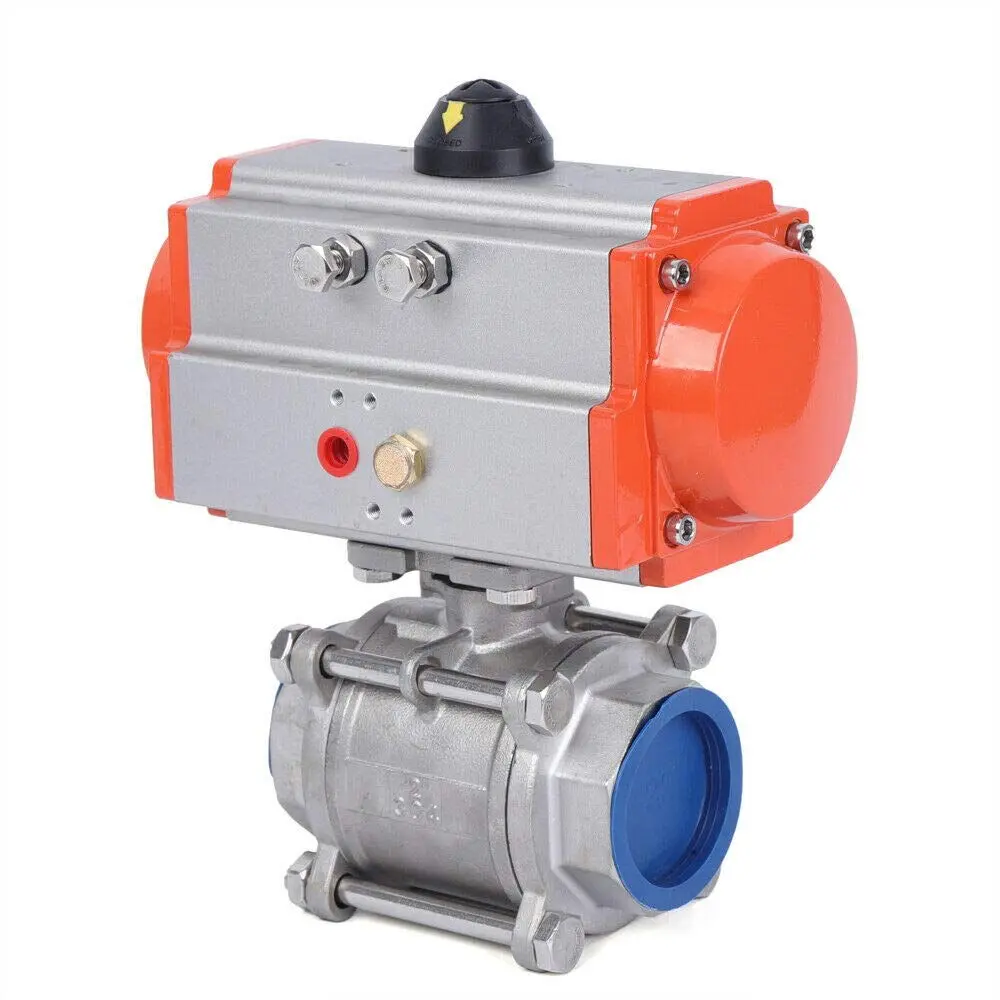

A pneumatic ball valve is an automated device that employs compressed air to drive a ball mechanism, which either permits or restricts fluid flow. The simplicity of its design—featuring a spherical sealing element with a central bore—belies its importance. When rotated by an actuator, the ball’s port aligns with or blocks the pipeline passage, delivering precise and rapid flow control.

One of the reasons pneumatic ball valves are so widely used is their modular structure. They can be customized with a variety of actuators, accessories, and mounting options to suit the requirements of different industries. From high-pressure natural gas systems to sanitary water lines in pharmaceutical facilities, these valves are indispensable where speed, safety, and reliability are non-negotiable.

This article will explore the working principle, design features, actuator types, installation guidelines, comparisons with electric ball valves, and real-world applications. It will also look into global standards, maintenance practices, and future innovations shaping the development of pneumatic ball valves.

The concept of a ball valve dates back to the early 20th century, but its adoption gained momentum in the 1950s when advancements in sealing materials such as PTFE made them more practical for industrial use. Initially operated manually, ball valves were prized for their tight shut-off capability and low-pressure drop.

As automation technologies advanced, industries sought faster and more reliable actuation methods. Pneumatic systems, already common in factories for powering machinery, offered the perfect solution. By integrating compressed air with ball valve design, engineers created the pneumatic ball valve, which combined the durability of traditional ball valves with the efficiency of automatic control. Today, pneumatic ball valves are standard equipment in countless industrial plants worldwide.

At the core of the pneumatic ball valve is a straightforward yet effective mechanism. The valve consists of a spherical ball with a hole drilled through its center. This ball is housed within a valve body and connected to a stem that transmits torque from the actuator.

The process begins when a control signal is sent to the actuator. This signal may come from a manual push button, a remote control center, or a programmable logic controller (PLC) in an automated system.

Upon receiving the signal, the actuator uses compressed air to create torque. Two common actuation modes exist:

Spring-return (single-acting): Air pressure moves the valve in one direction, while an internal spring forces it back to its default position.

Double-acting: Air pressure drives the actuator in both directions, offering more control and eliminating reliance on springs.

The torque is transmitted through the stem, which rotates the ball inside the valve body. As the ball turns, the alignment of its bore determines the flow condition.

Open position: The bore aligns with the inlet and outlet, allowing fluid to pass freely.

Closed position: The ball is rotated 90 degrees, blocking the flow completely.

Partially open position: The ball can be positioned at intermediate angles, allowing throttling for controlled flow rates.

This mechanism enables pneumatic ball valves to provide fast, reliable, and consistent operation even under demanding conditions.

The actuator is the driving force behind a pneumatic ball valve, and different designs offer different performance characteristics.

Most common design.

Converts linear piston motion into rotational motion via gears.

Compact, cost-effective, and reliable.

Provides higher torque at the beginning and end of the stroke.

Ideal for large ball valves or high-pressure applications.

Uses compressed air in one direction and a spring in the other.

Excellent for fail-safe applications where the valve must automatically return to a default position during air loss.

Requires compressed air for both opening and closing.

Offers greater precision and is often used where fail-safe is less critical.

Choosing the right actuator depends on the size of the valve, required torque, fail-safe needs, and application environment.

Valve Body: Encases the ball and seals, available in stainless steel, carbon steel, bronze, and special alloys for corrosive environments.

Ball: Precision-engineered with a central bore; chrome-plated or coated for wear resistance.

Seats: Provide sealing between the ball and body. Materials include PTFE, RPTFE, or metal.

Stem: Connects the actuator to the ball. Often made from stainless steel or alloy steel.

Seals and Gaskets: Prevent leaks and maintain pressure integrity.

Actuator: The pneumatic device that provides torque.

Accessories: Limit switches, solenoid valves, and positioners for automation and monitoring.

Proper installation ensures the valve operates reliably and safely.

Confirm the valve material is compatible with the process fluid.

Check pressure and temperature ratings.

Inspect for any shipping damage.

Clean the pipeline of debris, dust, or welding residues.

Ensure flanges or threaded ends match the valve connections.

Align the valve with the pipeline to prevent stress on the body.

Use gaskets or O-rings where necessary.

Verify the actuator can provide sufficient torque for the valve size.

Ensure proper calibration of limit switches if installed.

Perform leak tests at rated pressure.

Cycle the valve multiple times to ensure smooth operation.

Correct installation not only prevents premature wear but also enhances safety and compliance with industrial standards.

In summary, pneumatic valves are best for speed, durability, and fail-safe applications, while electric valves excel in precision and energy efficiency.

Oil and Gas: Pipeline control, emergency shutdown systems, gas distribution.

Water Treatment: Flow regulation in desalination, wastewater management, and municipal supply systems.

Chemical Industry: Handling corrosive, toxic, or flammable fluids.

Food & Beverage: Sanitary designs ensure hygienic flow control for dairy, brewing, and bottling.

Pharmaceuticals: Sterile fluid control in drug manufacturing.

Power Generation: Steam and cooling systems in thermal and nuclear plants.

HVAC Systems: Automated control of heating and cooling pipelines.

To ensure reliability and global acceptance, pneumatic ball valves often comply with international standards, such as:

API 6D – Specification for pipeline valves.

ISO 5211 – Defines actuator mounting standards.

ASME B16.34 – Valve design and pressure-temperature ratings.

CE and ATEX – Certification for use in European and explosive environments.

Compliance ensures valves meet stringent safety and performance requirements.

To maximize lifespan, regular maintenance is crucial:

Air Supply Check: Ensure clean, dry, and lubricated air. Moisture can damage actuators.

Seal Inspection: Replace worn seals and gaskets to prevent leaks.

Lubrication: Periodic greasing of moving parts reduces wear.

Cycle Testing: Regularly operate the valve to prevent sticking.

Diagnostic Monitoring: Use smart sensors to detect torque irregularities or leaks.

Preventive maintenance reduces downtime and extends service life.

Industrial automation continues to evolve, and pneumatic ball valves are keeping pace:

IoT Integration – Smart sensors for real-time performance monitoring.

Digital Twins – Virtual models for predictive maintenance.

Energy Efficiency – New actuator designs reducing air consumption.

Green Applications – Use in hydrogen and renewable energy systems.

AI-Driven Control – Artificial intelligence optimizing valve operation in smart factories.

These innovations are shaping the next generation of pneumatic ball valves.

The pneumatic ball valve is more than a simple flow control device—it is a cornerstone of modern industrial automation. Its working principle, based on compressed air-driven rotation of a spherical ball, provides fast, reliable, and efficient flow control. With proper installation, compliance with standards, and regular maintenance, these valves can deliver decades of service in the most demanding environments.

When compared with electric ball valves, pneumatic types excel in speed, durability, and fail-safe capabilities, making them the preferred choice in critical industries like oil and gas, water treatment, and power generation. Looking ahead, advancements in IoT, AI, and sustainable materials will only enhance their role in global industry.

From its historical roots to its modern applications, the pneumatic ball valve continues to evolve, remaining a vital component in ensuring industrial safety, efficiency, and progress.
