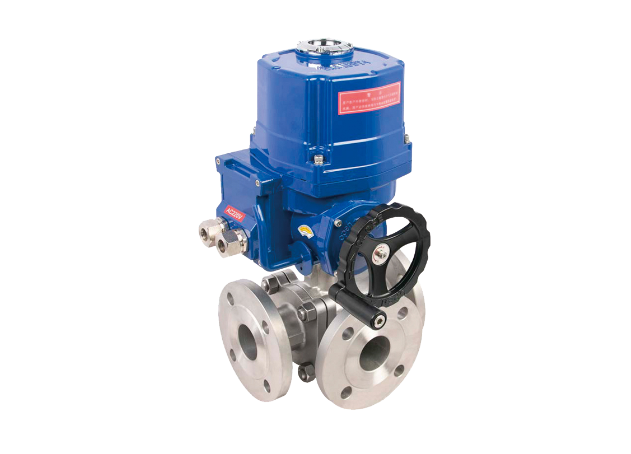

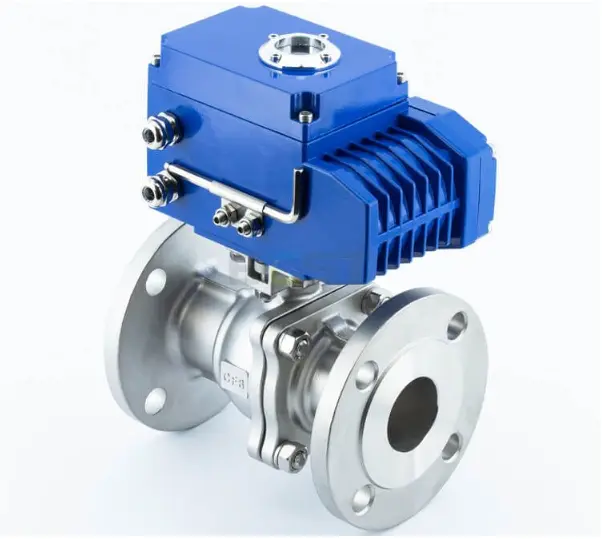

The electric ball control valve is a modern automation solution designed to control the flow of liquids and gases with precision and efficiency. Unlike traditional manual or pneumatic valves, electric ball control valves are powered by electricity, allowing for remote operation and seamless integration with advanced control systems such as PLC (Programmable Logic Controller) and DCS (Distributed Control System).
These valves operate by rotating a ball with a central bore 90 degrees to open or close the flow path. The actuator, powered by an AC or DC power supply, receives electrical signals that prompt the movement. This design enables precise modulation or simple on/off control, depending on the actuator type and system configuration.
As automation and energy efficiency become increasingly important in industrial, commercial, and even residential environments, electric ball control valves offer clear advantages: low energy consumption, reliable sealing, low maintenance, and excellent adaptability for harsh or complex media conditions.
Electric actuators for ball valves come in several varieties to suit different environments and operational needs:
This is the most common actuator type, suitable for general-purpose use in safe environments. These actuators offer reliable performance and are widely used in water treatment, HVAC, and process control applications.
Designed for hazardous environments with flammable gases or dust, explosion-proof actuators are built with sealed, reinforced housings that prevent internal sparks from escaping, ensuring safety in oil refineries, chemical plants, and mining operations.
With fully sealed enclosures and waterproof construction, these actuators can be used in submerged conditions, such as in water tanks, wastewater systems, or marine applications.
These actuators are spring-loaded or electronically configured to return the valve to a default position (typically closed) upon power failure. This fail-safe mechanism is crucial in systems involving hazardous media or processes requiring emergency shutdown.
Electric ball valves offer a host of advantages, making them a preferred choice across multiple sectors:
Electric actuators require no air or hydraulic power, significantly reducing energy consumption. This contributes to lower operating costs and a reduced carbon footprint.
These valves support automated control via digital or analog signals, allowing real-time adjustments based on pressure, temperature, or flow rate. Integration with smart systems boosts production efficiency and process accuracy.
With fewer moving parts than pneumatic systems and no need for compressors or pumps, electric ball valves require less frequent maintenance, resulting in lower lifecycle costs.
Thanks to the spherical sealing surface of the ball, electric ball valves provide a tight shutoff with minimal leakage, even after thousands of cycles.
Electric ball control valves are capable of handling water, air, gas, steam, oil, and corrosive fluids at varying pressures and temperatures, depending on the valve body material and seal type.
Electric ball valves can be found in a wide range of settings, including:
Used to control the flow of hot or chilled water in heating and cooling systems, electric ball valves enhance temperature regulation, reduce energy usage, and support smart building technologies.
In irrigation, these valves automate water distribution, enabling precise and timely irrigation of fields, which helps conserve water and optimize crop yield.
Electric ball valves manage fluid or gas flow in chemical, pharmaceutical, and food production facilities, ensuring consistent process control, dosing accuracy, and compliance with safety standards.
In dishwashers and washing machines, electric ball valves regulate water intake, ensuring optimal operation and water conservation.
In treatment plants, these valves are used to control the flow of water and chemicals, improving process stability and treatment quality.
Proper installation ensures optimal valve performance and longevity. Below are best practices to follow:
Read all safety manuals provided by the manufacturer to understand handling precautions.
Confirm the valve specs, including pressure rating, temperature range, and material compatibility.
Choose a dry, accessible location for the actuator to prevent moisture intrusion and facilitate maintenance.
Depressurize and cool the pipeline before valve installation.
Clean the pipeline of debris, corrosion, or sediment that could damage the valve.
Install upstream filters if the media is not clean.
Align the valve with the pipeline and ensure that the flow direction matches the markings.
Use the correct gaskets, fittings (threaded, flanged, or welded), and sealants as specified.
Secure the valve firmly without over-torquing to avoid damaging threads or flanges.
Wiring the electric actuator correctly is vital for safe operation and communication with your control system:
Consult the manufacturer's wiring diagram specific to the actuator model. It shows the layout for power input, ground, control signal, and optional feedback terminals.
Strip about 8–10mm of insulation from the end of each wire to expose conductive copper for a secure connection.
For AC actuators, connect Live (L), Neutral (N), and Ground (G).
For DC actuators, observe polarity with Positive (+) and Negative (–) leads.
Attach the signal wires to the designated control input terminals. Control may be:
On/Off (open/close)
Proportional (e.g., 4–20mA or 0–10V for modulating valves)
Tighten all screws and verify that no bare wires are exposed, which could lead to shorts or electrical faults.
Energize the actuator and apply a control signal to confirm operation. The valve should fully open or close as commanded. Observe response time and actuator movement.
Seal the actuator housing to protect it from dust and moisture. Double-check connections for overheating or loose wires.
Even though electric ball valves require less maintenance than many other types of valves, regular inspection and preventive servicing will maximize performance and extend service life.
Inspect for any signs of corrosion, leakage, or mechanical damage.
Ensure the actuator casing is sealed and free from moisture or dust buildup.
Periodically cycle the valve to confirm smooth and responsive operation.
Observe any delay, unusual noise, or vibration that may indicate internal issues.
Inspect wiring for wear, looseness, or heat damage.
Verify that terminal screws are still tight and that connections are clean.
Check signal integrity to confirm the actuator is receiving the correct control inputs.
Some actuator models may include moving parts that require periodic lubrication. Use manufacturer-approved lubricants and avoid over-lubrication, which can attract dust and debris.
During scheduled downtime, disassemble the valve (if necessary) and inspect the ball, seats, and seals.
Replace worn or damaged seals to maintain leak-tight operation.
For valves with intelligent feedback or modulating control, recalibrate sensors and confirm signal feedback matches physical position.
Update actuator firmware if applicable.
In outdoor or corrosive environments, ensure protective covers and coatings are intact.
Reapply sealant or corrosion-resistant coatings as necessary.
Maintain an inventory of essential spare parts, such as gaskets, seats, and electronic modules, to reduce downtime during repairs.
Electric ball control valves represent a significant leap forward in fluid control technology. They provide unmatched automation, energy efficiency, and reliability across a broad spectrum of industries and applications. With precise control, low operational noise, and minimal maintenance requirements, these valves support the growing demand for intelligent process management.
From controlling steam in industrial plants to distributing water in agricultural fields, electric ball control valves are engineered to perform under pressure—literally and figuratively. Proper installation, careful wiring, and a sound maintenance strategy ensure these devices deliver long-term, trouble-free operation.
As industries continue to move toward smarter, more sustainable systems, the electric ball control valve will remain a cornerstone of efficient flow automation.
