Aluminum Bronze Gate Valve: A Durable Solution for Corrosive and Marine Applications

In harsh industrial and marine environments, material selection for valve construction is critical. Exposure to saltwater, chemicals, high temperatures, and abrasive fluids can cause rapid degradation of standard materials. To counter these challenges, aluminum bronze gate valves have become a preferred solution across various sectors, offering exceptional performance, longevity, and reliability in corrosive conditions.

Aluminum bronze, an alloy primarily composed of copper and aluminum, has been widely adopted in the manufacture of industrial valves due to its excellent corrosion resistance, mechanical strength, and resistance to biofouling. These characteristics make aluminum bronze gate valves ideal for applications in shipbuilding, desalination plants, offshore oil platforms, chemical processing plants, and more.

Whether it’s withstanding the aggressive saline environment of the ocean or enduring the acidic fluids of chemical refineries, aluminum bronze gate valves offer unmatched durability. This article explores the features, functions, advantages, and key applications of aluminum bronze gate valves, helping engineers and decision-makers understand their value in modern industrial infrastructure.

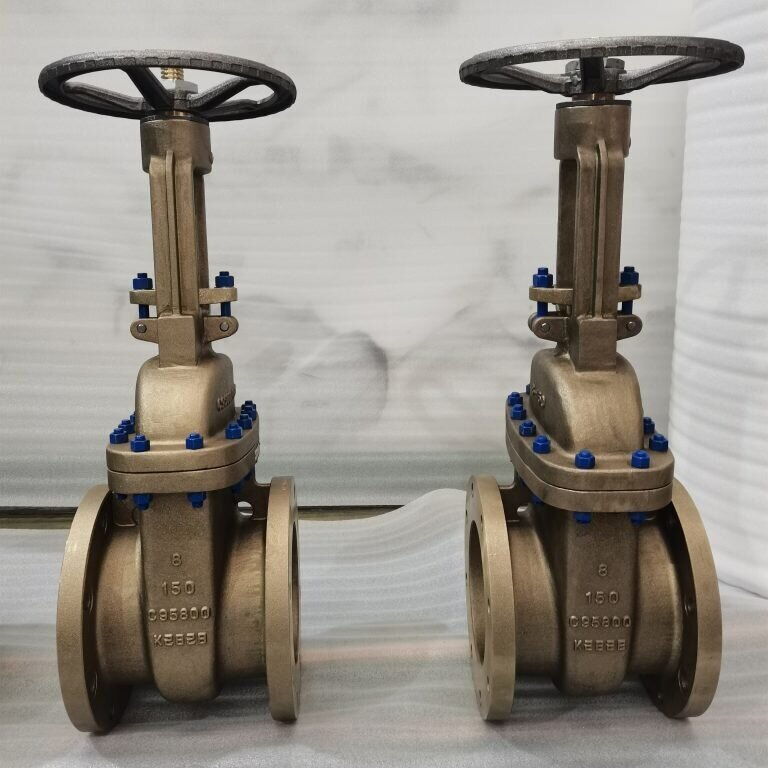

An aluminum bronze gate valve is a type of linear motion valve used to regulate the flow of fluids by lifting or lowering a gate within the valve body. What distinguishes it from other gate valves is the material used in its construction—aluminum bronze.

Aluminum bronze is primarily composed of copper and aluminum, with the aluminum content typically ranging from 5% to 11%. The alloy may also include small amounts of iron, nickel, or manganese to enhance specific properties such as tensile strength, hardness, and resistance to wear.

The aluminum in the alloy provides excellent corrosion resistance, especially in seawater and other saline environments. The copper base contributes to the alloy's strength, conductivity, and resistance to microbial fouling, making it suitable for both clean water systems and heavily contaminated or corrosive applications.

Gate valves function by utilizing a movable gate or wedge that is raised or lowered across the flow path of the fluid. Aluminum bronze gate valves follow this principle but benefit from enhanced corrosion resistance and structural integrity due to their material composition.

Open Position: When the valve is opened, the gate is lifted entirely out of the fluid flow path. This allows for a full, unobstructed bore and minimal pressure drop, making gate valves ideal for on/off applications where flow efficiency is a priority.

Closed Position: In the closed state, the gate is lowered into a seat, typically creating a tight seal that prevents any flow. The flat gate and matching seat minimize leakage and support bidirectional sealing in some designs.

Actuation: The valve can be operated manually using a handwheel or gear operator, or automatically with electric, pneumatic, or hydraulic actuators, depending on the system’s requirements.

Gate valves are not typically used for throttling, as partial opening can cause erosion of the gate and seat due to high-velocity fluid flow.

Aluminum bronze’s resistance to seawater, brine, and various acids makes it a top choice for marine and offshore applications. Unlike stainless steel, which can suffer from pitting and crevice corrosion in chloride-rich environments, aluminum bronze remains stable and forms a protective oxide layer that inhibits further corrosion.

These valves offer excellent mechanical strength, maintaining integrity even under high-pressure or abrasive conditions. This makes them well-suited for industrial systems handling slurry, sand-laden water, or high-velocity fluids.

Aluminum bronze possesses natural biostatic properties, making it resistant to colonization by marine organisms such as barnacles, algae, and mussels. Its antimicrobial qualities are advantageous in maintaining hygiene in seawater desalination systems and potable water pipelines.

The alloy exhibits strong resistance to high temperatures, enabling reliable operation in extreme thermal environments, such as those encountered in power generation and steam lines.

Aluminum bronze gate valves are available in rising stem and non-rising stem configurations, with flexible wedge, solid wedge, or split wedge options. They can be customized with flanged, threaded, or welded ends to meet a variety of piping requirements.

One of the primary industries that utilize aluminum bronze gate valves is shipbuilding. These valves are found in ballast systems, bilge water handling, cooling systems, and fire protection lines aboard vessels. Their resistance to saltwater and marine growth ensures low maintenance and extended service life.

Offshore platforms present a highly corrosive environment due to constant exposure to salt-laden air and seawater. Aluminum bronze gate valves are often employed in offshore production units, drilling rigs, and subsea installations to handle produced water, injection systems, and blowdown lines.

In seawater reverse osmosis (SWRO) plants, aluminum bronze valves are used in intake lines, pre-treatment systems, and high-pressure discharge lines. Their resistance to chloride-induced corrosion is essential for long-term reliability.

In chemical plants, aluminum bronze valves manage the flow of acidic, alkaline, or corrosive fluids that would quickly degrade other materials. Their non-sparking nature also makes them suitable for hazardous environments where flammable gases or vapors may be present.

Aluminum bronze valves are used in raw water intake systems, sedimentation basins, and filtration units where resistance to scale, corrosion, and biological growth is required.

Steam, cooling water, and condensate systems in power plants benefit from aluminum bronze’s high thermal stability and long service life under cyclic temperature conditions.

High-quality aluminum bronze gate valves are typically manufactured in accordance with international standards to ensure reliability and compatibility across different systems. Some of the common standards include:

API 600 / API 6D – for petroleum and natural gas industries

ASME B16.34 – valve design and pressure-temperature ratings

BS 5150 / EN 1984 – industrial valve standards in Europe

ISO 5208 – pressure testing of metallic valves

Valve dimensions, pressure classes (e.g., Class 150, 300, 600), face-to-face lengths, and end connections are specified to align with industry expectations.

Thanks to their material properties, aluminum bronze gate valves require minimal maintenance. However, periodic inspection is recommended to ensure optimal performance.

Maintenance Tips:

Inspect Seals and Seats regularly for signs of wear.

Lubricate Stems and Bearings where applicable to ensure smooth operation.

Check for Biofouling in marine systems, though aluminum bronze is highly resistant.

Replace Worn Gaskets or Packing during scheduled outages or maintenance windows.

When properly maintained, aluminum bronze valves can deliver service lives of 20 years or more, especially in marine and industrial settings.

Compared to other commonly used valve materials such as cast iron, carbon steel, stainless steel, and brass, aluminum bronze offers several advantages:

Aluminum bronze strikes an excellent balance between performance and cost in high-corrosion environments, outperforming many alternatives in terms of durability and lifecycle value.

Aluminum bronze gate valves are a robust and cost-effective solution for controlling fluid flow in the harshest environments. With exceptional resistance to corrosion, wear, and biofouling, they serve a vital role in marine, offshore, chemical, and industrial systems.

From saltwater applications aboard ships to aggressive chemical handling in industrial plants, aluminum bronze offers reliability where other materials might fail. Their long service life, minimal maintenance, and compatibility with a range of fluids make them a smart investment for engineers seeking resilient, high-performance valve solutions.

As global industries continue to expand into more extreme environments, the demand for corrosion-resistant components like aluminum bronze gate valves will only increase—solidifying their role as an essential component in modern fluid control systems.
