Electric Actuated Globe Valves: Precision and Automation in Flow Control

Electric Actuated Globe Valves: Precision and Automation in Flow Control

On this page

In today's rapidly evolving industrial landscape, the demand for precise, reliable, and automated flow control solutions has never been greater. Electric actuated globe valves have emerged as a cornerstone technology, bridging the gap between traditional mechanical valves and smart industrial automation systems. These sophisticated devices combine the proven reliability of globe valve design with the precision and programmability of electric actuation, making them indispensable across a wide spectrum of industries—from power generation and oil refineries to pharmaceutical manufacturing and municipal water systems.

This in-depth report examines the technological advancements, operational principles, and industrial applications of electric actuated globe valves, providing plant managers, process engineers, and procurement specialists with the knowledge needed to make informed decisions about their flow control infrastructure.

Understanding Electric Actuated Globe Valves

1.1 Definition and Core Components

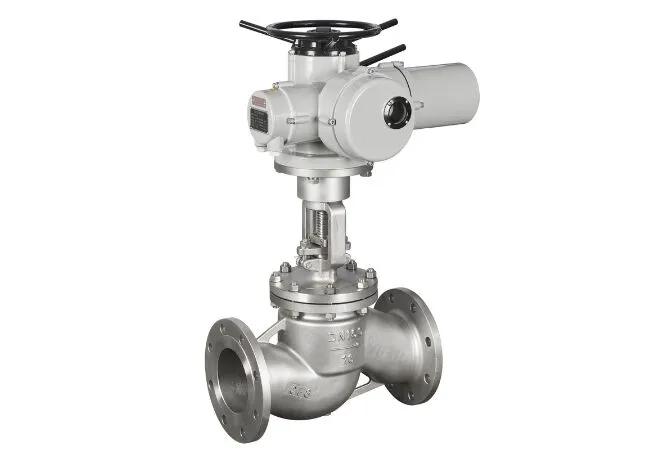

An electric actuated globe valve is a flow control device that integrates a globe valve's mechanical structure with an electrically powered actuator. Unlike manual valves that require physical operation or pneumatic valves dependent on air pressure, these valves use electric motors to achieve precise positioning, enabling both on/off and modulating control functions.

Primary Components:

  • Valve Body: Typically constructed from cast iron, carbon steel, stainless steel, or specialty alloys, designed to withstand system pressures and corrosive media.

  • Trim Components: Includes the disc (plug), seat, and stem—engineered for tight shutoff and smooth throttling.

  • Electric Actuator Assembly: Comprising:

    • Servo Motor (AC/DC) – Provides rotational force

    • Gear Reduction System – Converts high-speed motor rotation into high-torque output

    • Limit Switches – Automatically cuts power at fully open/closed positions

    • Position Feedback System (Potentiometer or encoder) – Enables real-time position monitoring

  • Control Interface: Supports analog (4-20mA, 0-10V) or digital (Fieldbus, Profibus, HART) communication protocols for integration with Distributed Control Systems (DCS).

1.2 Evolution of Globe Valve Technology

The globe valve design traces its origins to the early 19th century, originally developed for steam engine applications. The introduction of electric actuation in the mid-20th century revolutionized valve technology by:

  • Eliminating the need for manual operation in hard-to-reach locations

  • Enabling precise flow control impossible with manual valves

  • Facilitating integration with emerging process control systems

Modern iterations incorporate smart technologies like IoT connectivity and predictive maintenance capabilities, positioning electric actuated globe valves as key components in Industry 4.0 infrastructure.

Operational Mechanics and Technical Specifications

2.1 Detailed Working Principle

The operation of an electric actuated globe valve follows a precise electromechanical sequence:

  1. Control Signal Reception

    • The actuator receives an electrical signal from the control system (typically 24V DC, 110V AC, or 220V AC)

    • For modulating control, the signal magnitude determines the required valve position (e.g., 12mA = 50% open)

  2. Motor Activation

    • The servo motor engages, rotating at speeds typically between 1,200-3,600 RPM

    • Worm gear or planetary gear systems reduce output speed while multiplying torque (common ratios: 50:1 to 100:1)

  3. Stem Translation

    • The rotating motion converts to linear movement via:
      Direct stem connection (for small valves)
      Scotch yoke mechanism (for high-torque applications)

    • Stem movement ranges from 10mm (for small valves) to 150mm (for large bore valves)

  4. Disc Positioning

    • The disc moves perpendicular to the seat, creating:
      Full flow (disc fully retracted)
      Throttled flow (intermediate positions)
      Complete shutoff (disc seated)

  5. Position Verification

    • Feedback sensors continuously monitor stem position

    • Control systems compare actual vs. commanded position with precision up to ±0.5% of full stroke

2.2 Critical Performance Parameters

Specification Typical Range Industry Standards
Pressure Rating ANSI Class 150 to 2500 (PN16 to PN420) ASME B16.34
Temperature Range -196°C to 600°C (cryogenic to high-temp) API 602
Flow Coefficient (Cv) 5 to 10,000 (depending on size) ISA-75.01.01
Actuation Time 15 sec (small valves) to 5 min (large valves) IEC 60534
Ingress Protection IP65 to IP68 (water/dust proof) IEC 60529
Explosion Proofing ATEX, IECEx (for hazardous areas) Directive 2014/34/EU

Comparative Analysis with Alternative Valve Technologies

3.1 Electric vs. Pneumatic Actuation

Parameter Electric Actuated Pneumatic Actuated
Control Precision ±0.1% of span ±1-2% of span
Response Time 1-30 sec/rev 0.5-5 sec/rev
Energy Efficiency Only consumes power during movement Continuous air supply needed
Maintenance Minimal (sealed bearings) Regular lubrication required
Installation Cost Higher initial cost Lower initial cost
Lifetime Cost 30-40% lower over 10 years Higher due to air system maintenance

Industry Insight: While pneumatic valves dominate in explosive environments, electric versions are gaining market share (projected 6.8% CAGR 2023-2030) due to energy savings and smart capabilities.

3.2 Globe Valve vs. Other Valve Types

Valve Type Best For Limitations
Globe Precise throttling, frequent operation Higher pressure drop
Gate On/off service, minimal pressure drop Poor throttling capability
Ball Quick operation, bi-directional flow Limited precision control
Butterfly Large diameter, low-pressure systems Limited sealing at high pressures

Advanced Applications and Industry-Specific Solutions

4.1 Power Generation

  • Nuclear Plants: Zirconium-alloy valves for primary coolant loops

  • Coal-Fired Plants: Hard-faced trim for erosive ash slurry service

  • Combined Cycle: Fast-acting (≤10 sec) valves for load following

4.2 Oil & Gas

  • Upstream: API 6A wellhead valves with 10,000 psi rating

  • LNG: Cryogenic valves (-162°C) with extended bonnets

  • Refining: Alloy 20 valves for corrosive crude distillation

4.3 Water Infrastructure

  • Smart Water Grids: IoT-enabled valves with leakage detection

  • Desalination: Super duplex valves for seawater RO systems

  • Wastewater: Rubber-lined valves for abrasive sewage

4.4 Emerging Technologies

  • Hydrogen Economy: Embrittlement-resistant valves for H2 pipelines

  • CCUS: High-pressure CO2 valves for carbon capture systems

  • Battery Manufacturing: Ultra-clean valves for electrolyte handling

Selection Guide and Procurement Considerations

5.1 Material Selection Matrix

Fluid Type Recommended Material Special Considerations
Steam ASTM A216 WCB Graphite packing for 400°C+
Caustic CF8M (SS316) Avoid galling with hard-faced seats
Hydrochloric Acid Hastelloy C276 PTFE-lined for concentrated acid
Seawater Super Duplex 2507 Cathodic protection recommended

5.2 Actuator Sizing Calculations

The required actuator torque (T) can be determined by:

T = [(A × P) + (Ff + Fs)] × Sf

Where:
A = Seat area (in²)
P = Differential pressure (psi)
Ff = Friction force (lb)
Fs = Stem packing force (lb)
Sf = Safety factor (typically 1.25-2.0)

Example: For a 4" Class 300 valve with 500 psi ΔP:
T ≈ [(12.56 in² × 500 psi) + 120 lb] × 1.5 = 9,540 lb-in → Select 10,000 lb-in actuator

5.3 Smart Valve Features

  • Predictive Maintenance: Vibration sensors detect bearing wear

  • Digital Twins: Virtual models for performance simulation

  • Blockchain Integration: Tamper-proof maintenance records

The global electric actuated valve market is projected to reach $12.8 billion by 2027 (MarketsandMarkets). Key drivers include:

  • Industrial IoT Adoption: 45% of new valves will be IIoT-enabled by 2025

  • Energy Transition: Demand for valves in hydrogen and CCS systems

  • Advanced Materials: Nanocomposite seats extending service life 3-5X

Regulatory impacts:

  • New EPA guidelines tightening fugitive emissions standards (MESC SPE 77/300)

  • EU Machinery Directive 2023 requiring SIL 2 safety for critical processes

Conclusion

Electric actuated globe valves represent the convergence of mechanical engineering excellence and digital innovation. As industries worldwide face increasing pressure to improve efficiency, reduce emissions, and embrace automation, these valves will play a pivotal role in modern process systems.

For engineering teams specifying new installations or upgrading existing infrastructure, the key considerations should be:

  1. Application-Specific Design – Match materials and actuation to service conditions

  2. Total Cost of Ownership – Evaluate energy savings and maintenance requirements

  3. Future-Readiness – Select valves with smart capabilities for Industry 4.0 integration

Leading manufacturers now offer digital configurators and VR simulations to assist in valve selection—a testament to how far this essential technology has evolved.
