In modern industrial processes, precise flow control is critical for ensuring safety, efficiency, and reliability. Among the various types of valves employed, cage-guided globe valves have emerged as a preferred solution for demanding high-pressure applications. Known for their stability, durability, and adaptability, these valves are widely used across industries such as oil & gas, chemical processing, power generation, water treatment, and petrochemicals.

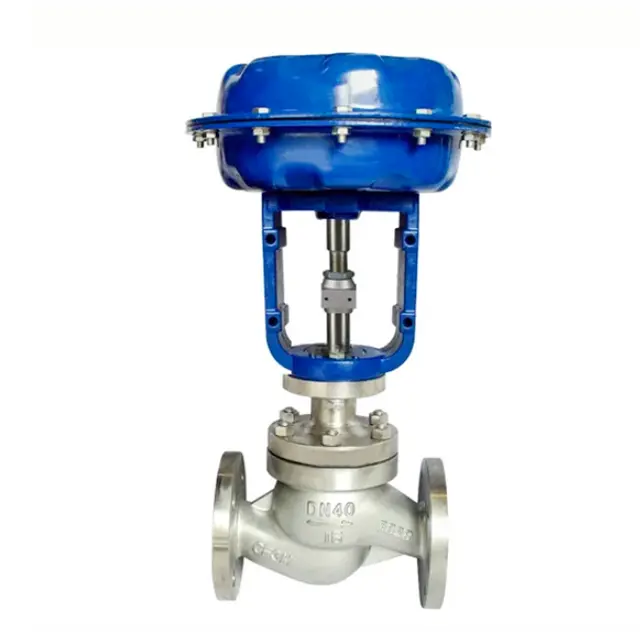

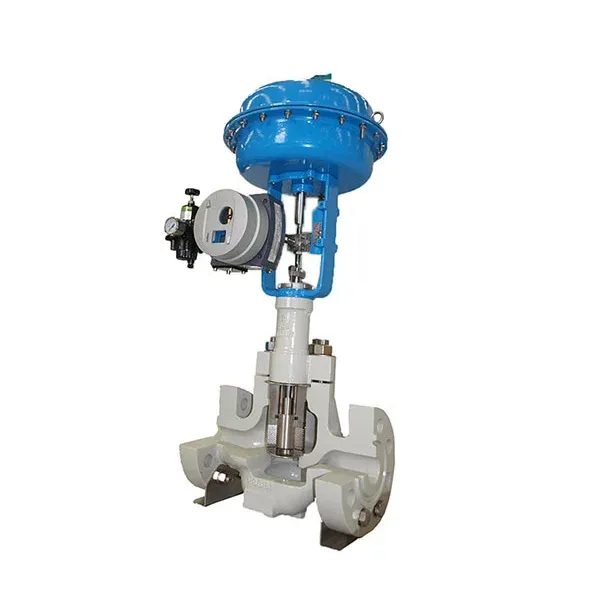

The key feature that differentiates cage-guided globe valves from traditional globe valves is the cage structure surrounding the plug. This cage not only provides precise guidance for the plug but also enhances valve stability under extreme operating conditions, including high temperatures, pressures, and flow turbulence. Additionally, the cage design often incorporates features for noise reduction, cavitation control, and erosion mitigation, making these valves suitable for critical and complex applications.
The global industrial valve market, valued at approximately $80 billion, is experiencing steady growth, with cage-guided globe valves representing a significant segment. Analysts project a compound annual growth rate (CAGR) of around 5.5% through 2028, driven by rising demand in energy, water treatment, and chemical industries.
Energy and Oil & Gas Infrastructure Expansion – Midstream pipelines, refineries, and gas processing plants increasingly require high-performance valves capable of handling extreme pressures and corrosive media. Cage-guided globe valves, with their robust design, are ideally suited for these applications.
Power Generation Investments – Both conventional and renewable energy plants demand reliable flow control systems. The rise of renewable integration, including solar and biomass, necessitates valves capable of managing variable flows and pressures.
Water Scarcity and Treatment Needs – As water treatment facilities evolve to meet stricter quality standards, valves with precise flow regulation, minimal leakage, and robust material construction are in high demand.
Smart Valves and IIoT Integration: Modern cage-guided globe valves are increasingly equipped with sensors, digital positioners, and monitoring devices, enabling predictive maintenance, real-time diagnostics, and integration with plant DCS/SCADA systems.
Environmental Compliance: Regulatory requirements such as ANSI Class VI leakage limits and ISO 15848 fugitive emission standards are driving the adoption of valves designed for near-zero leakage and minimal environmental impact.
Energy Efficiency: Manufacturers are focusing on low-friction trim designs, optimized flow paths, and balanced plugs to reduce pressure drop and operational energy costs.
Asia-Pacific: Dominates the market due to rapid industrialization in China, India, and Southeast Asia. Investments in oil & gas infrastructure, power generation, and chemical plants are primary growth drivers.
North America: Growth is fueled by shale gas exploration, petrochemical expansions, and modernized water treatment infrastructure.
Europe: Focuses on energy transition, replacement of aging infrastructure, and stricter environmental regulations.
Additive Manufacturing: Enables complex cage and trim designs that improve flow characteristics and reduce cavitation.
Advanced Coatings: Protect against erosion, corrosion, and high-temperature wear, extending valve life.
Digital Positioners & Diagnostics: Facilitate accurate valve control, remote monitoring, and predictive maintenance, improving reliability and uptime.
Selecting the optimal cage-guided globe valve requires careful consideration of technical specifications, compliance standards, performance metrics, and cost-efficiency.
Pressure Class: From ASME 150# to 2500#, depending on application requirements.
Temperature Range: Valves must withstand the operating medium’s temperature without deformation or leakage.
Flow Capacity: Determine Cv/Kv values based on process needs.
End Connections: Flanged, butt-weld, or threaded options must match pipeline specifications.
Materials: Body, trim, and seat materials such as 316SS, Alloy 20, or Stellite are selected based on fluid compatibility and operating conditions.
Standards Compliance: ASME B16.34 (valves), API 598 (testing), and API 6D (for pipeline service) are often mandatory.
SIL Certification: Required for safety instrumented systems (IEC 61508).
Fugitive Emissions: ISO 15848-1, TA-Luft compliance ensures minimal environmental impact.
Sour Service Standards: NACE MR0175/MR0103 compliance is necessary for valves in H2S-containing environments.
Pressure Equipment Directives: PED (2014/68/EU) and CRN registration may apply depending on region.
Flow Characteristics: Equal %, linear, or quick-open depending on process control needs.
Rangeability: Ability to maintain precise control over a wide flow range.
Leakage Class: ANSI FCI 70-2 Class II to VI for tight shutoff applications.
Noise and Cavitation Control: Evaluate using industry-defined metrics like FL (fluid coefficient) and XT (cavitation index).
Consider total cost of ownership (TCO), including installation, maintenance, energy consumption, and downtime risks.
Bulk purchases or long-term contracts often reduce overall costs.
Documentation: Ensure ISO 9001-certified QA/QC procedures, material test certificates, non-destructive testing, and functional tests.
Manufacturer Reputation: Track record, references, and previous project experience are key indicators of reliability.
Control Systems Compatibility: 4-20 mA, HART, Foundation Fieldbus, Profibus PA, etc.
Actuator Mounting Standards: IEC 60534-6 compliance ensures seamless integration with actuators or digital positioners.
Smart Features: Advanced valves support plant automation, remote monitoring, and predictive diagnostics.
Evaluate availability of spare parts, technical support, and training programs.
Strong after-sales support minimizes operational risk and ensures smooth lifecycle management.
Cage-guided globe valves provide several significant operational advantages compared to stem-guided or port-guided globe valves, making them ideal for demanding industrial applications. One of the key benefits is the ease of adjusting flow characteristics. In a cage-guided valve, operators can modify flow performance simply by changing the cage, eliminating the need to replace the plug. This flexibility allows for quick adaptation to changing process requirements and improves overall system efficiency.
Another major advantage is simplified maintenance. Unlike traditional globe valves, where plug replacement requires extensive disassembly, decoupling of the plug stem from the actuator, and careful bench-set recalibration, cage-guided valves allow maintenance personnel to replace the cage by merely separating the bonnet from the valve body. This reduces downtime, labor costs, and the risk of damaging internal components during service.
Cage-guided globe valves are also available with balanced and unbalanced plug options, offering versatility for different applications. A balanced plug features ports drilled from top to bottom, equalizing fluid pressure on both sides, reducing actuator torque, and enhancing operational stability. In contrast, an unbalanced plug is better suited for low-pressure scenarios where minimizing weight and cost is a priority. These design options provide engineers with tailored solutions to meet specific flow control, performance, and operational requirements efficiently.
Cage-guided globe valves are widely used in sectors requiring precise control, high durability, and operational safety:
Oil & Gas: Pipeline flow regulation, refinery process control, and high-pressure gas systems.
Power Generation: Steam control in turbines, cooling water systems, and nuclear plant applications.
Chemical & Petrochemical: Corrosive or erosive fluid handling, reactor feed control, and solvent management.
Water & Wastewater: Treatment plant flow regulation, high-pressure pumping stations, and sludge handling.
Industrial Manufacturing: Heat exchangers, chemical reactors, and high-precision mixing systems.
Proper maintenance of cage-guided globe valves is essential to ensure long-term reliability, optimal performance, and minimal operational downtime. One of the first steps in routine maintenance is regular inspection, which includes checking for leakage, monitoring actuator performance, and verifying the integrity of the cage and internal components. Early detection of issues helps prevent costly unplanned shutdowns and extends valve lifespan.
A significant advantage of cage-guided valves is ease of trim replacement. The cage can be replaced quickly by separating the bonnet from the valve body, minimizing maintenance time and reducing disruption to operations. This is far simpler compared to traditional plug replacement in stem-guided or port-guided valves, which requires disassembly, plug-stem decoupling, and bench-set recalibration.
Seal and packing inspections are critical to prevent fugitive emissions and maintain tight shutoff performance, ensuring compliance with environmental and safety standards. For valves that are not cage-guided, bench-set calibration is necessary after plug replacement to guarantee proper seating pressure and stroke accuracy.
Additionally, proper lubrication and maintenance of corrosion-resistant coatings are vital to ensure smooth plug movement, prevent erosion or wear, and enhance overall valve longevity. Following these maintenance practices ensures that cage-guided globe valves operate efficiently, safely, and reliably under demanding industrial conditions.
Cage-guided globe valves represent a critical advancement in industrial flow control, offering enhanced stability, improved flow regulation, and simplified maintenance. With growing demand across oil & gas, power generation, water treatment, and chemical industries, these valves are becoming a standard choice for high-pressure, high-temperature, and precision applications.
Selecting the right valve requires careful consideration of technical specifications, compliance requirements, performance metrics, cost-efficiency, integration capabilities, and after-sales support. Manufacturers and end-users benefit from advancements such as smart IIoT-enabled valves, additive-manufactured trim components, and advanced coatings for erosion and corrosion resistance.
With their robust design, adaptability, and ease of maintenance, cage-guided globe valves not only ensure operational efficiency but also contribute to energy savings, environmental compliance, and safety assurance. As industrial demands grow and processes become more complex, these valves are poised to play a pivotal role in shaping the future of flow control technology.
