Bellows Seal Gate Valve: Reliable Sealing for Critical Industrial Systems

In industrial systems where fluid or gas containment is crucial, ensuring the integrity of pipelines and valves is a top priority. Leaks can result in not only product loss but also safety hazards, environmental contamination, and regulatory violations. One of the most trusted solutions to mitigate leakage risks is the use of bellows seal gate valves. These valves are engineered with a specialized bellows mechanism that provides a hermetic seal, making them highly suitable for applications that require zero leakage, such as in the chemical, petrochemical, power generation, and pharmaceutical industries.

This article explores what a bellows seal gate valve is, how it works, its technical characteristics, the key precautions for use, and why it's a preferred choice in critical industrial processes.

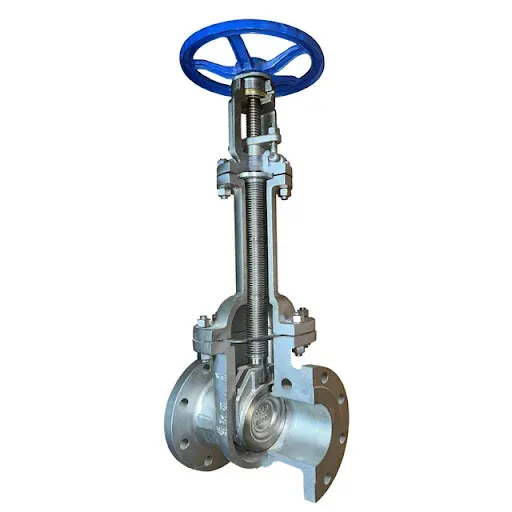

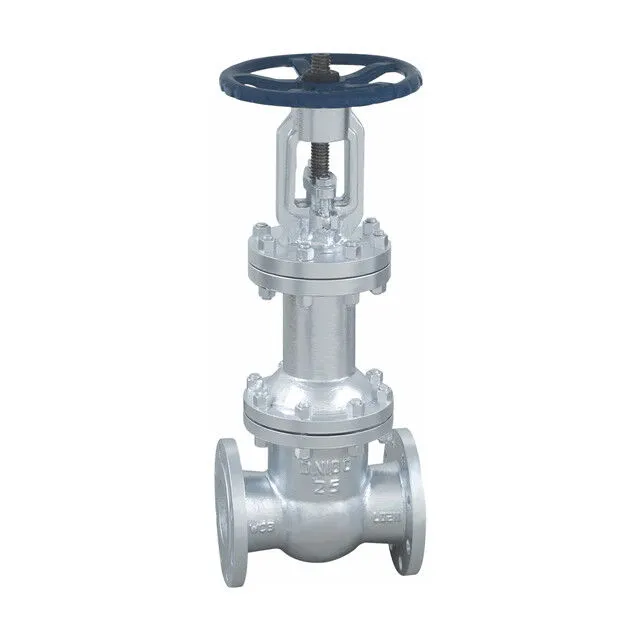

A bellows seal gate valve is a type of gate valve designed to provide a reliable, leak-proof seal around the valve stem by using a metal bellows element. This valve differs from conventional gate valves in that it eliminates the risk of fluid leakage through the stem packing—a common issue in traditional designs—by enclosing the stem with a metallic bellows that is welded both to the valve stem and to the valve bonnet. This structure forms a sealed system that effectively prevents any escape of process fluid or gas to the external environment.

Bellows seal gate valves are typically fabricated from corrosion-resistant metals like stainless steel, carbon steel, or special alloys, making them suitable for aggressive media and extreme temperature conditions. Their structure is robust and engineered for long-term operation with minimal maintenance. Depending on the application, these valves may include additional safety features such as secondary stem packing, leak detection ports, and pressure relief mechanisms.

The operational principle of a bellows seal gate valve revolves around the use of a bellows assembly, which is a multi-layered, accordion-like metallic tube. This bellows assembly is welded at one end to the valve bonnet and at the other end to the valve stem. As the valve stem moves up or down to open or close the gate, the bellows expands or compresses accordingly, maintaining a hermetic seal throughout the stem travel.

The key functionality of the bellows is to isolate the process medium from the external environment. In conventional gate valves, the stem penetrates through the packing gland, creating a potential path for leakage. Bellows eliminate this vulnerability by completely enclosing the stem within a sealed metal barrier. In addition to stem sealing, bellows seal gate valves offer all the performance benefits of a standard gate valve—such as minimal pressure drop, bidirectional sealing, and suitability for full open/full close applications.

Here’s a simplified overview of how the valve operates:

Open Position: The actuator or handwheel lifts the stem, retracting the gate and allowing the fluid or gas to flow freely.

Closed Position: The stem pushes the gate down until it seats against the valve body, blocking flow. Throughout the operation, the bellows flexes with the stem while maintaining a sealed barrier.

The use of bellows seal gate valves offers multiple advantages over conventional stem-sealed valves:

The primary advantage is the elimination of stem leakage. This makes the valve ideal for toxic, volatile, or radioactive media where leakage must be avoided at all costs.

Bellows seal gate valves are often used in hazardous environments where safety is paramount. Their hermetically sealed design helps protect plant personnel and the surrounding environment from exposure to dangerous substances.

Thanks to their durable construction and reduced friction wear, bellows seal valves can offer an extended operational lifespan with fewer maintenance interventions.

By preventing fugitive emissions, these valves help industries meet strict environmental regulations such as those mandated by the U.S. Environmental Protection Agency (EPA) or EU emission standards.

Since the bellows eliminates the need for conventional packing, the valve requires less routine maintenance and adjustment, translating to lower operational costs.

To ensure the optimal performance and safety of bellows seal gate valves, it is essential to follow specific precautions throughout selection, installation, operation, and maintenance. Below are key considerations:

Choosing the right materials for both the bellows and the valve body is crucial. The selected materials must match the application's operating conditions, including:

Temperature range (high or cryogenic)

Pressure rating

Chemical compatibility with the media

Corrosion resistance and fatigue resistance

For instance, stainless steel bellows are suitable for most chemical applications, but highly corrosive environments may require special alloys like Hastelloy or Inconel.

Also consider whether a single-ply or multi-ply bellows is required. Multi-ply bellows offer greater flexibility and durability, especially under cyclic loading.

Proper installation is key to valve performance and longevity:

Ensure the pipeline is thoroughly cleaned before valve installation to prevent debris from entering the valve chamber.

Install the valve in the correct flow direction as indicated by the arrow on the body.

Maintain correct alignment between the pipeline flanges and the valve flanges to avoid unnecessary mechanical stress on the valve body and bellows.

Improper installation can cause deformation or premature failure of the bellows element.

During operation:

Always operate the handwheel or actuator gradually to avoid sudden pressure surges that may stress the bellows.

Avoid exceeding the recommended number of opening/closing cycles, as bellows have a finite fatigue life.

Monitor valve operation regularly and look for signs of sticking or resistance, which could indicate wear or debris buildup.

For automated systems, consider using torque-limiting actuators to prevent overloading the bellows.

Though bellows seal gate valves are low-maintenance, periodic inspection is still essential:

Check for signs of external leakage or deformation.

Inspect the bellows for corrosion, fatigue cracks, or pressure distortion.

Ensure that the stem and internal components are properly lubricated to minimize friction.

If leakage is detected from the secondary sealing system (such as backup packing), the bellows may be damaged and should be replaced immediately.

In critical applications, it’s advisable to schedule regular diagnostic testing, including helium leak tests or pressure decay tests, to verify sealing performance.

In the event of a bellows rupture or malfunction:

Immediately isolate the valve by closing upstream and downstream shutoff valves.

Vent and drain the valve safely to prevent pressure buildup.

Contact a qualified technician to assess and repair or replace the valve.

For plants handling hazardous or flammable media, always follow emergency shutdown protocols and notify safety personnel.

To extend valve service life, especially in harsh operating environments:

Install vibration dampers or supports to minimize mechanical stress on the valve.

Shield the valve from high temperatures or corrosive splash zones.

Use external insulation or protective housings if necessary.

Bellows seal gate valves are indispensable in industries where leakage prevention is not just desirable but mandatory. Some typical applications include:

Nuclear Power Plants: Where radioactive media must be contained without the slightest leakage.

Petrochemical Plants: To prevent emission of toxic or flammable gases and liquids.

Pharmaceutical Manufacturing: Where contamination of the process or external environment can lead to product rejection or regulatory penalties.

Cryogenic Systems: Where stem seal integrity must be maintained despite drastic temperature changes.

Vacuum Systems: Especially in semiconductor fabrication or research labs, where any leak could compromise the entire operation.

Though bellows seal valves are more expensive, the return on investment becomes evident in applications where failure is not an option.

Bellows seal gate valves represent a robust and reliable sealing solution for mission-critical industrial systems. Their design eliminates one of the most common leakage paths in traditional valves—the valve stem—making them ideal for toxic, flammable, or high-purity fluid control systems.

By choosing the right valve for the application and following proper installation and maintenance protocols, operators can ensure years of safe, leak-free operation. As environmental and safety regulations continue to tighten, the demand for high-integrity sealing solutions like the bellows seal gate valve is only expected to grow.
