Plug valves play a critical role in modern fluid handling systems, offering reliable performance and simplified operation in diverse applications. These valves utilize a plug-shaped closure element that rotates 90 degrees within the valve body to control flow — either enabling or blocking the passage of fluid. With roots tracing back to early valve technology, plug valves remain a dependable choice across industries due to their simple construction and versatile configurations.

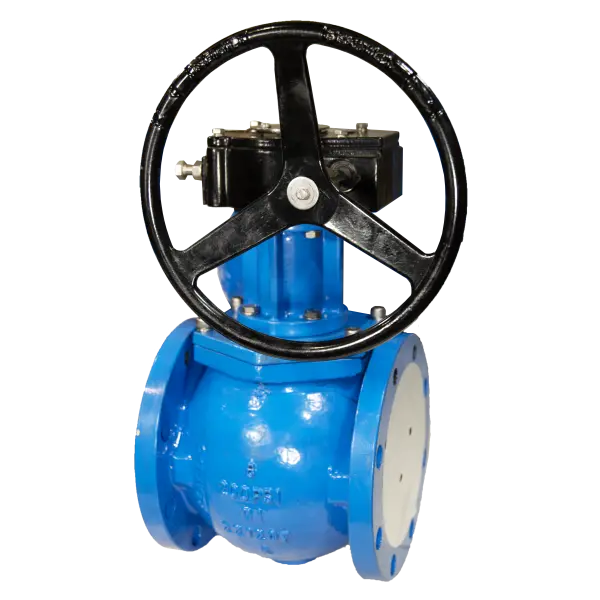

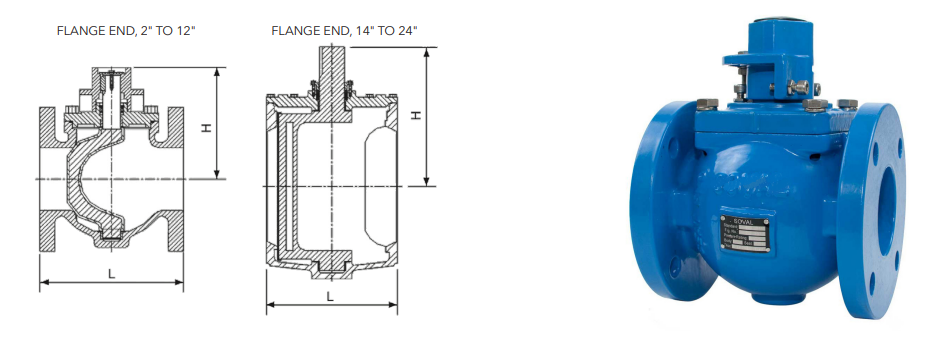

At the core of a plug valve is a rotatable plug that acts as the closing mechanism. The plug is typically designed in either a cylindrical or conical shape. When the plug is turned, its internal passage aligns or misaligns with the valve body passage, allowing for flow or shutoff. This straightforward 90-degree rotational movement offers a quick and reliable method of opening or closing the valve, making it particularly suitable for on-off operations and flow direction changes.
The internal flow passages in plug valves vary based on plug shape. Cylindrical plugs generally feature rectangular ports, while conical plugs often have trapezoidal ones. These internal geometries are designed for efficient flow with minimal resistance, all while maintaining a compact and robust valve body.
While primarily used for isolation and diversion purposes, plug valves can be adapted for throttling applications, depending on the specific characteristics of the media and the erosion resistance of the valve’s sealing surfaces.
To ensure safety and effectiveness, plug valves undergo a series of standardized tests before being deployed in the field. These tests verify the mechanical strength and sealing performance of the valves under controlled conditions. Below are the commonly adopted procedures:
The strength test is designed to evaluate the mechanical integrity of the valve body. During this procedure:
The test medium is introduced from one end of the valve.
All other ports are sealed off.
The plug is rotated through all its open positions to ensure structural soundness across its full range of motion.
The valve body must remain leak-free throughout the test for the unit to be certified as structurally sound.
Sealing integrity is paramount in ensuring that the valve does not leak during operation. For this:
In a straight-through plug valve, the internal cavity is pressurized to match the inlet pressure.
The plug is rotated to the closed position, and leakage is monitored at the outlet.
After the first test, the plug is rotated 180°, and the procedure is repeated from the opposite end.
In three-way or four-way plug valves, sealing tests involve maintaining pressure from one flow path and checking for leakage at the alternate ports while the plug is in the closed position.
Before conducting sealing tests, a thin layer of non-acidic lubricating oil may be applied to the sealing surfaces to enhance sealing and simulate actual working conditions. The appearance of slight water droplets or minimal leakage within prescribed time limits is considered acceptable, based on valve size and testing standards. Generally, testing durations for plug valves range from one to three minutes depending on their nominal diameter.
4. Gas Valve Air Tightness Test
For plug valves designed for gas systems, air tightness testing is conducted at 1.25 times the rated working pressure. This ensures that the valve can maintain pressure under demanding gas service conditions without leakage.
Plug valves are renowned for their:
Low fluid resistance
Fast actuation (quarter-turn operation)
Simplicity of design
Capability for multi-port configuration
These features make them ideal for use in pipelines that require quick shutoff, flow direction changes, and flow distribution with minimal disruption.
In complex pipeline systems, the use of multi-way plug valves (such as two-way, three-way, or four-way designs) simplifies piping layouts by reducing the number of valves and fittings required. This design efficiency not only saves space but also lowers the risk of leakage and maintenance challenges associated with multiple connection points.
Despite modern innovations in valve technology, plug valves continue to be a go-to choice in systems involving low pressures, moderate temperatures, and frequent actuation.
Selecting a plug valve should be based on both its structural attributes and the application's technical requirements. Below are some practical guidelines for selecting appropriate plug valves across various industries and use cases:
For pipelines where fluid distribution and directional control are required (especially where working temperatures do not exceed 300°C and pressures remain at PN ≤ 1.6 MPa):
Recommended valve type: Multi-way plug valves
Suitable size range: Nominal diameters up to 300 mm
Common uses: Municipal water systems, low-pressure process pipelines
In sanitary applications such as dairy, beer, or fruit juice production lines:
Recommended valve type: Austenitic stainless steel plug valves with fixed conical plugs
Key benefit: Corrosion resistance and hygiene
Common uses: Food processing, pharmaceutical manufacturing
In branch pipelines and refinery processing systems handling oil or natural gas:
Recommended valve type: Oil-sealed conical plug valves
Pressure class: Up to Class 300
Nominal diameter: Up to 300 mm
Features: Enhanced sealing using grease injection for tight shutoff
In high-pressure systems common in natural gas extraction:
Recommended valve type: High-class oil-sealed conical plug valves
Pressure class: Up to Class 7500
Nominal diameter: Up to 900 mm
Temperature limits: Up to 340°C
Use case: Long-distance oil and gas pipelines, gathering stations
In chemical plants dealing with aggressive fluids like nitric or acetic acid:
Recommended valve types:
For nitric acid: PTFE sleeve-sealed conical plug valves
For acetic acid: Cr18Ni12Mo2Ti stainless steel-lined PTFE sleeve-sealed conical plug valves
Advantages: High corrosion resistance, reliable sealing, and fast actuation
Common industries: Fertilizer production, petrochemical processing
For gas supply lines, HVAC systems, and compressed air pipelines:
Recommended valve type: Packed conical plug valves
Nominal diameter limit: Up to 200 mm
Features: Compact size, reliable sealing
Use case: Heating systems, building utilities, compressed air networks
Despite the increasing prevalence of modern ball and butterfly valves, plug valves continue to maintain a distinct presence in industrial and commercial systems due to their unique advantages:
Quarter-turn operation offers fast shutoff capability.
Simple maintenance and robust design enable long-term reliability.
Multi-port options improve system flexibility and reduce installation complexity.
Effective sealing under moderate to high pressure ensures safety and efficiency.
Modern advancements, such as oil-sealed and PTFE-lined designs, have significantly extended the application range of plug valves. These innovations provide improved corrosion resistance, reduced operating torque, and extended lifecycle in harsh environments.
Plug valves offer a well-balanced combination of simplicity, efficiency, and performance across a wide spectrum of applications — from food processing and HVAC to high-pressure oil and gas fields. As industries continue to seek reliable flow control solutions that minimize maintenance and installation complexity, the plug valve remains a time-tested and cost-effective option.
By understanding the appropriate selection criteria, structural differences, and rigorous testing standards associated with plug valves, operators and engineers can ensure optimal performance and safety in their pipeline systems.
As innovation continues, plug valves will likely evolve with new materials and automation-friendly features — but their fundamental design and reliable operation will keep them relevant well into the future.
