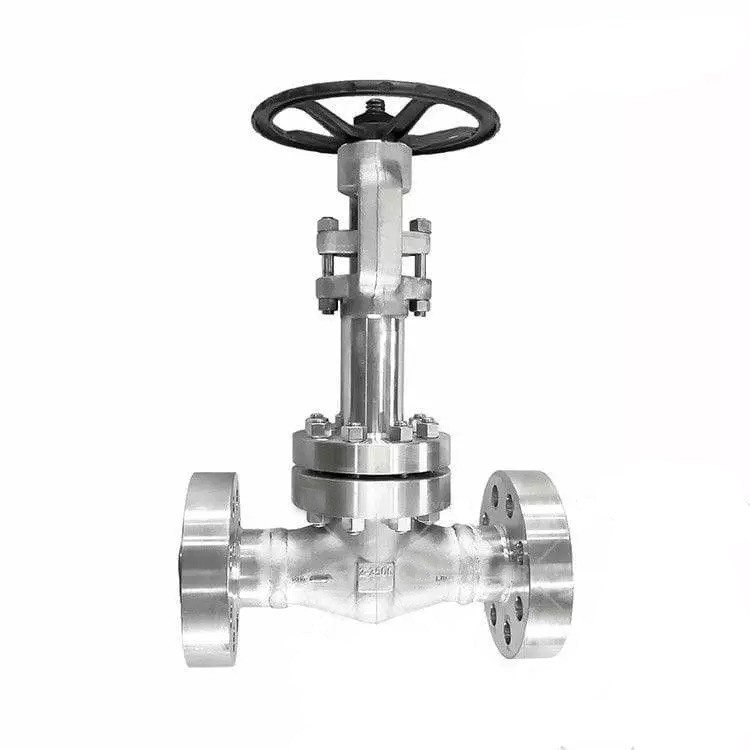

Low Temperature Gate Valve, ASTM A182 F316L, 2 Inch, 2500 LB

Low Temperature Gate Valve, ASTM A182 F316L, 2 Inch, 2500 LB

Key Specifications / Features

Model No.: WV-231219-AGV-24 Hits: 1

As a premier High-Pressure Low Temperature Gate Valve producer, we specialize in delivering precision-engineered solutions for demanding environments. Our 2-inch valves, crafted from durable ASTM A182 F316L material, are designed for Class 2500 LB and PN420 applications, ensuring optimal performance in high-pressure and low-temperature conditions.

Request a quote

Detail Information

Name: High-Pressure Low-Temperature Forged Steel Gate Valve
Size: 2 Inch, DN50
Pressure: Class 2500 LB, PN420
Material: Forged Steel
Standard: API 602, BS 5352
Temperature Of Media: -54℃ To 232℃
Connection: Socket Weld, RF Flange, FNPT, RTJ Flange, BW
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Item Forged Steel Cryogenic Gate Valve
Type Gate Valve
Certification ISO9001,ISO14001,ISO18001,CE,TS
Model number Z41Y-2500LB-DN50
Port Size 2''
Pressure 2500LB
Temperature -196-300℃
Connection form RF FLANGE
Body material Forged steel ASTM A182 F316L
Feature Easy disassembly and assembly
