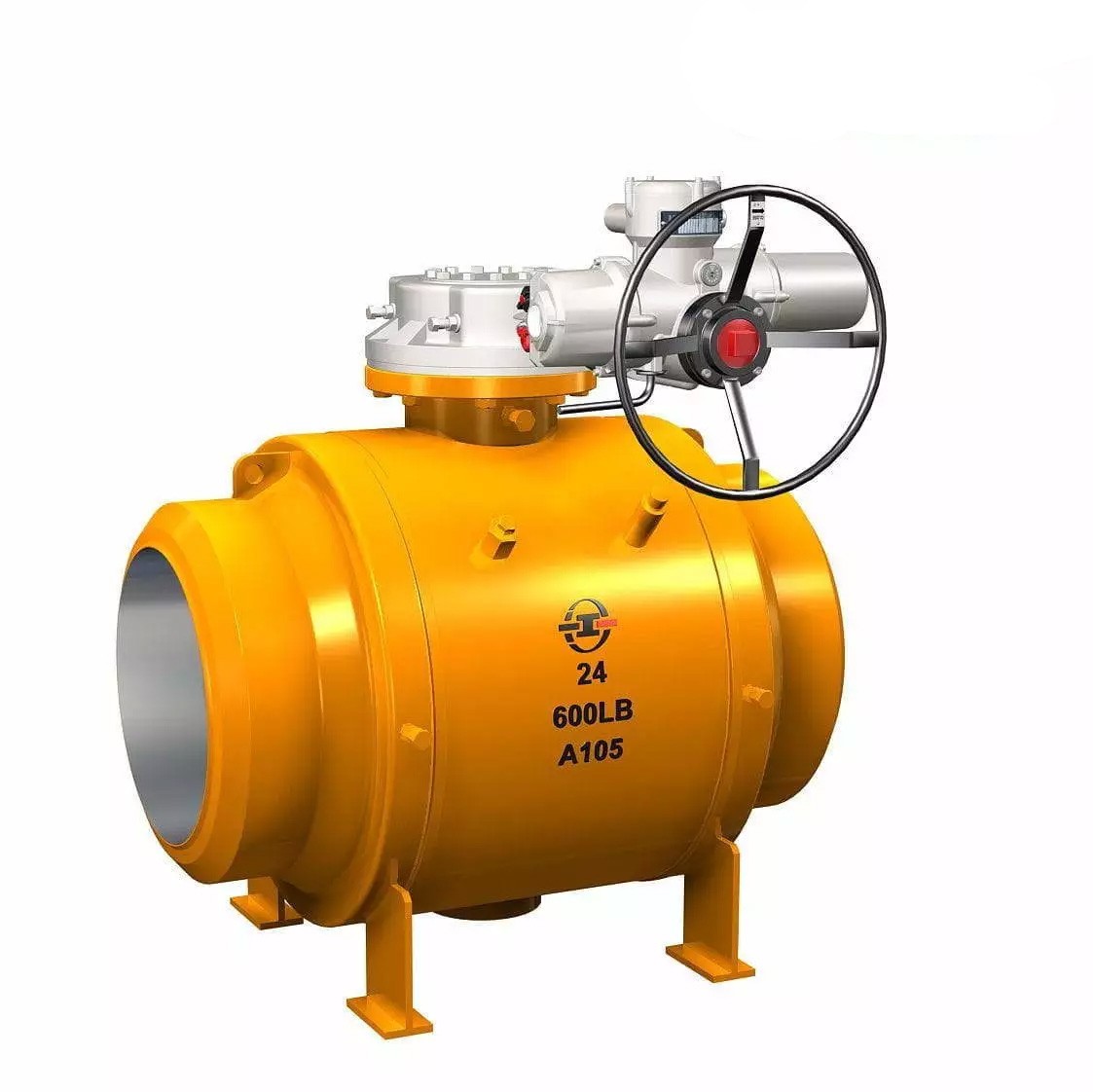

Fully Welded Floating Ball Valve, ASTM A105, 24 Inch, 600 LB
Key Specifications / Features
Model No.: WV-240103-FBV-04 Hits: 5
As a premier Fully Welded Floating Ball Valve Fabricator, we specialize in crafting top-quality valves that meet the highest standards. Our valves, designed in compliance with API 6D and ASTM A105, boast a substantial size of 24 inches and a Class 600 LB rating, making them ideal for demanding applications.
Request a quoteTags:
Detail Information
Size: 24 Inch, DN600
Pressure: Class 600 LB, PN100
Material: ASTM A105
Standard: API 6D
Test: API 598
End Connection: Butt Welded
Temperature Range: -196℃ - 650℃
Feature: Self Cavity Pressure Relief Floating Ball Valve, Anti Static Floating Ball Valve
Product Range
Size Range: 3 Inch - 40 Inch
Rating: ASME CL150, CL300, CL600, CL900, CL1500
Body Material: ASTM A105, F304, F316, LF2, F11, F22
Operation: Electric, pneumatic, manual, lever, wrench, gear, hydraulic
Applicable Standards:
Ball Valve design according to API 6D, ISO 17292, ASME B16.34
Face to Face ASME B16.10, API 6D
Butt Welded ends ASME B16.25
Fire Safety ISO 10497, API 607, API 6FA, BS 6755-2
Inspection and test API 598, API 6D
Pressure: Class 600 LB, PN100
Material: ASTM A105
Standard: API 6D
Test: API 598
End Connection: Butt Welded
Temperature Range: -196℃ - 650℃
Feature: Self Cavity Pressure Relief Floating Ball Valve, Anti Static Floating Ball Valve
Product Range
Size Range: 3 Inch - 40 Inch
Rating: ASME CL150, CL300, CL600, CL900, CL1500
Body Material: ASTM A105, F304, F316, LF2, F11, F22
Operation: Electric, pneumatic, manual, lever, wrench, gear, hydraulic
Applicable Standards:
Ball Valve design according to API 6D, ISO 17292, ASME B16.34
Face to Face ASME B16.10, API 6D
Butt Welded ends ASME B16.25
Fire Safety ISO 10497, API 607, API 6FA, BS 6755-2
Inspection and test API 598, API 6D
