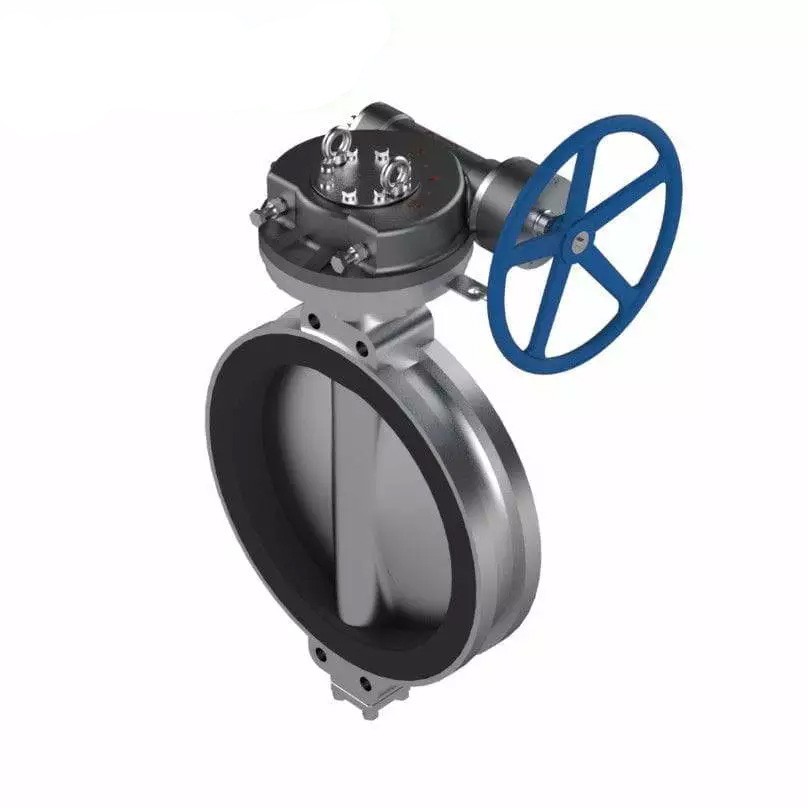

EN 593 Concentric Butterfly Valve, CF8, 2-60 Inch, 150 LB
Key Specifications / Features
Model No.: WV-240105-CBFV-04 Hits: 93
As a reputable manufacturer of EN 593 Concentric Butterfly Valves, we offer a comprehensive range in sizes from 2 to 60 inches. These valves, constructed with ASTM A351 CF8 and CF8M materials, boast a Class 150 LB rating, DN50-DN1500 dimensions, PN20 pressure, and are equipped with a rubber-lined design. The valves are designed for reliable performance and are operated seamlessly with a gearbox.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Material: Anti Corrosive Polymer
Standard: EN 593
Size Range: 2 Inch - 60 Inch
Pressure Rating: ASME Class 150 LB
Test: API 598, EN 12266
Temperature Range: 0℃-180℃
End Connection: Flanged, Wafer, Lug
Product Range
Body Material: Cast iron, ductile iron, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M
Operation: gearbox, electric, pneumatic, hydraulic
Applicable Standards:
Butterfly valve design according to API 609, ASME B16.34, EN 593
Face to face ASME B16.10, API 609
End Flanges ASME B16.5, ASME B16.47
Inspection and testing API 598, EN 12266
Design Feature:
Low friction between seat and disc of the valve
Zero Leakage Sealing Design
One-Piece Shaft
Low torque enables the compact actuator and a long cycle life
Blow-out proof shaft
Optional stem extension
Optional locking device
Concentric rubber lined butterfly valve isolates the valve body from the media, using superiorly anti-corrosive polymer material
Standard: EN 593
Size Range: 2 Inch - 60 Inch
Pressure Rating: ASME Class 150 LB
Test: API 598, EN 12266
Temperature Range: 0℃-180℃
End Connection: Flanged, Wafer, Lug
Product Range
Body Material: Cast iron, ductile iron, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M
Operation: gearbox, electric, pneumatic, hydraulic
Applicable Standards:
Butterfly valve design according to API 609, ASME B16.34, EN 593
Face to face ASME B16.10, API 609
End Flanges ASME B16.5, ASME B16.47
Inspection and testing API 598, EN 12266
Design Feature:
Low friction between seat and disc of the valve
Zero Leakage Sealing Design
One-Piece Shaft
Low torque enables the compact actuator and a long cycle life
Blow-out proof shaft
Optional stem extension
Optional locking device
Concentric rubber lined butterfly valve isolates the valve body from the media, using superiorly anti-corrosive polymer material
