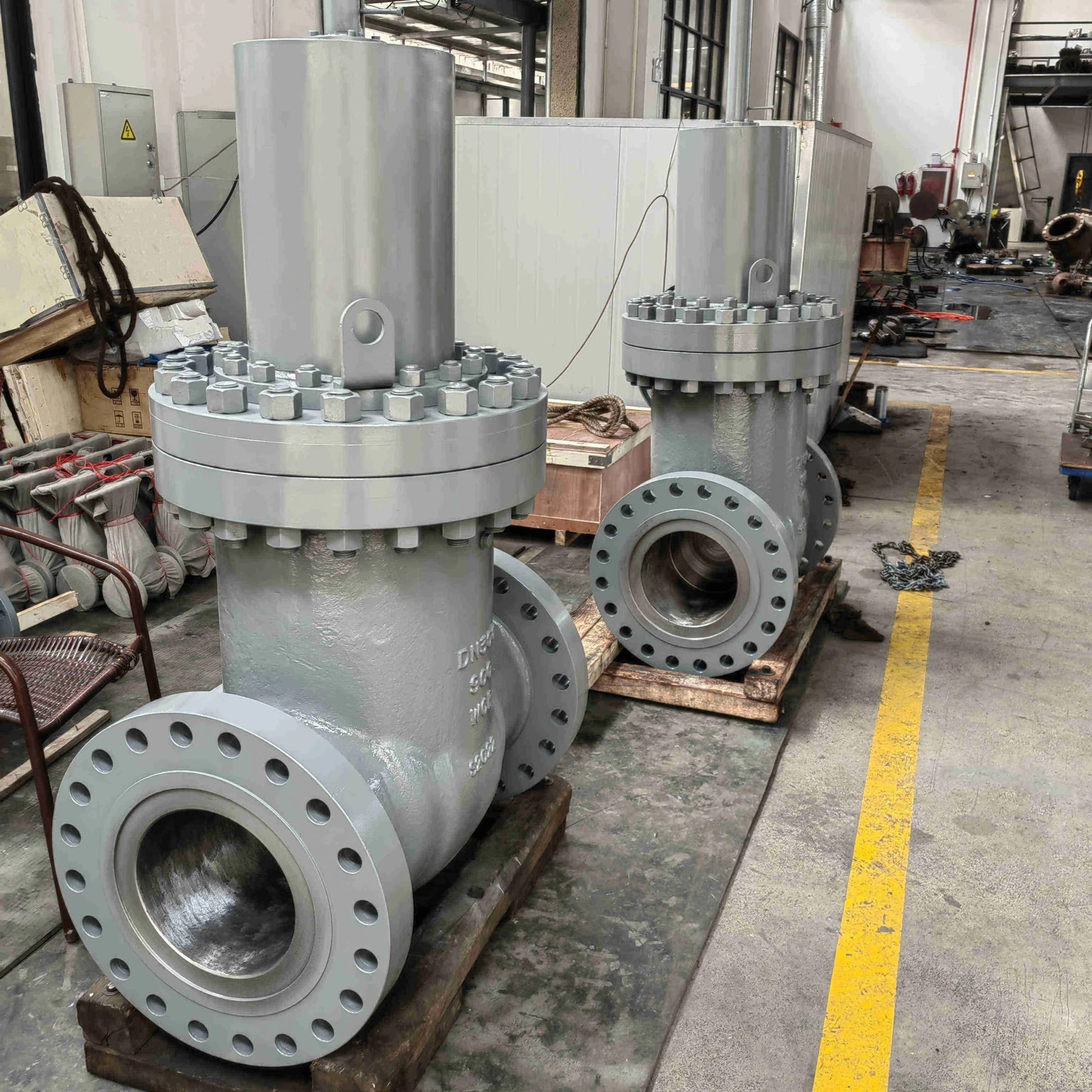

Double Disc Double Seal Pulp Gate Valve, WCB, 12 IN, 900 LB
Key Specifications / Features
Model No.: WV-231228-AGV-01 Hits: 39
As a distinguished Wear-resistant Double Disc Double Seal Pulp Gate Valve Maker, we are proud to offer a robust solution for your fluid control needs. Our 12-inch valve, crafted from ASTM A216 WCB material, is engineered for wear resistance and durability. With a Class 900 LB rating and adherence to the GB/T 12234-2007 standard, this gate valve ensures optimal performance in challenging pulp applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: GB/T 12234-2007.
Body: ASTM A216 WCB
Nominal size: DN300.
Nominal class: 900 LB.
End Connection: RF.
Face to face: GB/T 12221.
Test and inspection: JB/T 9092.
Product Range:
Body material: Carbon Steel.
Normal diameter: DN50 - DN800.
End connection: BW, Flanged.
Pressure range: PN10 - PN160.
Working temperature: -29℃ - +200℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: DN300.
Nominal class: 900 LB.
End Connection: RF.
Face to face: GB/T 12221.
Test and inspection: JB/T 9092.
Product Range:
Body material: Carbon Steel.
Normal diameter: DN50 - DN800.
End connection: BW, Flanged.
Pressure range: PN10 - PN160.
Working temperature: -29℃ - +200℃.
Technical parameters and characteristics
| Product | Wear-resistant double disc double seal pulp gate valve. |
| Nominal diameter | DN50 - DN800. |
| Design temp. | Down to -29℃. |
| Design pressure | PN16 - PN160. |
| Material | Carbon Steel. |
| Design standard | GB/T 12234. |
| Face to face | GB/T 12221. |
| Connection end | BW, Flange. |
| Test standard | JB/T 9092. |
| Package | Plywood |
| Application | Dry dust. |
