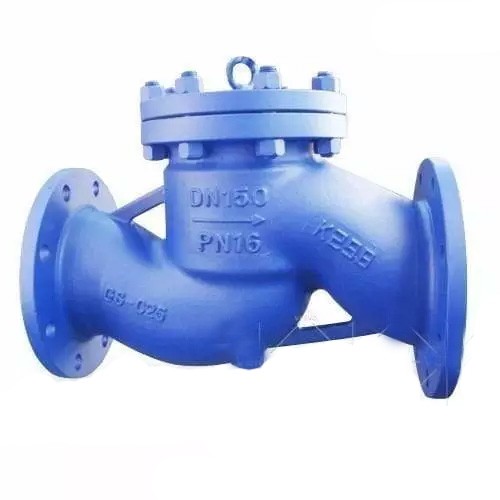

DIN 3356 Lift Check Valve, DIN GS-C25, DN150, PN16, RF End
Key Specifications / Features
Model No.: WV-240104-DSCV-01 Hits: 15
As a distinguished manufacturer, we produce the Lift Ductile Iron Swing Check Valve in accordance with DIN 3356 standards. Constructed from high-quality Carbon Steel ASTM A216 WCB, this valve is designed for optimal performance. With a size of DN150 (6 inches) and operating at PN16 pressure and Class 150 LB, it features Raise Flanged Ends for easy installation in diverse applications.
Request a quoteTags
Detail Information
Design Standard: DIN
Body Material: GS-C25, ASTM A216 WCB
Design standard: DIN 3356
Nominal Diameter: 6 INCH, DN150
Pressure: PN16, 150 LB
End Connection: RF, Flange Ends
Face To Face: DIN 3202
Test And Inspection: EN 12266.1
Working temperature: -29℃ - +400℃
Feature: Backwater Check Valves, Lift ductile iron swing check valve
Product Range
Normal diameter: 2 Inch-60 Inch (DN50-DN1500)
End connection: BW, Flanged
Pressure range: 150 - 2500 LB (PN16-PN420)
Body material: Low-Temperature Carbon Steel, Carbon Steel, Stainless Steel
Body Material: GS-C25, ASTM A216 WCB
Design standard: DIN 3356
Nominal Diameter: 6 INCH, DN150
Pressure: PN16, 150 LB
End Connection: RF, Flange Ends
Face To Face: DIN 3202
Test And Inspection: EN 12266.1
Working temperature: -29℃ - +400℃
Feature: Backwater Check Valves, Lift ductile iron swing check valve
Product Range
Normal diameter: 2 Inch-60 Inch (DN50-DN1500)
End connection: BW, Flanged
Pressure range: 150 - 2500 LB (PN16-PN420)
Body material: Low-Temperature Carbon Steel, Carbon Steel, Stainless Steel
| Performance specification | ||||
| Nominal Pressure | PN10, PN16 | |||
| Testing Pressure | Shell: 1.5 times rated pressure Seat: 1.1 times rated pressure |
|||
| Working Temperature | ≤100°C | |||
| Suitable Media | water, oil, gas, etc. | |||
| Material of main parts | ||||
| Body material | GS-C25 | |||
| Disc material | GS-C25 | |||
| Sealing ring material | NBR, EPDM | |||
| Shaft material | Stainless steel | |||
| Spring material | Stainless steel | |||
