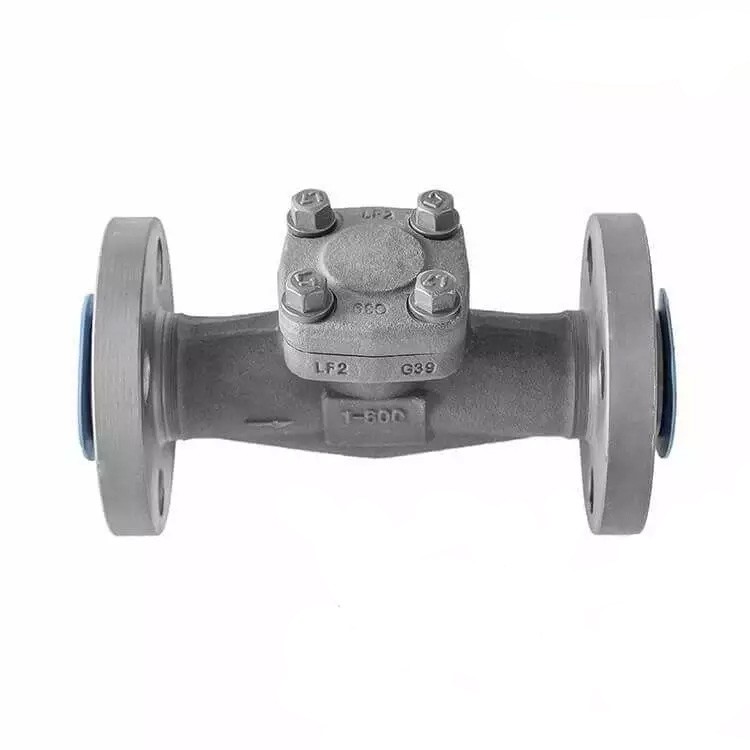

Cryogenic Swing Check Valve, ASTM A350 LF2, 1 Inch, 800 LB
Key Specifications / Features
Model No.: WV-231227-ASCV-07 Hits: 1
Welcome to our cutting-edge Cryogenic Swing Check Valve mill in China, where precision meets innovation. Our 1-inch valve, meticulously crafted from ASTM A350 LF2 material, adheres to the stringent standards of API 602, BS 5352, and ASME B16.34. With a Class 800 LB rating, this valve is engineered for reliable performance in cryogenic applications.
Request a quoteTags:
Detail Information
Design Standard: API 602, BS 5352
Body Material: ASTM A350 LF2
Nominal Diameter: 1 Inch, DN25, 25MM
Pressure: Class 800 LB
End Connection: RF FLANGE
Face To Face: ASME B16.10
Test And Inspection: API 598
Swing check valves
WE provide swing check valves ranging from DN15 to DN600. Our swing check valves are characterized by their convenient maintenance access and can be installed horizontally.
What is a swing check valve?
A swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow. The weight of the disc and the return flow has an impact on the shut-off characteristics of the valve.
Advantages of Our swing check valves
Our swing check valves are designed with focus on easy access to maintenance. By unscrewing a few bolts the bonnet assembly including hinge and disc can be removed from the body, and maintenance can be performed.
Description
metal-seated, forged steel, swing check valves provide superior performance and reliability in a wide range of applications.
Uni-directional shut-off
Size Range: NPS 1/4-4 Inch (DN8-DN100)
Pressure Class: ASME Class 800 LB, 900 LB, 1500 LB, 2500 LB
Body Materials: ASTM A105, ASTM A350 LF2, ASTM A350 LF3, ASTM A350 LF5, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F51, ASTM A182 F53, ASTM A182 F5, ASTM A182 F11, ASTM A182 F22, ASTM A182 F91, Monel, Inconel, Hastelloy
Standards: API 602, NACE MR0175, BS 5354
End Connections: Threaded, Socket Weld, RF Flange, RTJ Flange, Butt Weld
Class 800 Forged Steel Swing Check Valve features a Forged Steel ASTM A350 LF2 body with bolted bonnet and is suitable for a range of applications and media including steam, air, gas and liquids such as thermal oil and water.
Conforming to API 602 and ASME B16.34, this economical and reliable swing check valve offers excellent sealing capabilities in horizontal or vertical positions.
Typical Applications:
Process Lines
Condensate Lines
Hot and Cold Water Systems
Thermal Oil Systems
Typical Industries:
Boiler Plants
Laundries
Steam Plants
Process Plants
Body Material: ASTM A350 LF2
Nominal Diameter: 1 Inch, DN25, 25MM
Pressure: Class 800 LB
End Connection: RF FLANGE
Face To Face: ASME B16.10
Test And Inspection: API 598
Swing check valves
WE provide swing check valves ranging from DN15 to DN600. Our swing check valves are characterized by their convenient maintenance access and can be installed horizontally.
What is a swing check valve?
A swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow. The weight of the disc and the return flow has an impact on the shut-off characteristics of the valve.
Advantages of Our swing check valves
Our swing check valves are designed with focus on easy access to maintenance. By unscrewing a few bolts the bonnet assembly including hinge and disc can be removed from the body, and maintenance can be performed.
Description
metal-seated, forged steel, swing check valves provide superior performance and reliability in a wide range of applications.
Uni-directional shut-off
Size Range: NPS 1/4-4 Inch (DN8-DN100)
Pressure Class: ASME Class 800 LB, 900 LB, 1500 LB, 2500 LB
Body Materials: ASTM A105, ASTM A350 LF2, ASTM A350 LF3, ASTM A350 LF5, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F51, ASTM A182 F53, ASTM A182 F5, ASTM A182 F11, ASTM A182 F22, ASTM A182 F91, Monel, Inconel, Hastelloy
Standards: API 602, NACE MR0175, BS 5354
End Connections: Threaded, Socket Weld, RF Flange, RTJ Flange, Butt Weld
Class 800 Forged Steel Swing Check Valve features a Forged Steel ASTM A350 LF2 body with bolted bonnet and is suitable for a range of applications and media including steam, air, gas and liquids such as thermal oil and water.
Conforming to API 602 and ASME B16.34, this economical and reliable swing check valve offers excellent sealing capabilities in horizontal or vertical positions.
Typical Applications:
Process Lines
Condensate Lines
Hot and Cold Water Systems
Thermal Oil Systems
Typical Industries:
Boiler Plants
Laundries
Steam Plants
Process Plants
