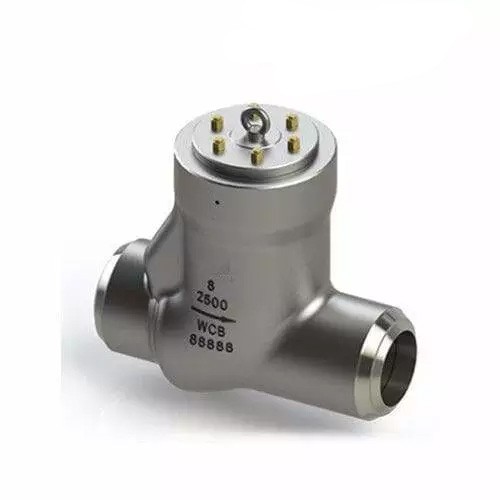

BS 1868 Check Valve, ASTM A216 WCB, 8 Inch, 2500 LB, BW End
Key Specifications / Features
Model No.: WV-240104-ASCV-01 Hits: 4
Experience top-tier quality with our ASTM A216 WCB Check Valve. Crafted in adherence to BS 1868, API 6D, and ASME B16.34 standards, this valve, with its 8-inch size, DN200, Class 2500 LB, PN420, and BW Ends, is engineered for excellence. Boasting Pressure Seal and Test BS 12266, it ensures reliability and performance in critical applications.
Request a quoteTags:
Detail Information
Size: 8 Inch, DN200
Pressure: Class 2500 LB, PN420
Material: ASTM A216 WCB
Standard: BS 1868, ASME B16.34, API 6D
End Connection: BW End
Test And Inspection: BS 12266, API 598
Feature: Sealed Check Valve, flanged check valve, Pressure check valve
Product Range
Nominal Diameter: NPS 2-36 Inch
Pressure: Class 900-2500 LB
Body Material: WCB, WCA, WCC, WC6, WC9, C12, C5, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C
Design Standard: BS 1868, ASME B16.34, API 6D
End Connection: ASME B16.15, ASME B16.47,(DIN 2501)
Face To Face: ASME B16.10, API 6D, EN 588 (DIN 3202)
Pressure: Class 2500 LB, PN420
Material: ASTM A216 WCB
Standard: BS 1868, ASME B16.34, API 6D
End Connection: BW End
Test And Inspection: BS 12266, API 598
Feature: Sealed Check Valve, flanged check valve, Pressure check valve
| Size | NPS 2" - 36" |
|---|---|
| Pressure Rating | Class 900 - 2500 LB |
| Material | WCB,WCA,WCC,WC6,WC9,C12,C5,LCB,,LCC,CF8,CF8M,CF3,CF3M,CN7M,CF8C |
| Design & Manufacturing Standard | BS 1868, ASME B16.34, API 6D |
| Face to Face | ASME B16.10,API 6D,EN 588(DIN 3202) |
| Flanged Dimension | ASME B16.15,ASME B16.47,(DIN 2501) |
| Butt weld dimensions | ASME B 16.25 |
| Pressure-temperature | ASME B 16.34 |
| Test and Inspection | BS 12266, API 598 |
Product Range
Nominal Diameter: NPS 2-36 Inch
Pressure: Class 900-2500 LB
Body Material: WCB, WCA, WCC, WC6, WC9, C12, C5, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C
Design Standard: BS 1868, ASME B16.34, API 6D
End Connection: ASME B16.15, ASME B16.47,(DIN 2501)
Face To Face: ASME B16.10, API 6D, EN 588 (DIN 3202)
