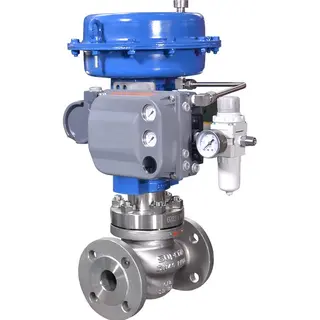

Bellows Single Seat Control Valve, WCC, 1-1/2-12 IN, 150-600 LB
Key Specifications / Features
Model No.: WV-240126-CTV-05 Hits: 1
s your trusted Bellows Sealed Globe Control Valve provider, we specialize in delivering top-quality solutions. Crafted from robust Carbon Steel ASTM A216 WCC, our valves are designed for durability and optimal performance in demanding applications. With a size range from 1-1/2 to 12 inches and class ratings spanning 150 to 600 LB, our Globe Control Valve caters to diverse industrial needs.
Request a quoteTags:
Detail Information
Nominal Size: DN40-DN300, 1-1/2 - 12 Inch
Pressure Rating: PN16-PN100, Class 150-600 LB
Operateing Temperature: -196℃ - 593℃
Characteristics: Equal percentage, linear
Seat Leakage Class: ANSI B16.104
Body Material: ASTM A351 CF8, CF8M, ASTM A216 WCB, WCC, ASTM A352 LCB, ASTM A217 WC6, WC9
Trim Material: 630, 316, 316+ST, 316 nitriding, 316+Ni60, 316+WCB, etc.
Seal Material: PTFE+ graphite v-shaped packing, flexible graphite ring packing, graphite +PTFE braided packing etc.
Pressure Rating: PN16-PN100, Class 150-600 LB
Operateing Temperature: -196℃ - 593℃
Characteristics: Equal percentage, linear
Seat Leakage Class: ANSI B16.104
Body Material: ASTM A351 CF8, CF8M, ASTM A216 WCB, WCC, ASTM A352 LCB, ASTM A217 WC6, WC9
Trim Material: 630, 316, 316+ST, 316 nitriding, 316+Ni60, 316+WCB, etc.
Seal Material: PTFE+ graphite v-shaped packing, flexible graphite ring packing, graphite +PTFE braided packing etc.
