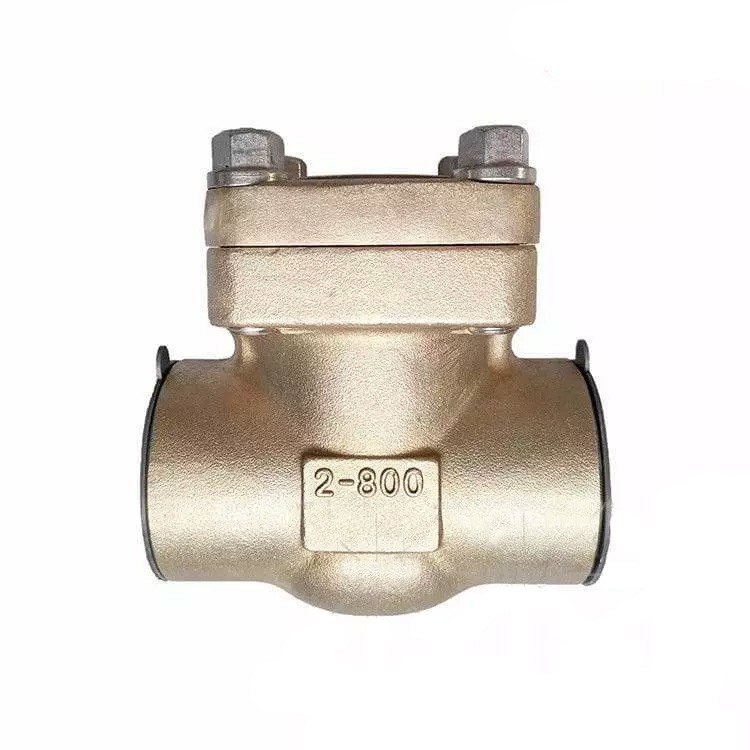

ASTM B148 C95800 Swing Check Valve, 2 Inch, 800 LB, NPT End

ASTM B148 C95800 Swing Check Valve, 2 Inch, 800 LB, NPT End

Key Specifications / Features

Model No.: WV-231221-ASCV-07 Hits: 3

Discover precision fluid control with our API 602 and BS 5354 Swing Check Valve, meticulously crafted at our advanced manufacturing plant in China. Constructed from high-quality Aluminium Bronze ASTM B148 C95800, this valve meets the highest industry standards. Featuring a substantial 2-inch size (DN50), this swing check valve operates seamlessly in Class 800 LB and PN130 environments, making it suitable for various applications.

Request a quote

Detail Information

Product Name: C95800 Forged Steel Swing Check Valves
Design Standard: API 602, BS 5354
Body Material: C95800 Aluminum Bronze
Nominal Diameter: 2 Inch, 10-50mm
Pressure: CLASS 800 LB, 150 LB, 300 LB, 600 LB
End Connection: NPT
Face To Face: Factory STD
Test And Inspection: API 598
Feature: C95800 aluminum bronze swing check valve, aluminum bronze swing check valve 2 Inch, 800# socket weld check valve

Product Range

Nominal Diameter: 10-50mm, DN10-DN50, 3/8-2 Inch
Pressure: CLASS 150 LB, 300 LB, 600 LB, 800 LB
End Connection: Female Thread, Screw, Flanged, Weld, Socket-Welded
