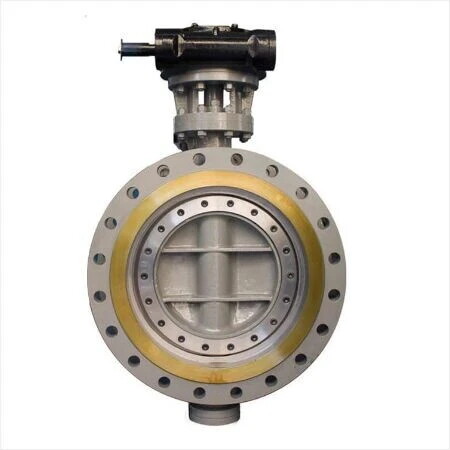

ASTM A351 CF8M Butterfly Valve, 6 Inch, Class 300 LB, RF End
Key Specifications / Features
Model No.: WV-240413-TOBFV-04 Hits: 101
A leading stainless steel butterfly valve fabricator producing high-quality valves to API 609 standards. These valves are 6 inches in size, with a Class 300 LB rating and made from ASTM A351 CF8M. Featuring a triple eccentric design, they are suitable for DN150 sizing and PN50
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Triple Eccentric Butterfly Valve, LUG.
Standard: API 609.
Material: ASTM A351 CF8M
Size: 6 Inch, DN150
Pressure: Class 300 LB, PN50
End Connection: RF.
Face to face: APPI 609.
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 2 - 32 Inch (DN50 - DN800).
End connection: Flanged, WAFER, LUG.
Pressure range: Class 150 - 600 LB (PN16 - PN100).
Working temperature: -29℃ - +300℃.
Technical parameters and characteristics
Standard: API 609.
Material: ASTM A351 CF8M
Size: 6 Inch, DN150
Pressure: Class 300 LB, PN50
End Connection: RF.
Face to face: APPI 609.
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 2 - 32 Inch (DN50 - DN800).
End connection: Flanged, WAFER, LUG.
Pressure range: Class 150 - 600 LB (PN16 - PN100).
Working temperature: -29℃ - +300℃.
Technical parameters and characteristics
| Product | Triple Eccentric Butterfly Valve. |
| Nominal diameter | 2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 600 LB. |
| Material | Stainless steel. |
| Design standard | API 609. |
| Face to face | API 609. |
| Connection end | Flange, WAFER, LUG. |
| Test standard | API 598. |
| Package | Plywood |
| Application | water, oil and gas. |
