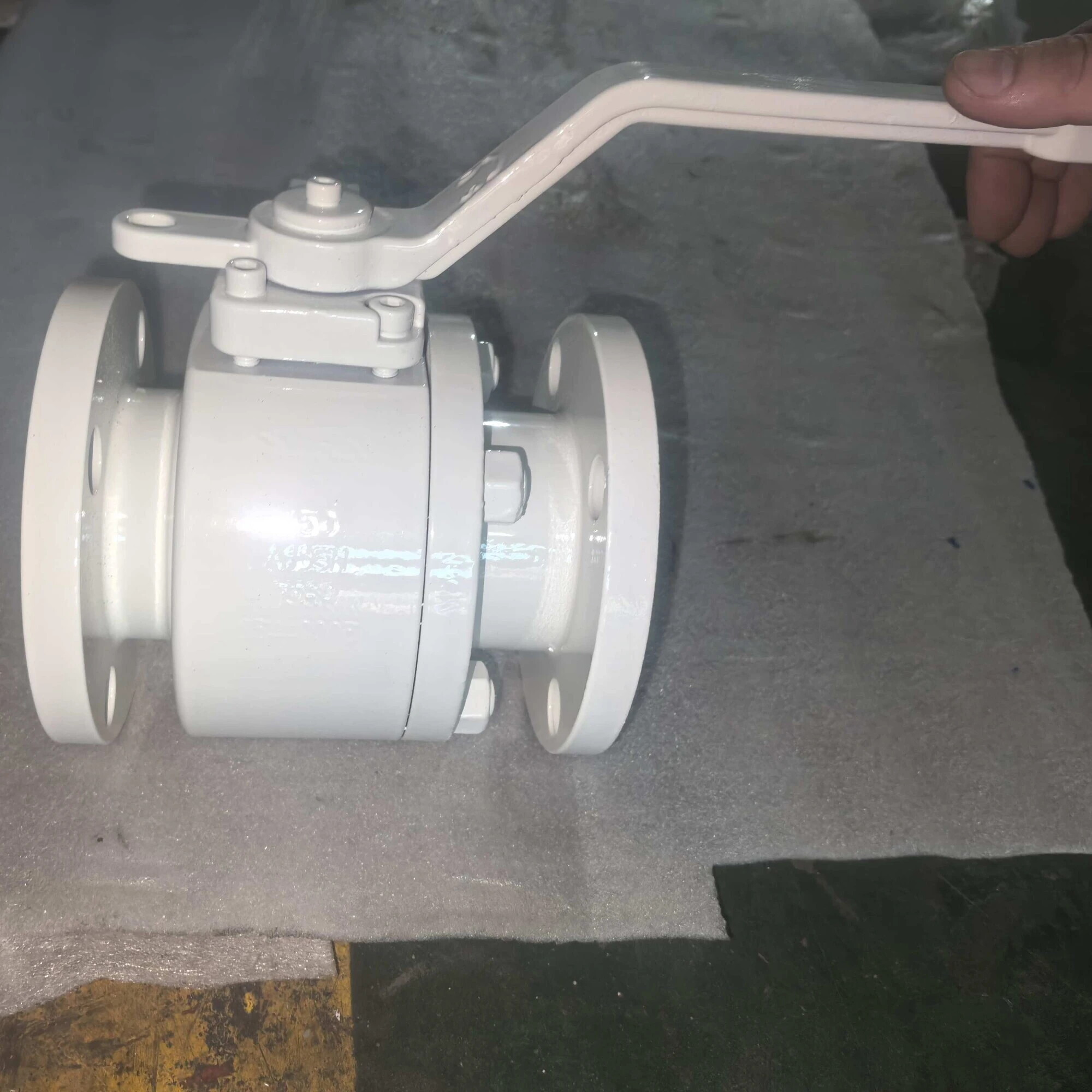

ASTM A105N Ball Valve, 2-PC, API 6D, 2 Inch, 150 LB, RF End
Key Specifications / Features
Model No.: WV-240326-FBV-08 Hits: 1
Supplier of Forged Steel Ball Valves: Our valves are manufactured to the highest standards, featuring ASTM A105N forged steel construction for durability and reliability. With a two-piece design, they are suitable for 2-inch pipelines and meet Class 150 LB specifications as per API 6D standards. Equipped with a bolted bonnet and RF flange end, these valves ensure secure sealing and easy maintenance.
Request a quoteTags:
Detail Information
Design: API 6D.
Material: ASTM A105N
Size: 2 Inch, DN50
Pressure: Class 150 LB, PN20
End Connection: RF
Operation: Lever
Face to face: MFG's.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 2 - 32 Inch (DN50- DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Material: ASTM A105N
Size: 2 Inch, DN50
Pressure: Class 150 LB, PN20
End Connection: RF
Operation: Lever
Face to face: MFG's.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 2 - 32 Inch (DN50- DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
| Product | Ball valve. |
| Nominal diameter | 1/2 - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 6D. |
| Face to face | MFG's. |
| OPERATION | LEVER |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
