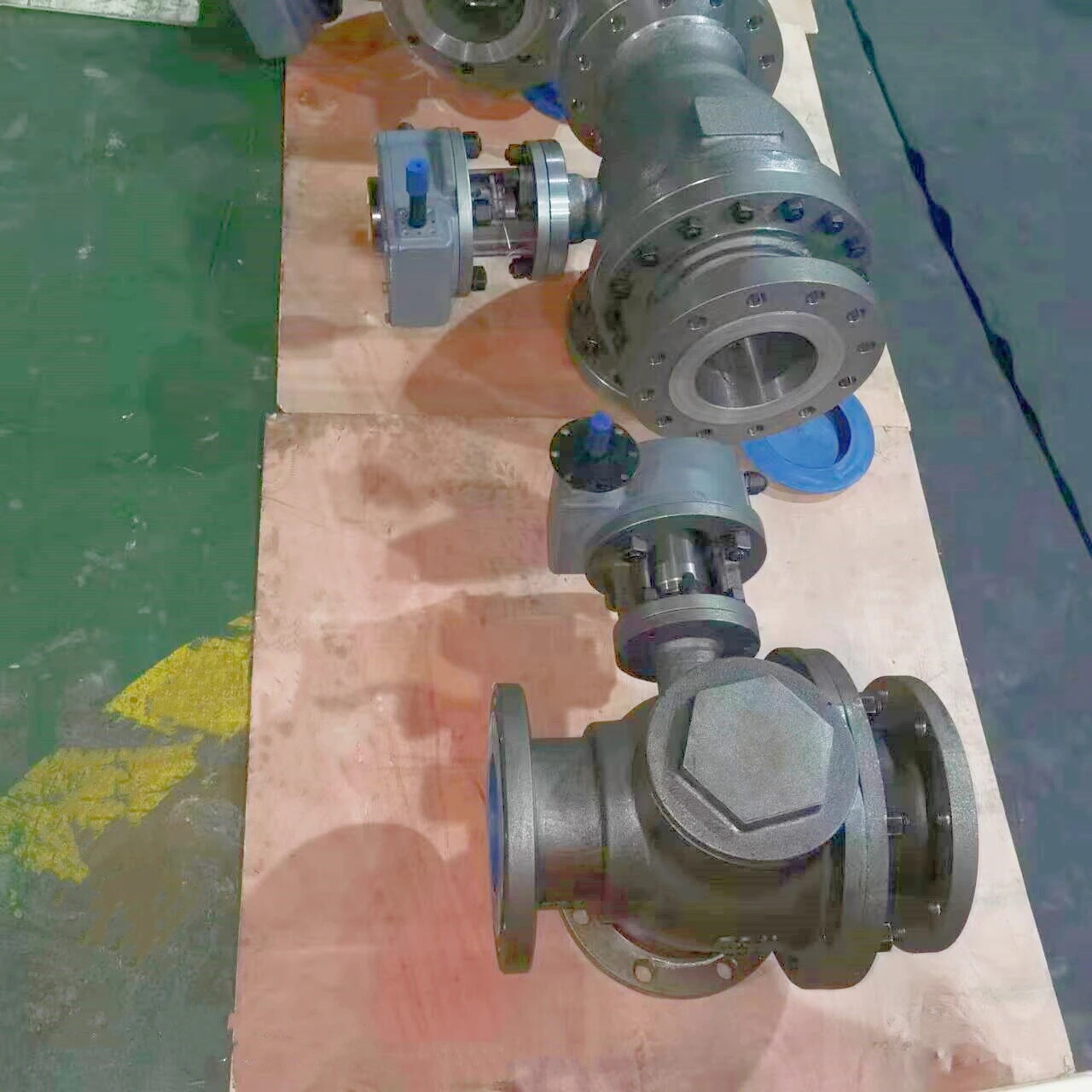

API 6D Bolted Bonnet Ball Valve, ASTM A216 WCB, 2 IN, 300 LB
Key Specifications / Features
Model No.: WV-240326-FBV-09 Hits: 0
We offer Bolted Bonnet Ball Valves manufactured according to API 6D standards. With a size of 2 inches (DN50) and a pressure rating of Class 300 LB (PN50), these valves are constructed from ASTM A216 WCB material. Featuring a soft seal design and gear operating mechanism, our valves ensure reliable performance. They also adhere to Face to Face dimensions as per ASME B16.10 standards.
Request a quoteTags:
Detail Information
Design: API 6D.
Materials: ASTM A216 WCB
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN50
End Connection: RF.
Operation: Gear
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +400℃.
Materials: ASTM A216 WCB
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN50
End Connection: RF.
Operation: Gear
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +400℃.
