ASTM A105 Y Globe Valve, Welded Bonnet, 1-1/2 Inch, 1500 LB
Key Specifications / Features
Model No.: WV-240427-YPGBV-03 Hits: 0

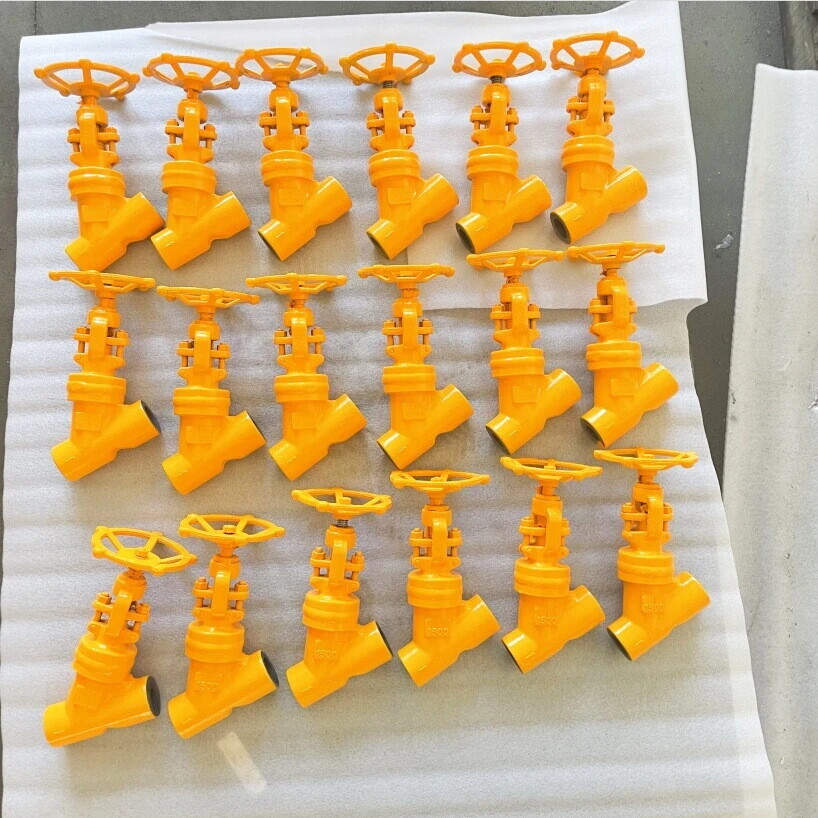

Meet our premier Forged ASTM A105 Y Type Globe Valve, meticulously crafted to meet your stringent requirements. With a compact 1-1/2 inch size and Class 1500 LB rating, this valve is engineered for exceptional performance in high-pressure environments. Compliant with API 602 standards, it ensures precise flow control and reliable operation.
Request a quoteTags:
Detail Information
Y TYPE Globe valve, carbon steel, NPS 1-1/2 Inch, 1500 LB, SW, HANDWHEEL.
Standard: API 602.
Material: ASTM A105
Size: 1-1/2 Inch, DN40
Pressure: Class 1500 LB, PN250
End Connection: SW.
Operation: Handwheel
Face to face: MFG'S.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, SW, RF.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Standard: API 602.
Material: ASTM A105
Size: 1-1/2 Inch, DN40
Pressure: Class 1500 LB, PN250
End Connection: SW.
Operation: Handwheel
Face to face: MFG'S.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, SW, RF.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
