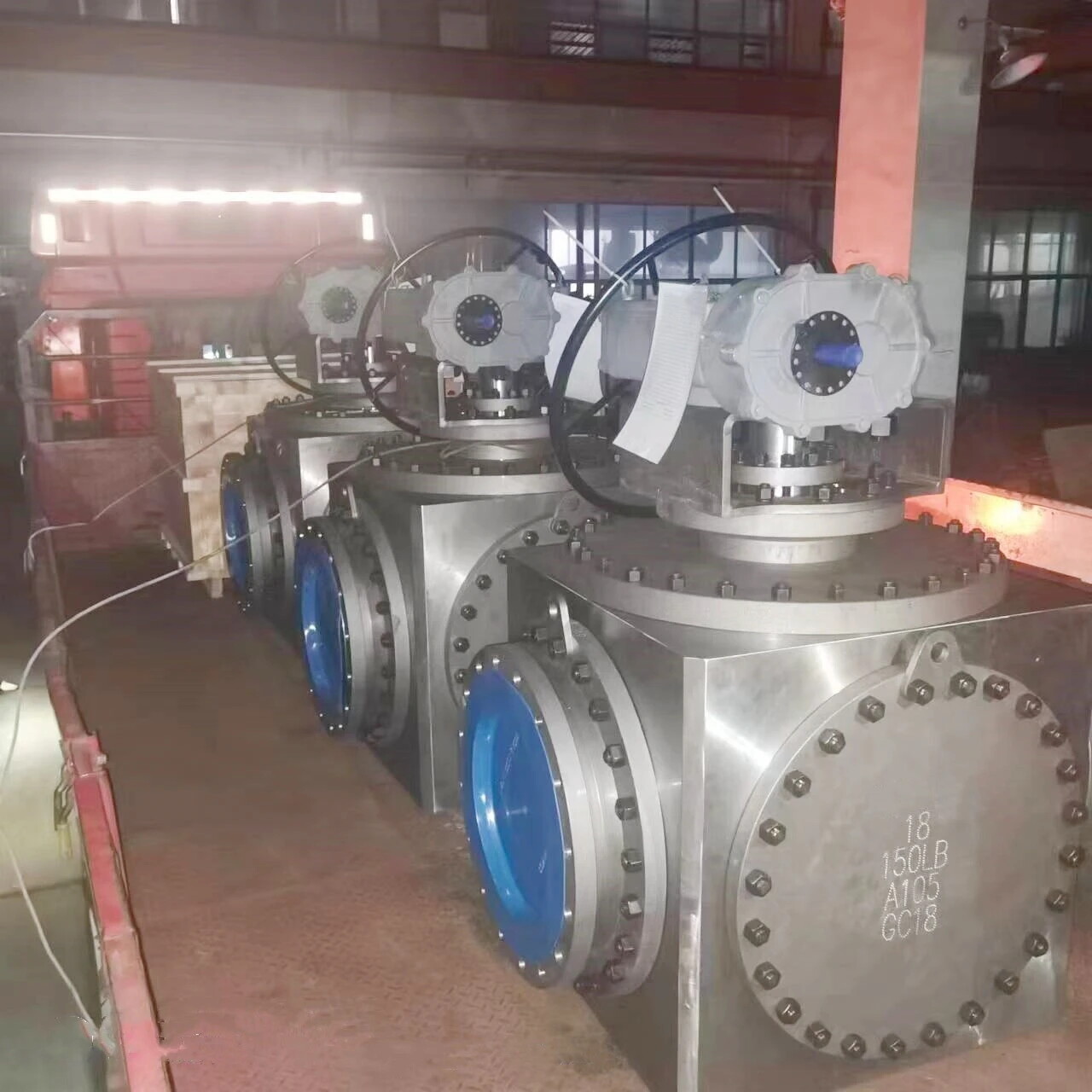

ASTM A105 Ball Valve, Bolted Bonnet, API 6D, 18 Inch, 150 LB
Key Specifications / Features
Model No.: WV-240326-TMBV-02 Hits: 1
We specialize in manufacturing Forged Steel Ball Valves made from ASTM A105, adhering to API 6D standards. Our valves feature a bolted bonnet design and soft seal for reliable performance. With a size of 18 inches (DN450) and a pressure rating of Class 150 LB (PN20), these valves are ideal for various industrial applications. Equipped with gear operating mechanisms, our valves ensure efficient operation and compliance with industry standards.
Request a quoteTags:
Detail Information
Ball Valve, Bolted Bonnet, Soft Seal
Design: API 6D.
Materials: ASTM A105
Size: 18 Inch, DN450
Pressure: Class 150 LB, PN20
End Connection: RF
Operation: Gear
Face to face: MFG's
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Design: API 6D.
Materials: ASTM A105
Size: 18 Inch, DN450
Pressure: Class 150 LB, PN20
End Connection: RF
Operation: Gear
Face to face: MFG's
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
| Product | Ball valve. |
| Nominal diameter | 1/2 - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 6D. |
| Face to face | MFG's. |
| OPERATION | GEAR |
| Connection end | Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
