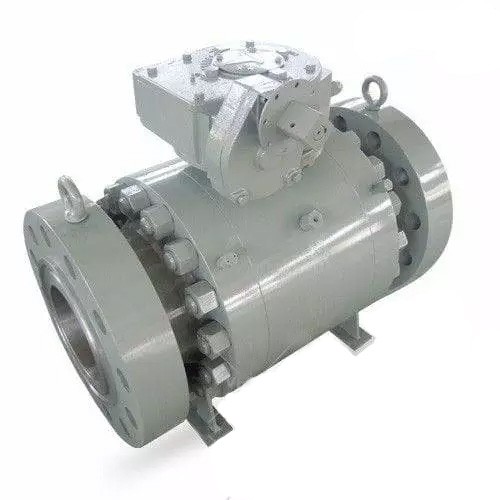

API 6D Trunnion Ball Valve, ASTM A105, 8 Inch, 900 LB, RTJ
Key Specifications / Features
Model No.: WV-240103-TMBV-03 Hits: 1
As a leading Trunnion Mounted Ball Valve producer, our valves adhere to API 6D standards, forged from ASTM A105, featuring an 8-inch size, Class 900 LB rating, DN200, PN150 specifications. Designed with RTJ Flange End and Lever Operation, these valves undergo rigorous API 598 testing, ensuring top-notch performance and reliability in fluid control applications.
Request a quoteTags:
Detail Information
Design Standard: API 6D
Body Material: ASTM A105
Nominal Diameter: 8 Inch, DN200
Pressure: Class 900 LB, PN150
End Connection: RTJ Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Working temperature: -46℃ - +200℃
Product Range
Size: 2-48 Inch, DN50-DN1200
Pressure: Class 150-2500 LB, PN16-PN420
End connection: Flanged, BW
Pressure range: 150 lbs-2500 lbs (PN16-PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator
Body Material: ASTM A105
Nominal Diameter: 8 Inch, DN200
Pressure: Class 900 LB, PN150
End Connection: RTJ Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Working temperature: -46℃ - +200℃
Product Range
Size: 2-48 Inch, DN50-DN1200
Pressure: Class 150-2500 LB, PN16-PN420
End connection: Flanged, BW
Pressure range: 150 lbs-2500 lbs (PN16-PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator
