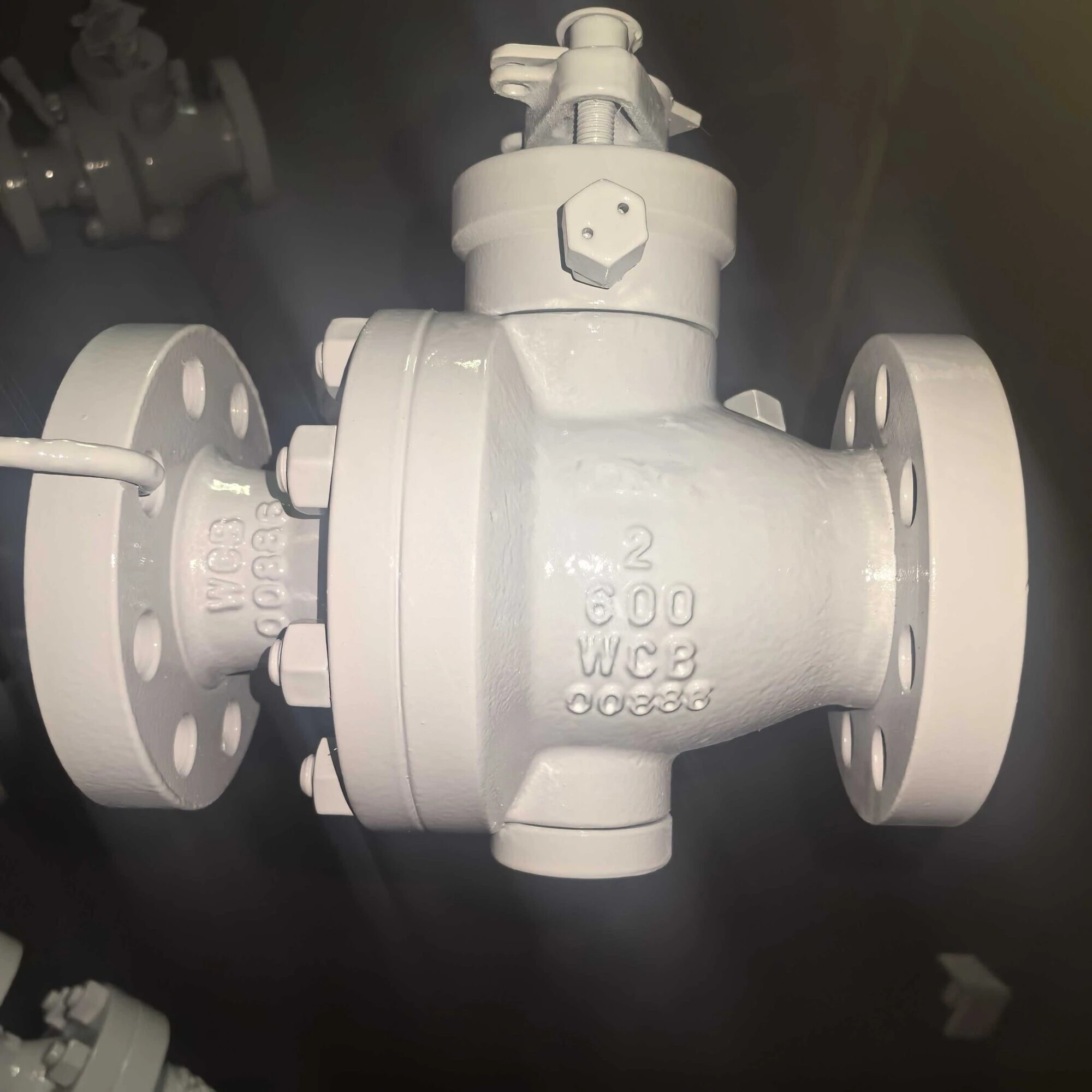

API 6D Floating Ball Valve, A216 WCB, 2 Inch, 600 LB, Lever
Key Specifications / Features
Model No.: WV-240326-FBV-02 Hits: 21
Manufacturer of API 6D floating ball valves: Constructed with ASTM A216 WCB material, these valves are designed for a 2-inch size and Class 600 LB rating. Featuring a side entry design with a bolted bonnet, they operate with a lever and come with RF ends. They undergo API 598 testing for quality assurance.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: API 6D.
Material: ASTM A216 WCB
Size: 2 Inch, DN50
Pressure: Class 600 LB, PN100
End Connection: RF
Operation: Lever
Face to face: ASME B16.10
Test and inspection: API 598
Product Range:
Body material: Carbon Steel.
Size: 1/2 - 6 Inch (DN15 - DN150).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Material: ASTM A216 WCB
Size: 2 Inch, DN50
Pressure: Class 600 LB, PN100
End Connection: RF
Operation: Lever
Face to face: ASME B16.10
Test and inspection: API 598
Product Range:
Body material: Carbon Steel.
Size: 1/2 - 6 Inch (DN15 - DN150).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
| Product | Ball valve. |
| Nominal diameter | 2 - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 6D. |
| Face to face | ASME B16.10 |
| OPERATION | LEVER |
| Connection end | Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
| SEAT | DEVLON, PTFE |
