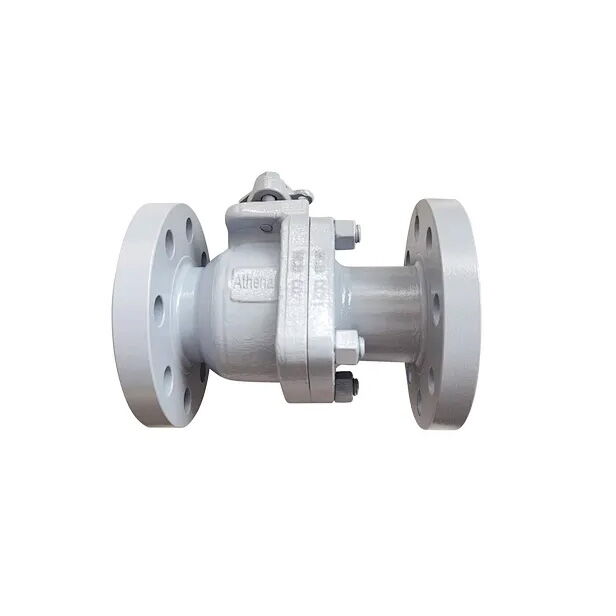

API 608 Floating Ball Valve, ASTM A351 CF8, 10 Inch, 150 LB
Key Specifications / Features
Model No.: Hits: 0
The API 6D and API 608 compliant Floating Ball Valve is meticulously produced for reliable performance in various industrial environments. Manufactured with ASTM A351 CF8 material, this valve ensures corrosion resistance and strength. Designed for a 10-inch diameter and Class 150 LB pressure rating, it accommodates DN250 and PN20 dimensions, making it suitable for medium to high flow applications. The valve offers both soft seat and metal seat options, providing flexibility for different sealing requirements.
Request a quoteTags
Detail Information
Product Name: Floating Ball Valve
Standard: API 608, API 6D
Size: 10 Inch, DN250
Pressure: Class 300 LB, PN50
Body material: ASTM A351 CF8
End connection: RF/RTJ/BW
Operation: Lever/Gear
Bore: Full Bore and Reduced Bore
Design: Blow-out proof stem design, Anti-static design and API 6FA Fire Safe Design
Standard: API 608, API 6D
Size: 10 Inch, DN250
Pressure: Class 300 LB, PN50
Body material: ASTM A351 CF8
End connection: RF/RTJ/BW
Operation: Lever/Gear
Bore: Full Bore and Reduced Bore
Design: Blow-out proof stem design, Anti-static design and API 6FA Fire Safe Design
