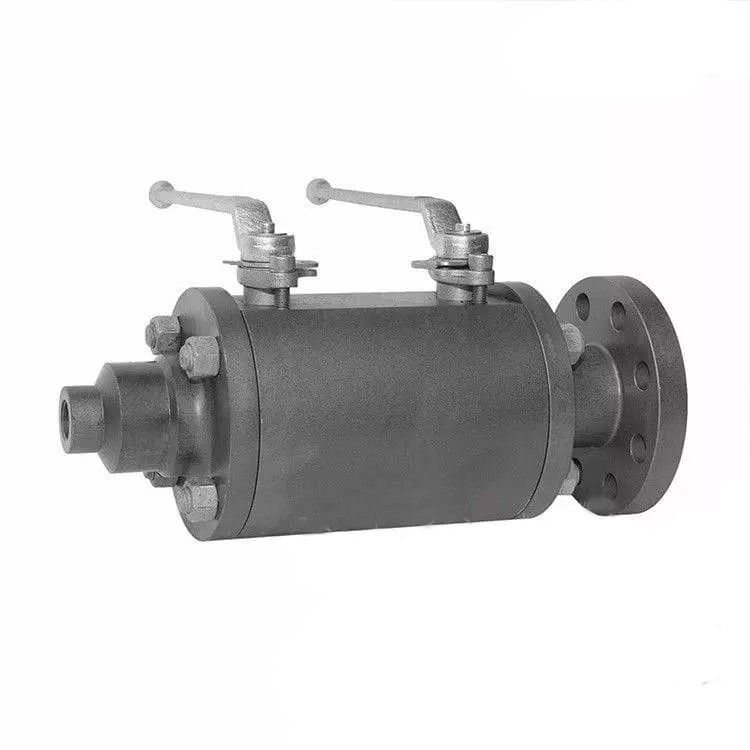

API 608 Ball Valve, Double Block Bleed, 2 Inch, Class 300 LB
Key Specifications / Features
Model No.: WV-231226-DBBBV-01
Hits: 104
Discover unparalleled reliability with our Double Block Bleed Ball Valve, expertly manufactured to the highest standards. Compliant with API 608, Gost, and Din specifications, this valve is engineered for optimal performance and versatility in diverse industrial applications. Featuring a sturdy 2-inch size, Class 300 LB rating, and DN50 dimensions, this valve ensures robustness and efficiency in fluid control.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Name: Twin Ball Ball Valve, DBB Ball Valve
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN50
Materail: Carbon Steel
Standard: API 608, Gost, Din
Temperature Of Media: -29℃ To 120℃
Product Range
Size: 1/4 -4 Inch, DN8-DN100
Pressure: Class 150, 300, 600, 900, 1500, 2500 LB
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Connection: NPT, RF, RTJ, SW
Introduction
Our response to the demand for a reduction in leakage paths has been the combination of primary and secondary valves into one compact unit. The combining of piping and instrument valves into a single team has benefited various markets.
Ephood can offer a particular combination of double block and bleed valve systems together with fittings, both designed and produced by us. Choice of this combination results in the elimination of taper thread connections and the need for thread sealant.
Features
1. A one-piece integral forging incorporating 3 ball valves or a mixture of the ball and needle design.
2. Improved safety : leak paths reduced by up to 60%
3. Reduced costs: installation and component costs were reduced by up to 70%
4. Reduced weight : by up to 80%
5. Reduced susceptibility to problems caused by vibration.
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN50
Materail: Carbon Steel
Standard: API 608, Gost, Din
Temperature Of Media: -29℃ To 120℃
Product Range
Size: 1/4 -4 Inch, DN8-DN100
Pressure: Class 150, 300, 600, 900, 1500, 2500 LB
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Connection: NPT, RF, RTJ, SW
Introduction
Our response to the demand for a reduction in leakage paths has been the combination of primary and secondary valves into one compact unit. The combining of piping and instrument valves into a single team has benefited various markets.
Ephood can offer a particular combination of double block and bleed valve systems together with fittings, both designed and produced by us. Choice of this combination results in the elimination of taper thread connections and the need for thread sealant.
Features
1. A one-piece integral forging incorporating 3 ball valves or a mixture of the ball and needle design.
2. Improved safety : leak paths reduced by up to 60%
3. Reduced costs: installation and component costs were reduced by up to 70%
4. Reduced weight : by up to 80%
5. Reduced susceptibility to problems caused by vibration.
| Model number | Q41/61F-300LB |
| Item | Ball valve |
| Certification | TS,CE,ISO9001,ISO14001,ISO18001 |
| Connection form | One Flange And One Thread |
| Body material | Forged |
| Seal form | Double Seal Construction |
| Feature | Easy disassembly and assembly |
