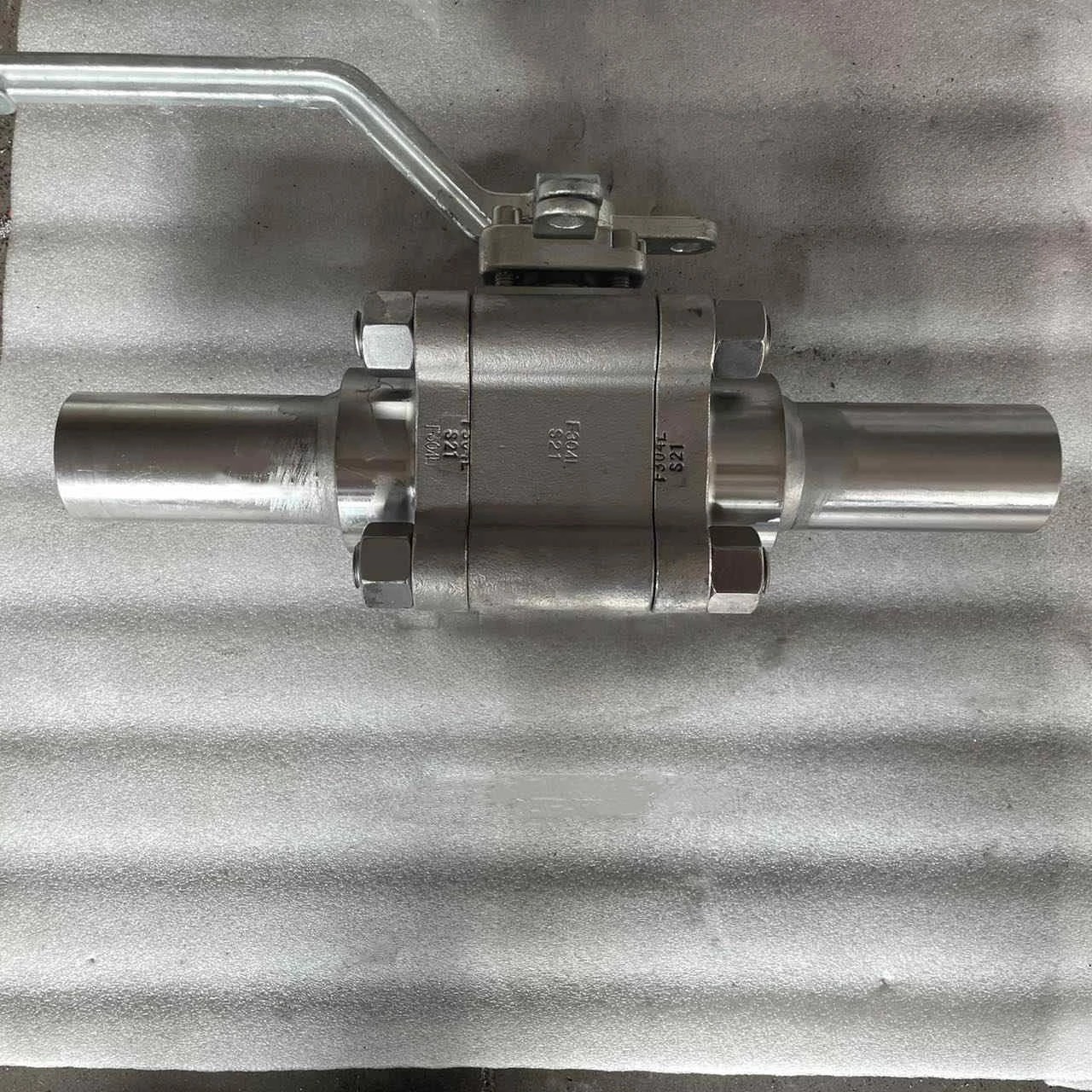

API 608 Ball Valve, 3 Piece, ASTM A182 F304, 2 Inch, 800 LB

API 608 Ball Valve, 3 Piece, ASTM A182 F304, 2 Inch, 800 LB

Key Specifications / Features

Model No.: WV-231220-FSBV-01 Hits: 2

Welcome to our API 608 Ball Valve Manufacturing expertise, where precision and quality converge. Our three-piece valves, crafted from Stainless Steel ASTM A182 F304, come in a 2-inch size with a Class 800 LB rating, ensuring robust performance. Featuring a Bolted Bonnet for secure sealing and designed for DN50 and PN130 applications, these ball valves are engineered for reliability.

Request a quote

Detail Information

Valve description:
Ball valve, bolted bonnet, three-piece, PTFE SEAT
Design: API 608.
Body: ASTM A182 F304
Nominal size: 2 Inch.
Nominal class: 800 LB.
End Connection: NIPPLE ON BOTH SIDE.
OPERATION: LEVER
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: Stainless Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, Flange, NIPPLE ON BOTH SIDE, SW, NPTF.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics
Product Ball valve.
Nominal diameter 1/2 - 2 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Stainless Steel.
Design standard API608.
Face to face MFG'S.
OPERATION LEVER
Connection end BW, Flange, NIPPLE ON BOTH SIDE, SW, NPTF.
Test standard API 598.
Package Plywood
Application The oil and gas industry
