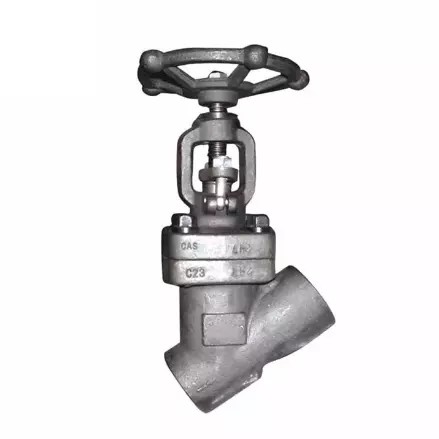

API 602 Globe Valve, Y Type, ASTM A182 F304, 2 Inch, 600 LB

API 602 Globe Valve, Y Type, ASTM A182 F304, 2 Inch, 600 LB

Key Specifications / Features

Model No.: WV-231222-YPGBV-03 Hits: 0

Experience precision fluid control with our Stainless Steel Y Type Globe Valve, expertly produced with ASTM A182 F304 construction. This valve operates seamlessly in 2-inch size, Class 600 LB, and PN100 environments, ensuring reliability and durability for various applications. The handwheel operation enhances user control, and the socket weld end design provides secure connections.

Request a quote

Detail Information

Valve description:
Globe valve, Socket weld, stainless steel.
Design: API 602.
Body: ASTM A182 F304
Nominal size: 2 Inch.
Nominal class: 600 LB.
End Connection: SW.
Operation: Handwheel
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: STAINLESS Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, Flange(RTJ, RF), NPT, SW.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +300℃.

Technical parameters and characteristics
Product Globe valve.
Nominal diameter 1/2 Inch - 2 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Stainless Steel.
Design standard API 602.
Face to face MFG'S.
Operation Handwheel
Connection end BW,Flange(RTJ,RF),NPT,SW.
Test standard API 598.
Package Plywood
Application The oil and gas industry
