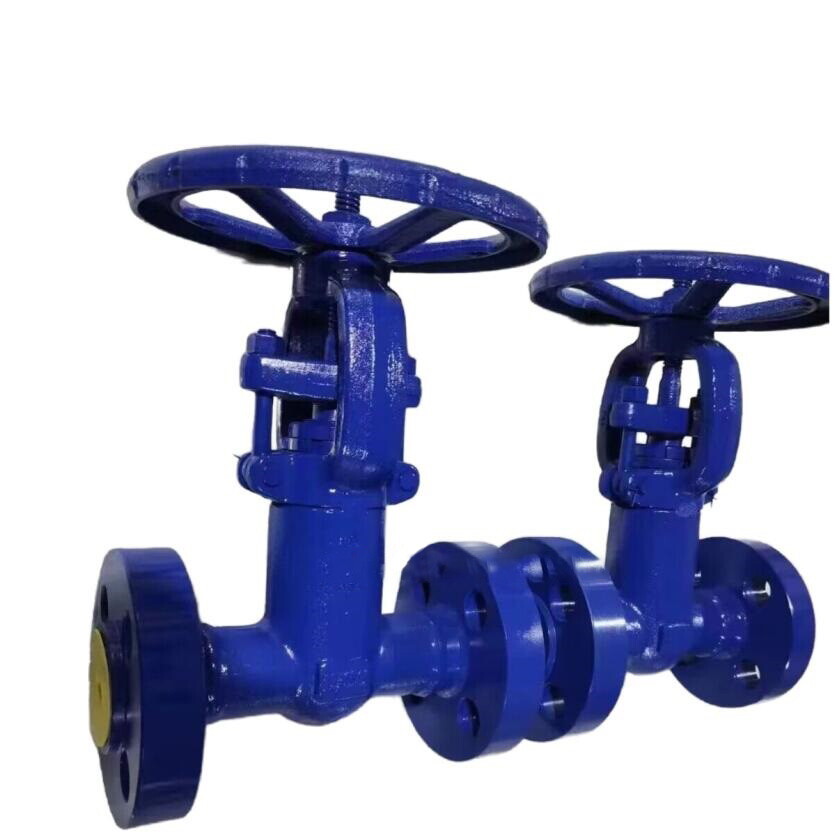

API 602 Gate Valve, ASTM A182 F22, 2 Inch, Class 1500 LB, RF
Key Specifications / Features
Model No.: WV-240227-FGV-02 Hits: 1
We specialize in manufacturing ASTM A182 F22 gate valves. Our products feature a 2-inch size, Class 1500 LB rating, API 602 compliance, DN50, PN420 pressure rating, and API 598 testing. Available with RF, NPT, and BW ends, these handwheel-operated valves offer full port functionality and come with OS & Y design for enhanced performance and durability.
Request a quoteTags:
Detail Information
Standard: API 602
Material: ASTM A182 F22
Size: 2 Inch, DN50
Pressure: Class 2500 LB, PN420
End Connection: RF
Port: Reduce Port
Operating: Hand Wheel
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29ºC - +590ºC
Material: ASTM A182 F22
Size: 2 Inch, DN50
Pressure: Class 2500 LB, PN420
End Connection: RF
Port: Reduce Port
Operating: Hand Wheel
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29ºC - +590ºC
