API 599, API 6D Sleeved Plug Valve, ASTM A105, 1 IN, 150 LB
Key Specifications / Features
Model No.: WV-240105-SPV-06 Hits: 85
Explore excellence with our Inverted Pressure Balance Sleeved Plug Valve. This 1-inch valve, forged from ASTM A105 steel, carries a Class 150 LB rating. Designed to meet API 599 and API 6D standards, it features a user-friendly wrench operation and RF end, ensuring top-notch performance in diverse applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design Standard: API 599, API 6D
Body Material: Forging Steel, Carbon Steel, ASTM A105
Nominal Diameter: 1 Inch, 25mm, DN25
Pressure: Class 150 LB, CL150, PN20
End Connection: RF Flange, Socket Weld End
Face To Face: ASME B16.10
Test And Inspection: API 598
Mode of operation: Wrench
Temperature: -29℃ - +425℃
Type: Sleeved Plug Valves, Inverted Pressure Balance Lubricated Plug Valve
Product Range
Size: 1/2 Inch - 28 Inch (DN15-DN700)
Pressure: Class 150-900 LB (PN16-64)
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Operation: Lever, Gear, Electric, Pneumatic, Hydraulic
Design & Manufacture Standard: API 599, API 6D
Face to face dimension standard: ASME B16.10, DIN 3202 F1.
End Connections: ASME B16.5, ASME B16.47, DIN 2543-2549
Test & Inspect standard: API 598, DIN 3230
Body Material: Forging Steel, Carbon Steel, ASTM A105
Nominal Diameter: 1 Inch, 25mm, DN25
Pressure: Class 150 LB, CL150, PN20
End Connection: RF Flange, Socket Weld End
Face To Face: ASME B16.10
Test And Inspection: API 598
Mode of operation: Wrench
Temperature: -29℃ - +425℃
Type: Sleeved Plug Valves, Inverted Pressure Balance Lubricated Plug Valve
Product Range
Size: 1/2 Inch - 28 Inch (DN15-DN700)
Pressure: Class 150-900 LB (PN16-64)
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Operation: Lever, Gear, Electric, Pneumatic, Hydraulic
Design & Manufacture Standard: API 599, API 6D
Face to face dimension standard: ASME B16.10, DIN 3202 F1.
End Connections: ASME B16.5, ASME B16.47, DIN 2543-2549
Test & Inspect standard: API 598, DIN 3230

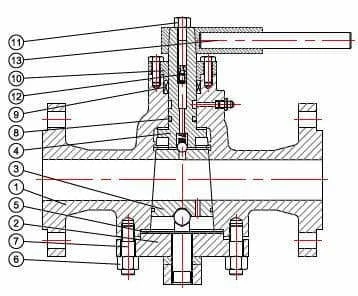

| Parts Name | Material | ||||
| Body | A216 WCB | A217 WC6 | A217 WC9 | A351 CF8 | A351 CF8M |
| Cover | A216 WCB | A217 WC6 | A217 WC9 | A351 CF8 | A351 CF8M |
| Plug | A182 F6a / A182 F22, F304 | A182 F304 | A182 F316 | ||
| Stem | A182 F6a / A182 F304 | A351 CF8 | A351 CF8M | ||
| Gasket | Flexible Graphite+Stainless Steel / PTFE | ||||
| Bolt | A193 B7 | A193 B8 | A193 B8M | ||
| Nut | A194 2H | A194 8 | A194 8M | ||
| O-Ring | NBR / VITON | ||||
| Packing | Flexible Graphite / PTFE | ||||
| Gland | A216 WCB | A217 WC6 | A217 WC9 | A351 CF8 | A351 CF8M |
| Oil Nozzle | B62 | ||||
| Check Valve | A182 F6a | A182 F304 | A182 F316 | ||
| Wrench | A536 60-40-18 | ||||
