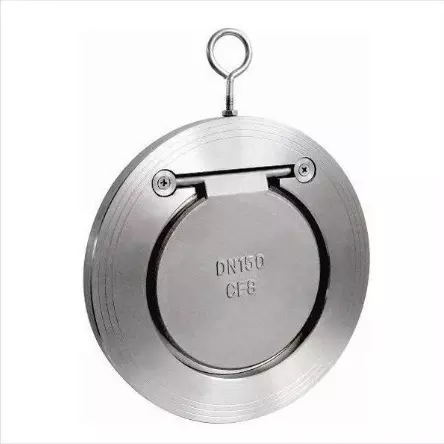

API 594 Wafer Check Valve, ASTM A351 CF8, DN150, 6IN, 150 LB
Key Specifications / Features
Model No.: WV-231221-WCV-01 Hits: 59
Explore the precision engineering of our Stainless Steel Wafer Check Valve at our dedicated plant. Crafted from high-quality ASTM A351 CF8 stainless steel, this valve is designed for optimal performance in Class 150 LB and PN20 applications. With a substantial 6-inch size (DN150), it adheres to API 594 standards, ensuring top-notch quality and reliability. The Integral Seat design and compliance with Face to Face ASME B16.10 standards further enhance the valve's efficiency.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Wafer Type Check Valve, WAFER, integral seat.Design: API 594.
Body: ASTM A351 CF8
Nominal size: DN150.
Nominal class: 150 LB.
End Connection: WAFER.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Stainless Steel.
Normal diameter: 2 - 20 Inch (DN50 - DN500).
End connection: WAFER, LUG, FLANGE.
Pressure range: Class 150 - 600 LB (PN16 - PN100).
Working temperature: -29℃ - +300℃.
Technical parameters and characteristics
| Product | Wafer Type Check Valve. |
| Nominal diameter | 2 Inch - 20 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 600 LB. |
| Material | Stainless Steel. |
| Design standard | API 594. |
| Face to face | ASME B16.10. |
| Connection end | WAFER, LUG, FLANGE |
| Test standard | API 598. |
| Package | Plywood |
| Application | water, oil and gas. |
