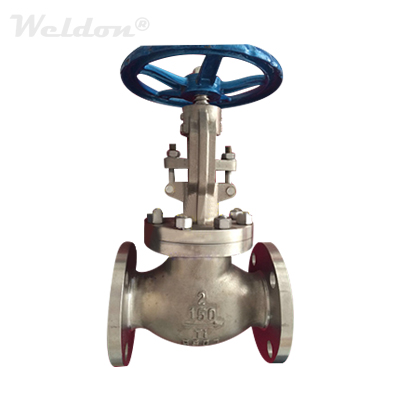

Titanium Globe Valve, ASTM B367 GR.C2, 2 Inch, Class 150, RF, BB
Key Specifications / Features
Model No.: AGLV-09 Hits: 96
Titanium Globe Valve Manufacturer in China Provides Titanium Globe Valve, ASTM B367 GR.C2 Globe Valve, 2 Inch, Class 150 LB, RF, BB, Hand Wheel Operation.
Request a quoteTags:
Detail Information
Size: 2 Inch.
Pressure Rating: Class 150 LB.
Body/Bonnet: ASTM B367 GR.C2.
Operation: Hand Wheel.
Connect Ends: Flange.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with outside screw and yoke.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: ASME B16.34.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 598.
Pressure Rating: Class 150 LB.
Body/Bonnet: ASTM B367 GR.C2.
Operation: Hand Wheel.
Connect Ends: Flange.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with outside screw and yoke.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: ASME B16.34.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 598.
