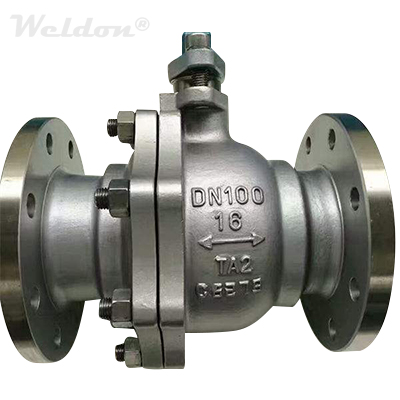

TA2 Ball Valve, Trunnion Mounted, B367 C2, DN100, PN16, API 608, RF
Key Specifications / Features
Model No.: TMBV-06
Hits: 220
TA2 Ball Valve Factory in China SuppliesTA2 Ball Valve, TA2 Trunnion Mounted Ball Valve, B367 C2, DN100, PN16, API 608, API 6D, RF End, Lever Operated.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Size: DN100.
Pressure Rating: PN16.
Material Body: ASTM B367 GR.C2.
Lever Operated.
Split body side entry design.
Full bore or reduced bore.
Ball coating: PTFE, ENP, TCC, STL, CCC, ZNP.
Locking device (or safety interlock key).
Fire safe design, anti-static device.
Blowout proof stem design.
Body vent device.
Stem extension for underground & cryogenic service.
Standards
Design and Manufacture: API 6D, API 608.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 6D, API 598.
Pressure Rating: PN16.
Material Body: ASTM B367 GR.C2.
Lever Operated.
Split body side entry design.
Full bore or reduced bore.
Ball coating: PTFE, ENP, TCC, STL, CCC, ZNP.
Locking device (or safety interlock key).
Fire safe design, anti-static device.
Blowout proof stem design.
Body vent device.
Stem extension for underground & cryogenic service.
Standards
Design and Manufacture: API 6D, API 608.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 6D, API 598.
