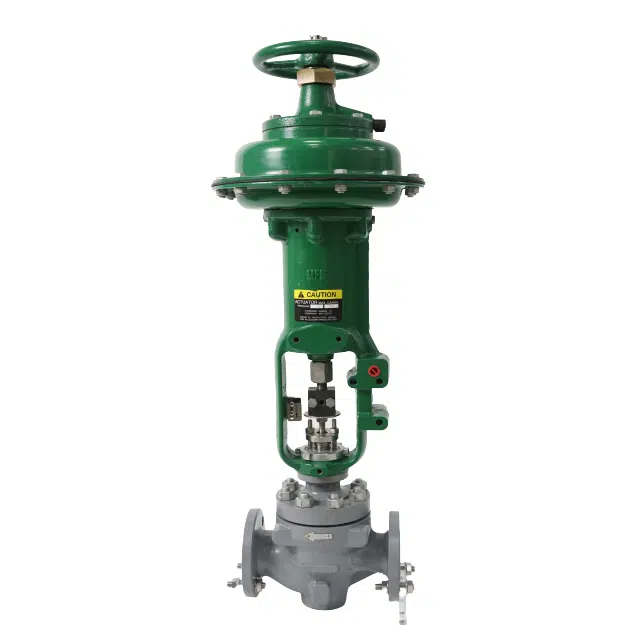

Steam Pressure Reducing Control Valve, 1/2-8 Inch, A352 LCB
Key Specifications / Features
Model No.: WV-240129-CTV-02 Hits: 11
As a prominent maker of steam pressure reducing globe control valves, we specialize in precision engineering for optimal performance. Crafted with ASTM A352 LCB and ASTM A216 WC6 materials, our valves are designed for durability. With a versatile size range from 1/2 to 8 inches, and Class 150-600 LB (DN15 to DN200, PN20 to PN100), these valves are ideal for steam pressure applications.
Request a quoteTags
Detail Information
Size: 1/2 - 8 Inch, DN15-DN200
Pressure: Class 150 - 600 LB, PN20-PN100
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -198 - +593℃
Connection: Flanged, butt-welded, socket-welded, and threaded
Leakage Standard: ANSI/FC, IEC 60534-4
Flow direction: flow to open, flow to close
Pressure: Class 150 - 600 LB, PN20-PN100
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -198 - +593℃
Connection: Flanged, butt-welded, socket-welded, and threaded
Leakage Standard: ANSI/FC, IEC 60534-4
Flow direction: flow to open, flow to close
