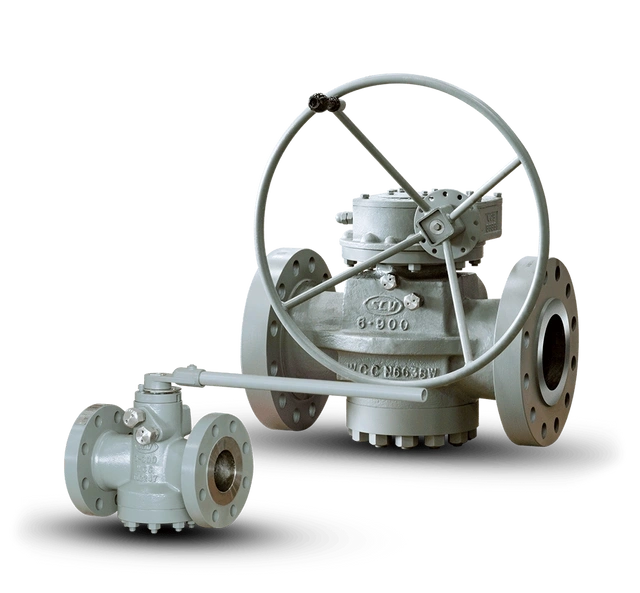

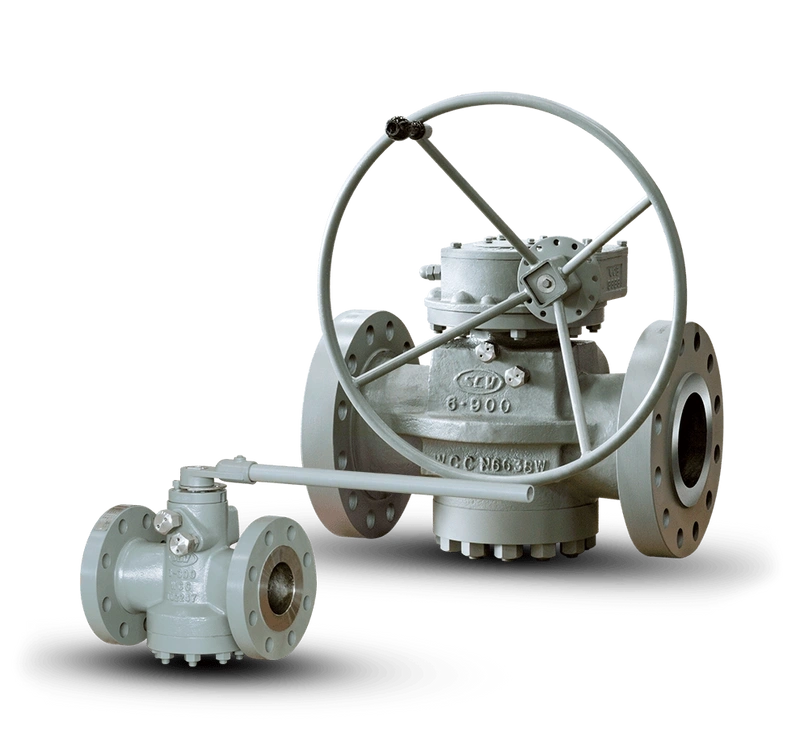

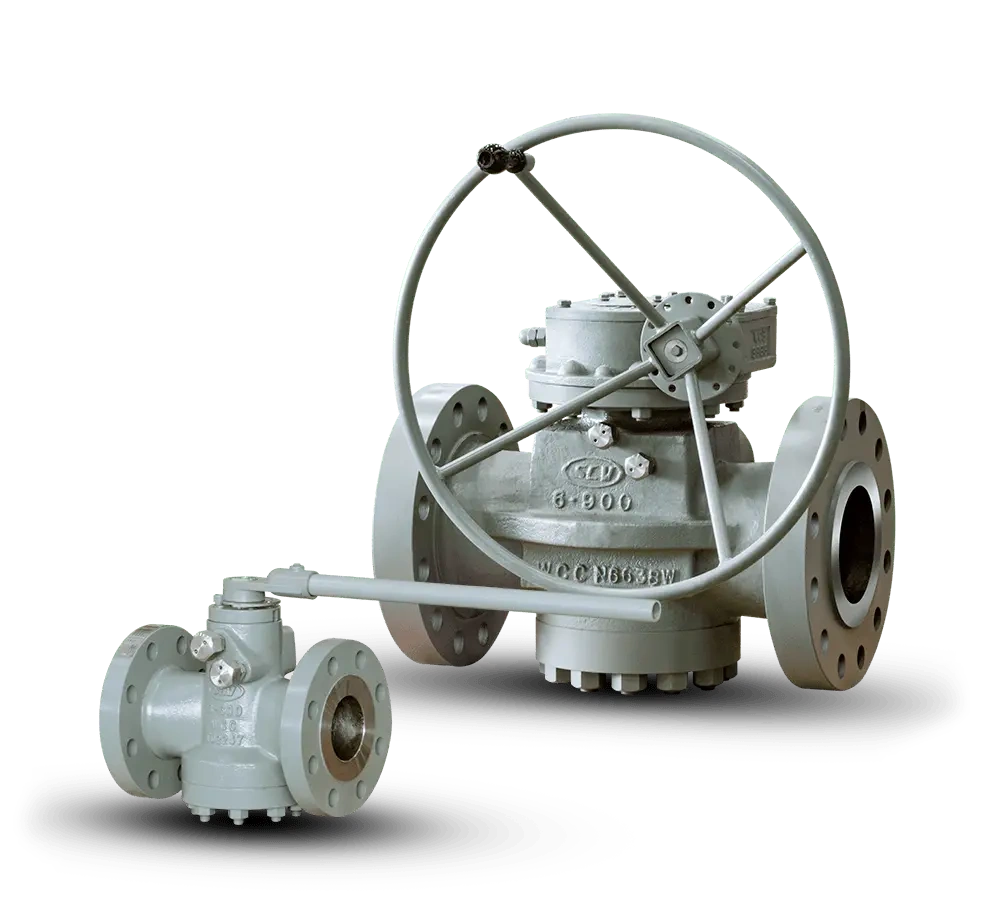

A pressure balanced plug valve is a specialized type of valve designed for the safe operation of high-pressure systems. It serves as an auxiliary valve, primarily used as a bypass to a line valve, ensuring balanced pressure and enabling the secure opening of the main line valve. Known for its reliability and versatility, the pressure balanced plug valve plays a vital role in various industrial applications.
What is a Plug Valve?
A plug valve is a quarter-turn rotary motion manual valve used to control the flow of fluids. It employs a cylindrical or tapered plug (plug-shaped disk) to either allow or block the flow through the valve body. This design provides a straight-through passage, minimizing turbulence and allowing fluid to flow smoothly when the valve is open.
The flow direction in a plug valve can be bi-directional, with the valve functioning in either a fully open or fully closed position. Its quarter-turn operation makes it a practical and efficient choice for many systems.
Applications of Plug Valves
Plug valves are widely used across numerous industries due to their robust design and adaptability. They are particularly effective in the following applications:
1. High-pressure Systems
Used as bypass valves for line valves, ensuring pressure balance and safety.
2. Slurry Applications
Well-suited for handling slurries due to their durable and simple design.
3. Bubble-tight Services
Provide excellent sealing for on-off operations.
4. Fluid Handling
Applied in systems involving air, gases, vapors, natural gas, and oil piping.
5. Specialized Industries
Food processing
Pharmaceuticals
Vacuum systems
Non-abrasive slurry applications
Corrosive chemical services (when lined with materials like PTFE)
Due to their efficiency and reliability, plug valves are also used in moderate throttling and diverting services, where fluid needs to be rerouted.
Evolution of Plug Valves
Initially developed as an alternative to gate valves, plug valves offer several advantages. Unlike gate valves, which require multiple turns to open or close, plug valves achieve the same with a simple quarter-turn. This feature makes them faster and easier to operate, particularly in systems where quick actuation is essential.
Key Features of Plug Valves
1. Quarter-Turn Operation
Enables rapid opening and closing, making it ideal for on-off and throttling applications.
2. Compact Design
Plug valves are smaller and lighter than many other types of valves, simplifying installation and maintenance.
3. Material Versatility
With body linings made of PTFE or other corrosion-resistant materials, plug valves are suitable for handling aggressive chemicals.
4. Customizability
Can be designed to handle abrasive, sticky fluids with specialized configurations.
5. Size Range and Pressure Classes
Commonly available in sizes up to 18 inches (DN 450).
Suitable for lower-pressure classes, such as ANSI Classes 150 and 300 (PN 16 and 40).
Parts of a Plug Valve
Understanding the components of a plug valve is essential to grasp its functionality. Key parts include:
1. Body
The main housing of the valve, containing the flow passage.
2. Plug
The cylindrical or tapered disk responsible for opening or blocking the flow.
3. Stem
Connects the plug to the actuator or handle, enabling rotation.
4. Seat
Provides a sealing surface to ensure tight closure.
5. Lining or Coating
Materials like PTFE are used for chemical resistance and enhanced durability in corrosive environments.
6. Actuator
Can be manual (handwheel or lever) or automated (electric, pneumatic, or hydraulic).
Working Principle of Plug Valves
The working principle of a plug valve is straightforward yet highly effective.
Open Position
When the plug is rotated so that its passage aligns with the valve ports, the fluid flows freely with minimal resistance.
Closed Position
Rotating the plug by 90 degrees blocks the flow entirely, ensuring a tight seal.
Pressure Balancing
In pressure balanced plug valves, special channels or ports are incorporated into the plug to equalize pressure on both sides. This reduces the effort required to operate the valve, even in high-pressure systems.
Types of Plug Valves
Plug valves are available in various types to cater to different applications:
Lubricated Plug Valves
Feature a lubricant injected between the plug and the body to reduce friction and wear.
Non-Lubricated Plug Valves
Use materials like PTFE for sealing, eliminating the need for lubrication.
Multi-Port Plug Valves
Allow fluid diversion to multiple paths, ideal for complex piping systems.
Eccentric Plug Valves
Offer enhanced sealing by providing a slightly offset plug that presses firmly against the seat.
Expanding Plug Valves
Use a mechanism to expand the plug against the seat, ensuring a tight seal in high-pressure applications.
Advantages of Plug Valves
Plug valves offer numerous benefits, making them a popular choice in various industries:
Ease of Operation
Quick quarter-turn actuation ensures rapid response times.
Durability
Rugged construction allows for reliable performance in demanding environments.
Low Maintenance
Simple design reduces maintenance requirements and downtime.
Versatility
Applicable in a wide range of fluids and pressures.
Compact Design
Space-saving, making them ideal for installations with limited space.
Disadvantages of Plug Valves
Despite their many advantages, plug valves have some limitations:
High Torque Requirements
Larger plug valves may require significant force to operate, especially in high-pressure systems.
Limited Size Range
Typically available only up to 18 inches in diameter.
Potential for Galling
Metal-to-metal contact in unlined valves may cause wear and tear over time.
Plug Valve Symbols and Standards
In technical diagrams and schematics, plug valves are represented by standardized symbols. These symbols help engineers and operators understand the valve's function and placement within a system.
Plug valves must also comply with industry standards to ensure safety and performance, such as:
API Standards
Ensures compatibility with oil and gas applications.
ANSI/ASME Standards
Defines size, pressure ratings, and material requirements.
ISO Standards
Focuses on global compatibility and quality assurance.
Conclusion
Pressure balanced plug valves are indispensable in high-pressure systems, offering safety, efficiency, and reliability. Their unique design, combining simplicity with robust functionality, makes them a preferred choice in various industries. From handling aggressive chemicals to managing complex fluid systems, plug valves deliver outstanding performance in diverse applications.
As technology advances, plug valves continue to evolve, offering enhanced materials, designs, and automation options. Whether in oil and gas, pharmaceuticals, or food processing, these versatile valves will remain a cornerstone of modern industrial operations.
