In fluid handling and piping systems, preventing reverse flow is critical to maintaining system integrity and ensuring safe and efficient operation. Check valves, also known as non-return valves, are essential components that allow fluid to flow in one direction while preventing backflow. Among the most commonly used check valve types are single disc and double disc check valves, each with distinct structural and functional characteristics.
This article explores the core differences between single disc and double disc check valves—examining their design, performance, operational efficiency, and ideal applications—to help engineers, maintenance professionals, and procurement specialists make informed decisions based on system requirements.

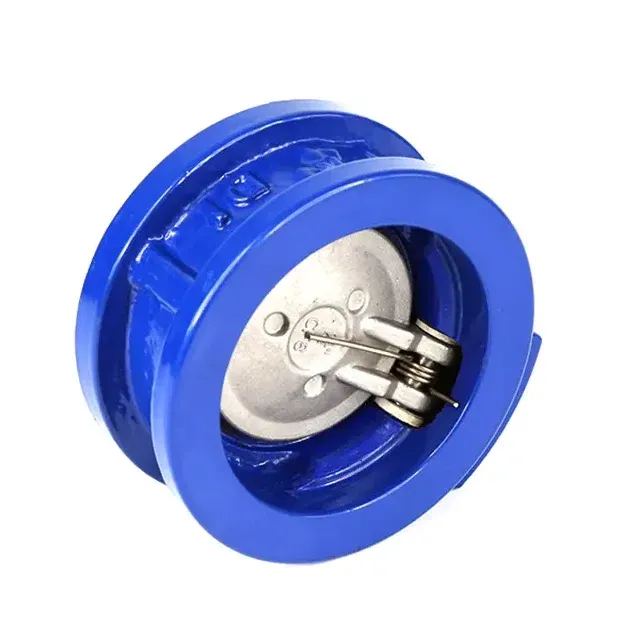

As the name implies, the single disc check valve utilizes a single disc or flap that pivots on a hinge or shaft. When fluid flows in the intended direction, the pressure forces the disc to swing open, allowing unobstructed flow. When the flow reverses, the disc automatically closes—usually aided by a spring mechanism—thereby blocking any backflow.
The simplicity of the design allows for ease of maintenance and compact construction. The spring-loaded mechanism also helps the disc close rapidly, reducing the likelihood of water hammer, which occurs when fluid changes direction suddenly and creates shock waves in the system.
Double disc check valves, often referred to as dual plate or dual disc check valves, are constructed with two semicircular discs mounted on a central shaft or hinge. These discs swing open together when fluid flows in the forward direction and close simultaneously when the flow ceases or reverses.
The design ensures balanced pressure distribution and minimizes stress on the valve body and discs. Because the closing movement of the two discs is symmetrical, the sealing performance is often superior to that of single disc valves. Additionally, double disc valves are usually equipped with torsion springs to support faster closure and further reduce water hammer effects.
Single disc check valves are designed to perform basic check valve duties. They allow one-way flow and prevent backflow with a straightforward open-close disc mechanism. While effective for low-to-moderate pressure systems, they are typically not recommended for high-pressure applications where complete sealing is critical.
The spring-assisted closure aids in responsiveness and enhances performance in horizontal and vertical piping systems. However, their unidirectional disc design may allow slight leakage over time, especially in high-demand systems where sealing precision is essential.
Double disc check valves offer enhanced functionality and efficiency in backflow prevention. Their dual-disc configuration enables even force distribution and synchronized operation, which results in improved sealing and minimal pressure drop.
This type of valve is better suited for higher flow velocities and variable pressures. The increased surface contact during closure ensures a tighter seal, reducing the risk of leakage and prolonging the lifespan of downstream equipment. For critical industrial applications—such as in power plants, chemical processing, and high-rise water systems—double disc valves offer dependable performance and greater reliability.
Single disc check valves are often employed in low- to medium-pressure applications, such as in domestic water systems, HVAC setups, and general-purpose pipelines. They perform reliably where flow is relatively steady and flow velocity is moderate.
However, in systems with rapid pressure changes or pulsating flow, the single disc may struggle to maintain a tight seal, and the risk of water hammer increases. Therefore, these valves are generally considered more suitable for non-critical applications where occasional leakage does not pose significant operational or safety concerns.
Double disc check valves are engineered for more demanding operational conditions. With a more robust sealing mechanism and quicker response to flow reversal, they excel in high-pressure and high-flow scenarios.
The dual-disc mechanism, often enhanced by spring-loaded closure, ensures a balanced and rapid shutoff that mitigates water hammer and system stress. This makes them highly suitable for systems requiring stringent flow control, including fire protection systems, pump discharge lines, and wastewater treatment facilities.
One of the primary advantages of single disc check valves is their installation versatility. These valves can generally be installed in any position—horizontal, vertical, or inclined—without compromising their performance. This makes them an attractive option for systems with space constraints or complex piping arrangements.
The key consideration during installation is to ensure that the valve is installed in the correct flow direction as indicated by the manufacturer. Improper orientation may affect the valve’s ability to seal properly, especially in systems with fluctuating flow pressures.
Double disc check valves are predominantly designed for horizontal pipeline installations. While they can be installed in vertical positions, performance may be affected due to gravitational influences and potential disc misalignment.
In vertical installations, especially in downward flow configurations, additional design considerations—such as spring force or damping—may be needed to maintain optimal performance. Therefore, for systems with vertical or non-horizontal piping, it’s important to consult the manufacturer or engineering guidelines to determine the valve’s suitability and ensure proper installation techniques.
Single disc check valves are available in a wide range of sizes, from small diameters used in residential and commercial plumbing systems to larger industrial-grade models. Their internal passage area tends to be smaller due to the presence of the disc, which can result in a higher pressure drop across the valve.
This means that for high-flow applications, larger or specialized designs may be necessary to reduce turbulence and improve flow efficiency. As such, these valves are best suited to moderate flow applications where a minor pressure drop is acceptable.
Double disc check valves are typically designed for larger pipe diameters and higher flow rates. The dual-plate design enables a wider flow passage, which helps maintain efficient flow with minimal resistance. This makes them well-suited for heavy-duty applications in oil and gas, petrochemical, and water treatment industries.
Because of their compact design relative to their capacity, double disc valves offer excellent space-to-performance ratios. They are also available in various materials to withstand corrosive environments and harsh operating conditions.
Selecting between a single disc and double disc check valve depends on multiple factors, including system pressure, flow velocity, installation orientation, and criticality of backflow prevention.
When to Use Single Disc Check Valves:
Low-pressure residential and commercial systems
Applications with steady flow and minimal pressure fluctuation
Systems with flexible installation orientations
Cost-sensitive projects where occasional leakage is acceptable
When to Use Double Disc Check Valves:
High-pressure and high-flow industrial systems
Applications where tight sealing and minimal leakage are critical
Pump discharge lines where water hammer mitigation is required
Systems operating with variable flow and temperature conditions
Both valve types are available in various materials to suit different environments:
Body Materials: Cast iron, ductile iron, carbon steel, stainless steel, bronze
Disc Materials: Stainless steel, aluminum bronze, rubber-coated metals
Seat Materials: EPDM, NBR, PTFE, or metal-to-metal for high-temperature use
For corrosive or high-temperature environments, stainless steel or exotic alloys like Hastelloy or duplex stainless steel may be required.
Durability also depends on the quality of the internal components such as hinges, springs, and sealing surfaces. High-quality manufacturing and precision engineering can significantly extend the service life of either valve type.
Both single disc and double disc check valves play vital roles in fluid control systems, each bringing unique advantages depending on the application. While the single disc check valve is favored for its simplicity, cost-effectiveness, and flexibility in installation, the double disc check valve stands out in high-demand environments where performance, sealing integrity, and flow efficiency are paramount.
Ultimately, the decision to use one type over the other should be based on a careful evaluation of the system’s operational demands, installation constraints, and maintenance capabilities. Consulting with a valve engineer or technical specialist can ensure the right selection, helping to avoid costly failures or inefficiencies down the line.
