Optimizing Flow Control with 3-Way L Port Ball Valves: Function, Applications, and Key Differences

In the ever-evolving world of fluid control, ball valves continue to play a crucial role across various industrial sectors. Among them, the 3-way L port ball valve stands out as a highly efficient and versatile flow control device. Whether you're involved in chemical processing, water treatment, HVAC systems, or manufacturing pipelines, understanding the design and function of an L port valve can significantly improve system performance and simplify fluid routing.

The term “L port” is derived from the shape of the bore (internal hole) of the valve's ball, which resembles the letter “L.” This unique configuration enables the valve to divert flow between different pipelines or isolate flow paths without the need for multiple valves or complex piping arrangements.

This article takes an in-depth look at the 3-way L port ball valve—its working principles, flow configurations, advantages, and how it differs from the T port ball valve. We’ll also discuss practical applications, selection guidelines, and installation considerations to help you determine the best option for your specific system needs.

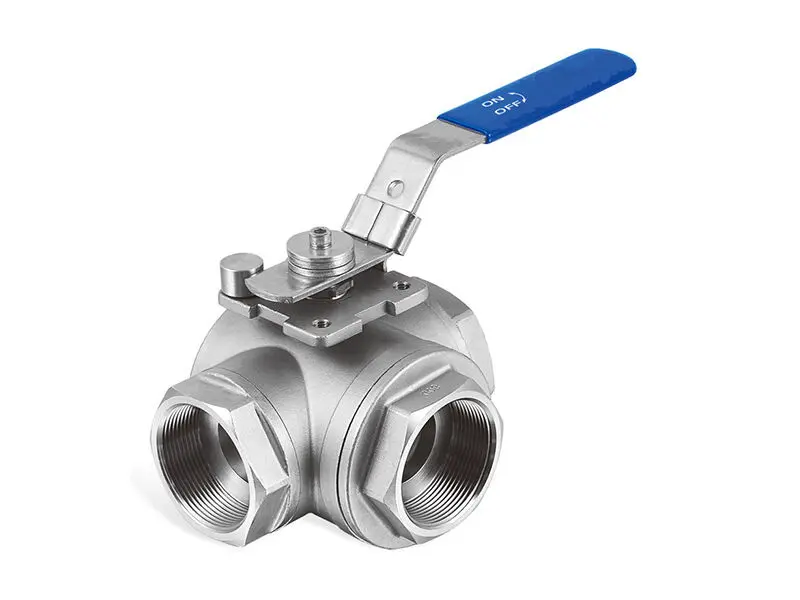

At the core of the 3-way L port ball valve is a ball with a bore shaped like an uppercase “L.” This ball sits inside the valve body and can be rotated using a handle, pneumatic actuator, or electric actuator to redirect fluid flow.

Valve body: Typically made of stainless steel, brass, or PVC for corrosion resistance.

L-shaped ball: Allows two ports to be connected at a time while isolating the third.

Stem and seals: Enable smooth operation and prevent leaks.

Actuation mechanism: Manual handles or automated actuators for control.

The valve has three ports, usually arranged in a T-pattern or an inline configuration (center port and two side ports). When the handle is turned 90 degrees, the bore inside the ball aligns with different ports to change the direction of flow. One port always remains isolated while the other two are connected, allowing for selective diversion of media.

Flow from the center port to the right port (left port blocked)

Flow from the center port to the left port (right port blocked)

Full shutoff (achieved through additional 90-degree rotation in some designs)

Depending on the valve design, a complete 180-degree rotation can shut off all flow or redirect it entirely to a different branch of the pipeline. This functionality makes the L port valve ideal for applications that require media to be diverted without mixing.

L port valves support multiple flow configurations that provide flexibility in system design:

These configurations enable operators to:

Divert flow between two outlets

Isolate one flow path

Switch supply sources (in some reverse flow designs)

Manual Operation vs. Automated Control:

Manual L port valves are suitable for systems where occasional flow switching is sufficient.

Electric or pneumatic actuated models are preferred in automated systems, especially when frequent switching or remote control is needed.

While L port and T port ball valves are both categorized as 3-way valves, they serve different functions and are suited for different types of flow control tasks.

L Port Valves:

Allow two ports to be connected at a time.

The third port is always closed.

Cannot mix fluids from different sources.

Commonly used for distribution, diversion, and simple source switching.

T Port Valves:

Can connect all three ports at once or isolate any one of them.

Allow for both mixing and splitting of flow.

Suitable for applications requiring complex flow control.

Yes, from a technical standpoint, T port valves offer more flow control options and can often replace L port valves if proper flow paths are configured. However, L port valves are simpler, more cost-effective, and ideal when full three-way connection is not required.

Thanks to their simple design and effective diversion capabilities, L port ball valves are widely used in industries that require controlled fluid routing without complex automation. Here are some typical applications:

Diverting different chemicals or liquids between tanks

Selecting supply sources for blending or batching processes

Switching between different filtration units

Directing flow toward discharge or reuse pipelines

Switching between heating and cooling loops

Bypassing water flow for maintenance or flushing

Controlling water distribution across multiple zones

Alternating between supply lines

Diverting ingredients without cross-contamination

Cleaning in place (CIP) routing systems

Diverting crude oil, natural gas, or refined products between pipelines

Flow path switching during production or storage processes

Selecting the correct 3-way L port ball valve for your system involves evaluating several key criteria:

Match the valve size to your pipeline diameter to avoid pressure loss or flow restrictions.

Confirm the port orientation (T-style or inline) to suit your piping layout.

Choose materials that resist corrosion and chemical attack (e.g., stainless steel for aggressive media).

Consider PTFE or reinforced seats for high-temperature or high-pressure systems.

Ensure the valve is rated for the maximum pressure and temperature of your system.

Metal-seated valves are recommended for extreme conditions.

Manual handles for basic applications.

Pneumatic actuators for fast, frequent switching.

Electric actuators for precise, programmable control.

Flanged, threaded, or socket-weld connections depending on piping standards and ease of installation.

Look for valves with easy access to internal components.

Valves with anti-blowout stems and double O-ring seals offer added safety and reliability.

Installation:

Always follow the manufacturer’s torque specifications.

Install the valve in the correct flow direction according to the port markings.

Use proper gaskets and fittings to ensure leak-tight connections.

Maintenance:

Periodically check for leaks around seals and stem.

Lubricate the valve stem if required.

For automated systems, test the actuator periodically to ensure responsiveness.

A well-installed and properly maintained L port valve can last for years with minimal issues, making it a cost-effective solution in many flow control systems.

The 3-way L port ball valve offers a simple yet powerful solution for fluid diversion and directional control in pipelines. Its unique L-shaped bore allows for seamless switching between flow paths, reducing the need for multiple valves and complex piping arrangements.

By understanding the differences between L port and T port configurations, industries can optimize their systems for efficiency, safety, and operational flexibility. Whether used for water treatment, industrial process control, or automated systems, L port valves remain a reliable choice for selective flow routing.
