Introduction
A safety valve is an automatic pressure-relief device designed to protect systems, equipment, and piping from overpressure situations by discharging fluids once the pressure exceeds a predetermined threshold. These valves are essential for safeguarding industrial processes, preventing equipment failure, and protecting human safety. When pressure builds up beyond the safe operating limits of a system, a safety valve opens to release the excess fluid, preventing potential catastrophic damage. After pressure levels return to normal, the valve closes, maintaining the integrity of the system.
Safety valves are used in many industries, including oil and gas, petrochemical, pharmaceuticals, and power generation. Each application demands specific types, models, and materials to ensure optimal performance in the required conditions. This article explores the operation, application, and selection process for safety valves, offering insights into how to properly choose and size safety valves based on application-specific needs.
Function of Safety Valves
In industrial environments where high pressures and temperatures are a constant, the risks of overpressure can be significant. Safety valves serve as a crucial component of pressure relief systems, designed to manage excess pressure and prevent dangerous situations. These valves are installed in systems where overpressure could compromise the safety and operational integrity of the entire system.
The core function of a safety valve is to release a predetermined amount of fluid from a system when the internal pressure exceeds the designed setpoint. This process ensures that pressure remains within safe operating limits, protecting equipment from damage, avoiding hazardous accidents, and reducing downtime caused by system failures.
When pressure rises above the Maximum Allowable Working Pressure (MAWP), the safety valve opens, allowing fluid to escape from the system. This action reduces pressure in a controlled manner, preventing potential damage to the vessel or pipes. Once the pressure drops back to a safe range, the valve closes, returning the system to its normal operational state.
Types of Safety Valves
Safety valves come in various types, each suited for specific industrial applications and media. Below are some of the most common safety valve types:
Spring-Loaded Safety Valve

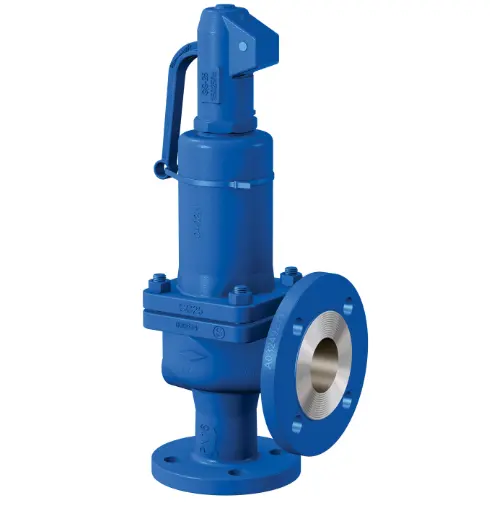

The spring-loaded safety valve is the most commonly used type. It is equipped with a spring that holds the valve closed under normal conditions. When the internal pressure exceeds the set pressure, the spring is compressed, allowing the valve to open and release the excess pressure. Once the pressure decreases, the spring pushes the valve back into a closed position.
Pilot-Operated Safety Valve
This type of valve uses an external pilot valve to control the main valve. When the system pressure exceeds the set pressure, the pilot valve opens, causing the main valve to lift and relieve the pressure. These valves are typically used in systems with higher flow rates or where precise pressure control is necessary.
Direct-Acting Safety Valve
In a direct-acting safety valve, the pressure acts directly on the valve disc or mechanism, causing the valve to open when the set pressure is reached. This type is commonly used in smaller systems or applications where quick pressure relief is required.
Balanced Safety Valve
Balanced safety valves are designed to minimize the effects of backpressure on the valve’s operation. They are typically used in systems where pressure may fluctuate or where backpressure from the system could affect the valve’s performance.
Applications of Safety Valves
Safety valves are integral to a wide variety of industrial applications, including:
Pressure Vessels
In pressure vessels, safety valves are crucial for maintaining safe internal pressure levels. If a vessel experiences excessive pressure due to chemical reactions, thermal expansion, or malfunctioning equipment, the safety valve will open to release the excess pressure and prevent failure.
Steam Boilers
Boilers are one of the most common applications for safety valves. They operate at very high pressures, and if the pressure exceeds safe limits, the safety valve will discharge steam to prevent boiler explosions.
Piping Systems
Safety valves are often installed in pipelines, where they provide critical protection against overpressure. In case of a blocked valve or other system malfunctions, the safety valve will discharge fluid to maintain safe pressure levels.
Oil & Gas
In the oil and gas industry, safety valves are essential for safeguarding drilling rigs, refineries, and storage tanks. They protect against overpressure caused by equipment failure, fire, or other system anomalies.
Chemical Processing
In chemical plants, safety valves are used to prevent dangerous overpressure scenarios caused by reactions or temperature fluctuations. These valves are critical in protecting both the product and the people working in hazardous environments.
Why Safety Valves Are Important
Safety valves are critical for preventing accidents and ensuring the safe operation of industrial systems. Overpressure can cause severe damage to equipment, release hazardous materials, and result in catastrophic failures, including explosions or fires. The cost of such incidents, both in terms of human safety and financial losses, can be significant. By incorporating safety valves, companies can avoid potential risks and comply with safety regulations.
Some common scenarios where safety valves are essential include:
Pressure Regulator Failure
Pressure regulators are designed to maintain a set pressure, but they can sometimes fail, allowing pressure to rise uncontrollably. Safety valves act as a backup to prevent excessive pressure buildup in such cases.
Fire Exposure
Industrial facilities are often exposed to high temperatures, especially in the event of a fire. Heat can cause fluids to expand rapidly, increasing pressure in the system. Safety valves release the excess pressure, preventing damage to the equipment and reducing the risk of a catastrophic event.
Cooling System Failure
Cooling systems are essential in maintaining safe operational temperatures in many industrial processes. If a cooling system fails or ambient temperature increases unexpectedly, safety valves are necessary to release pressure caused by thermal expansion.
Fluid Expansion
In many systems, fluids expand when heated, which can lead to overpressure. A safety valve ensures that any excess pressure caused by fluid expansion is safely discharged.
Sizing and Selection of Safety Valves
The proper sizing and selection of a safety valve are critical for ensuring its effective operation. A valve that is too large or too small can fail to provide adequate protection, resulting in overpressure or unnecessary discharge.
When selecting a safety valve, consider the following factors:
Set Pressure
The set pressure is the point at which the valve opens. It should be chosen based on the maximum allowable pressure of the system or equipment.
Flow Capacity
The valve must be sized to handle the required flow rate of fluid to relieve pressure effectively. This is determined by factors such as system pressure, temperature, and the type of fluid involved.
Valve Material
The material of the safety valve must be compatible with the process fluid to prevent corrosion or material degradation. For example, a valve used with corrosive chemicals should be made from corrosion-resistant materials like stainless steel or alloys.
Service Conditions
The valve should be selected based on the specific conditions of the application, such as temperature range, pressure fluctuations, and potential backpressure.
Regulatory Requirements
Safety valves must comply with industry regulations and standards. This ensures that they provide the necessary protection and are capable of withstanding the operating conditions of the system.
Maintenance and Troubleshooting
Proper maintenance and regular inspection of safety valves are essential for ensuring their longevity and reliable operation. Key maintenance tasks include:
Inspection for Leaks
Regularly check the valve for leaks around the sealing area or body. Leaks may indicate wear or damage that requires repair or replacement of components like gaskets or seals.
Testing for Set Pressure
Perform periodic pressure testing to ensure the valve opens and closes at the correct set pressure. This helps identify any potential malfunctions or deviations from the desired performance.
Cleaning and Lubrication
Cleaning the valve mechanism and applying proper lubrication can help maintain smooth operation and prevent sticking or malfunctioning.
Component Replacement
Replace worn or damaged components, such as springs, seals, or diaphragms, to maintain the safety valve’s performance.
Welding and Repair
If the valve body or components are damaged, repair or replacement may be required. It is critical to ensure that repairs are carried out by qualified technicians.
Conclusion
Safety valves are vital components in industrial systems, ensuring the protection of equipment, systems, and personnel from the dangers of overpressure. By choosing the right valve for specific applications and maintaining it properly, industries can reduce the risk of catastrophic failures and maintain safe, efficient operations. Proper valve selection, sizing, and routine maintenance are essential for maximizing the performance and longevity of these crucial safety devices.
