Piston Check Valves: Operation, Installation, and Comparison
On this page
Introduction
Piston check valves play a critical role in industrial systems, where fluid control and flow regulation are essential for safe and efficient operation. As members of the check valve family, piston check valves are designed to allow fluid to move in only one direction, effectively preventing backflow that could compromise equipment or disrupt processes. Due to their unique design and operational features, piston check valves have become widely used across various industries, including oil and gas, chemical processing, and water treatment. In this article, we’ll delve into how piston check valves function, their installation requirements, operational considerations, and how they stack up against other types of check valves.
How Does a Piston Check Valve Work?

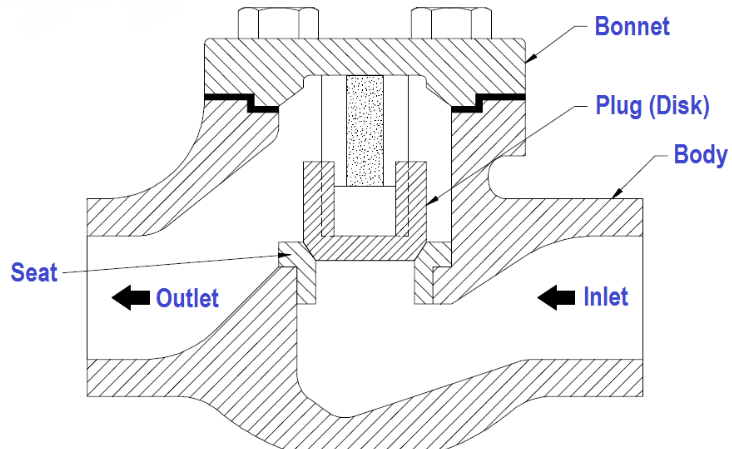

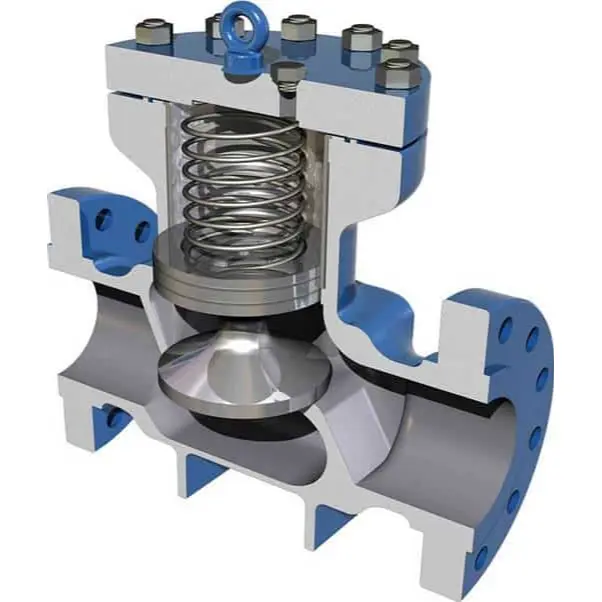

Piston check valves operate by utilizing a disc or piston that moves within a cylinder, regulating fluid flow through a pipeline. When fluid pressure flows in the intended direction, it lifts the piston, allowing fluid to pass. However, when fluid attempts to flow backward, the piston automatically closes, stopping the reverse flow. This movement is typically guided by either spring force or gravity, ensuring that the valve closes as soon as there is no forward pressure. This straightforward mechanism prevents fluid from backflowing, making piston check valves effective in various applications, especially where pressure fluctuations are common.One of the defining features of piston check valves is their ability to handle rapid and frequent changes in flow. Unlike other check valves, piston check valves are less prone to slamming, which is the sudden closure of the valve due to a rapid reversal in fluid flow. Slamming can lead to water hammer, a pressure surge that may damage pipelines and associated equipment. The smooth operation of a piston check valve minimizes this risk, making it a preferred choice for high-pressure applications.
Piston Check Valve Installation
Proper installation is vital to ensure the reliable function of a piston check valve. Before beginning installation, it’s important to ensure that the valve is compatible with the system's specifications, such as pressure, temperature, and flow rate. Here are some essential steps and considerations for a successful piston check valve installation:System Preparation
Start by shutting down the system to relieve any pressure in the pipeline. This precaution ensures safe handling and reduces the risk of accidental discharge during installation.
Orientation
Piston check valves are unidirectional, so it's essential to install them in the correct orientation. Most piston check valves have an arrow on the body indicating the flow direction, which should align with the desired fluid direction in the pipeline.
Pipe Alignment
Misaligned pipes can create stress on the valve body, leading to leaks and potential failure. Ensure that the pipeline is properly aligned before connecting the valve. Using appropriate gaskets, such as metallic or non-metallic gaskets based on the application, can help maintain a secure and leak-free seal.
Tightening
Avoid overtightening the bolts, as this can damage the valve. Use a torque wrench to tighten bolts to the manufacturer’s specifications, ensuring an even distribution of force around the valve’s flange.
System Testing
Once installed, test the system for leaks and confirm the valve’s proper operation. Gradually increase pressure and observe the valve’s response to ensure that it opens and closes smoothly without any obstructions.
Routine Maintenance
To ensure long-lasting performance, schedule periodic inspections. Regular maintenance includes checking for wear on the piston and inspecting for any potential buildup or blockages that could affect the valve’s efficiency.
Piston Check Valve Operation
The reliable operation of piston check valves is attributed to their simple yet effective design. However, understanding the specific dynamics of a piston check valve’s operation is essential to maximize its performance and ensure longevity.
Response to Flow Changes
Piston check valves are highly responsive to changes in flow direction. As forward flow pushes the piston up, the valve opens and allows passage. Conversely, when the flow stops or reverses, the piston automatically falls back, closing the valve. This automatic action requires minimal human intervention and enables quick response to prevent backflow.
Pressure Considerations
Piston check valves are well-suited for applications involving high-pressure systems. The design allows them to handle significant pressure without compromising their performance. However, excessive pressure or high-speed flow can increase wear on the valve’s internal components, so it’s important to operate within the manufacturer’s pressure limits.
Temperature Tolerance
Piston check valves are often available in materials such as stainless steel, brass, and other durable alloys, which allow them to withstand a wide range of temperatures. In high-temperature systems, piston check valves with materials designed for thermal stability are recommended to maintain reliability and performance.
Maintenance of Sealing Surfaces
The piston and seat form a critical seal in the closed position, preventing leaks and ensuring no reverse flow. Over time, however, these surfaces can wear due to continuous contact with the fluid. Regular maintenance, including cleaning and inspecting these surfaces, can help prolong the valve’s lifespan.
Suitability for Different Fluids
Piston check valves are versatile and can be used with various fluids, including gases, oils, and water. When selecting a valve, consider the fluid’s properties, such as viscosity and corrosiveness, as these factors influence the choice of valve material and design.
Piston Check Valve vs. Other Check Valves
When selecting a check valve, it’s useful to understand how piston check valves compare to other common types, such as swing check valves and ball check valves.
Swing Check Valves
Swing check valves use a hinged disc to control flow, allowing fluid to pass in one direction. While they are generally effective, swing check valves are slower to respond than piston check valves, making them less suitable for high-pressure systems. Additionally, swing check valves are more prone to slamming, which can cause water hammer issues in some applications.
Ball Check Valves
Ball check valves use a ball as the closure element, which moves up and down to open and close the valve. While ball check valves are simple and effective in low-pressure systems, they may not perform as reliably as piston check valves in high-pressure applications. The ball’s movement may be limited in high-viscosity fluids, making piston check valves a better choice for such fluids.
Lift Check Valves
Similar to piston check valves, lift check valves allow the disc to lift when fluid flows forward. However, they typically lack the guided mechanism found in piston check valves, which makes them less effective in applications with frequent or rapid pressure changes. Piston check valves offer superior stability and are preferred for systems requiring precise control.
Conclusion
Piston check valves serve as a robust solution for preventing backflow in a wide array of industrial applications. Their unique design enables smooth operation, high responsiveness to flow changes, and suitability for high-pressure environments. By following proper installation and maintenance procedures, piston check valves can provide reliable, long-term service in industries ranging from petrochemical to water treatment.
When compared to other types of check valves, piston check valves stand out for their ability to minimize water hammer and effectively handle varying pressures and flow conditions. Their versatility and performance characteristics make them a popular choice across many sectors. Selecting the right check valve for your system can lead to improved efficiency, enhanced equipment protection, and reduced maintenance needs.
