Introduction

Eccentric plug valves have emerged as a critical solution for industrial applications requiring precision, durability, and reliable flow control. Designed to handle abrasive, viscous, and corrosive fluids, these valves are ideal for a wide range of industries, including mining, petroleum refining, power generation, and the pulp and paper sector. This article delves into the unique design, working principles, and diverse applications of eccentric plug valves, highlighting why they are indispensable in modern industrial systems.

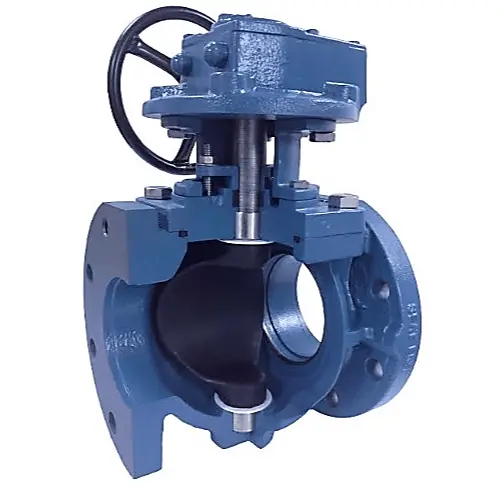

What Is an Eccentric Plug Valve?

An eccentric plug valve is a rotary control valve that features a plug-shaped flow restriction element. This plug follows an off-center, or eccentric, rotational path during operation. Unlike conventional plug valves, where the plug is in constant contact with the seat, the eccentric design ensures that the plug only contacts the seat during the final moments of closure.

This "camming" action dynamically aligns the seating surfaces for an exceptionally tight seal, reducing wear and tear. Often referred to as a rotary globe valve, this design combines the reliability of globe valves with the efficiency of rotary motion, making it a preferred choice for critical applications.

How Does an Eccentric Plug Valve Work?

Closed Position

In the closed state, the eccentric plug is tightly pressed against the valve seat, forming a secure seal. This ensures no fluid leakage, even under high-pressure conditions.

Opening the Valve

As the valve begins to open, the plug rotates away from the seat. Thanks to the eccentric design, this disengagement occurs immediately, minimizing friction between the plug and the seat. This feature is particularly beneficial for handling abrasive or viscous fluids, as it reduces the potential for damage to the sealing surfaces.

Flow Control

The valve’s quarter-turn motion enables precise adjustments to the flow rate. The plug's streamlined rotation ensures a smooth transition from closed to open, facilitating efficient and controlled fluid movement.

Closing the Valve

During closure, the plug returns to its seat, guided by the eccentric motion. The seating surfaces align perfectly to achieve a secure seal, maintaining the valve’s integrity even after repeated operations.

This unique mechanism offers several benefits, including reduced wear, extended service life, and reliable performance in demanding environments.

Key Features of Eccentric Plug Valves

Eccentric plug valves are designed to meet the challenges of modern industrial operations. Their standout features include:

1. Eccentric Design

The off-center plug ensures minimal contact with the seat, reducing friction and wear. This design enhances durability and lowers maintenance requirements.

2. High Performance Under Pressure

Capable of handling high-pressure fluids, these valves maintain their sealing efficiency even in extreme conditions.

3. Abrasion Resistance

With rugged construction and streamlined flow passages, eccentric plug valves resist wear caused by abrasive particles, making them ideal for slurry applications.

4. Energy Efficiency

The valve’s streamlined design minimizes turbulence and pressure drop, optimizing energy usage within the system.

5. Versatility

Available in various materials, sizes, and configurations, these valves can be customized to meet the specific needs of diverse industries.

6. Minimal Maintenance

The reduced wear on sealing components translates to longer service intervals and lower operational costs.

Common Applications of Eccentric Plug Valves

Eccentric plug valves find applications across industries where precision and durability are paramount. Here are some of the key sectors benefiting from these versatile valves:

1. Mining Industry

In mining operations, managing abrasive slurries and erosive fluids is a constant challenge. Eccentric plug valves excel in these conditions, offering reliable flow control and resistance to wear. Their robust construction ensures long-lasting performance in the harshest environments, reducing downtime and maintenance costs.

2. Petroleum Refining

Petroleum refining involves handling heavy, viscous, and potentially corrosive substances. Eccentric plug valves are well-suited for these demanding conditions. They provide precise flow control and exceptional sealing, making them indispensable for processes like crude oil handling, distillation, and cracking.

3. Power Generation

Power plants rely on eccentric plug valves to control critical fluids, including high-pressure steam and cooling water. Their ability to withstand extreme temperatures and pressures ensures safety and efficiency in power generation processes.

4. Pulp and Paper Industry

The pulp and paper industry often involves handling thick slurries, chemicals, and wastewater. Eccentric plug valves are an excellent choice for these applications, thanks to their streamlined flow passages and robust construction. They reduce the risk of clogging and provide consistent performance, even in challenging conditions.

5. Water and Wastewater Treatment

In water treatment facilities, eccentric plug valves are used to control the flow of raw water, chemicals, and treated effluents. Their corrosion-resistant materials and reliable sealing capabilities make them ideal for handling chemically aggressive fluids and high-pressure systems.

How to Choose the Right Eccentric Plug Valve

Selecting the appropriate eccentric plug valve involves evaluating several factors to ensure optimal performance and compatibility with your system:

1. Material Selection

The valve material must be compatible with the fluid being handled. For instance, stainless steel is suitable for corrosive environments, while hardened alloys are ideal for abrasive slurries.

2. Size and Flow Requirements

Choose a valve size that matches your pipeline and meets the desired flow rate. The quarter-turn motion of eccentric plug valves allows for precise control, but selecting the right size ensures efficient operation.

3. Pressure and Temperature Ratings

Ensure the valve can withstand the operating pressure and temperature conditions of your application.

4. End Connections

Determine the type of end connections (flanged, threaded, or others) required for compatibility with your existing piping system.

5. Maintenance Needs

Opt for valves with low maintenance requirements to reduce operational costs and improve system reliability.

6. Application Specifics

Consider the unique demands of your industry, such as the need for abrasion resistance in mining or corrosion resistance in water treatment.

The Future of Eccentric Plug Valves

As industries continue to evolve, the demand for efficient and durable flow control solutions is on the rise. Eccentric plug valves are expected to play a pivotal role in meeting these challenges, thanks to ongoing innovations in materials, design, and manufacturing processes.

Emerging trends, such as the integration of smart sensors and automation technologies, are enhancing the capabilities of eccentric plug valves. These advancements enable real-time monitoring, predictive maintenance, and improved system efficiency, making them an even more valuable asset in modern industrial systems.

Conclusion

Eccentric plug valves are a versatile and reliable solution for managing challenging fluid conditions in a wide range of industries. Their unique design, which minimizes wear and maximizes efficiency, sets them apart from conventional valve types.

Whether in mining, petroleum refining, power generation, or water treatment, eccentric plug valves deliver precise flow control, robust performance, and long-lasting durability. By understanding their features, working principles, and applications, industry professionals can make informed decisions when selecting the ideal valve for their specific needs.

As technology continues to advance, eccentric plug valves will undoubtedly remain a cornerstone of industrial flow control, helping industries achieve greater efficiency, reliability, and sustainability.
